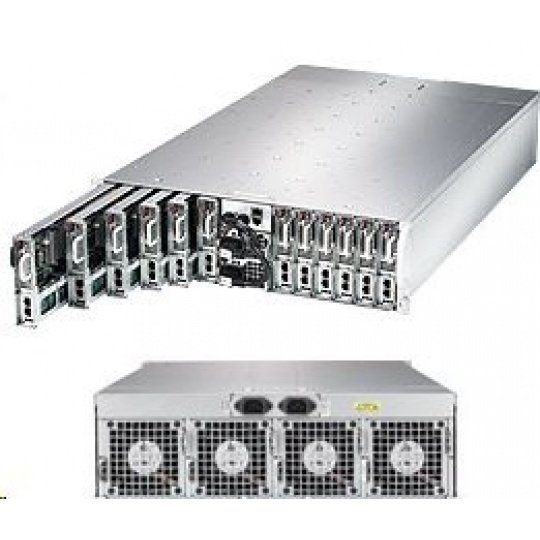

Coming Soon Key Features (per node) • Cloud Computing • Web Cache • Web Hosting, VM • Social Networking • Corporate-WINS, DNS, Print, Login 1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium® 2. 2x 3.5" SATA3 or 4x 2.5" SATA3 or 2x 2.5" NVMe + 2x 2.5" SATA3 or 2x 2.5" NVMe + 1x 3.5" SATA3 3. Up to 64GB DDR4 VLP ECC UDIMM 2133MHz support in 4 sockets 4. Dual-port 1GbE LAN (Intel i350) IPMI 2.0 via shared LAN 5. 2x USB 2.0, 1x VGA, 1x COM port, (with KVM dongle) 6. 1x USB 3.0 (Type A), 1x SATA DOM 7. 4x 9cm Heavy duty fans with optimal cooling zone 8. 2000W Redundant Titanium Level High-efficiency power supplies Product SKUs SuperServer SYS-5039MS-H12TRF (Black) Motherboard Motherboard MBD-X11SSE-F Processor/Cache CPU Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors CPU TDP up to 80W System Memory (per node) Memory Capacity 4x 288-pin DDR4 DIMM slots Supports up to 64 GB DDR4 VLP ECC Un-Buffered memory (UDIMM) Memory Type 2133MHz ECC DDR4 (VLP) SDRAM 72-bit, 288-pin gold-plated UDIMMs DIMM Sizes 16GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices (per node) Chipset Intel® C236 chipset SATA SATA3 (6Gbps) via C236 controller IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM over LAN support ASPEED AST2400 BMC Graphics ASPEED AST2400 Graphics (BMC with Graphic controller) Network Devices (per node) Micro-LP NIC Intel® i350 GbE controller Dual RJ-45 connectors Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Intel® I/O Acceleration Technology (I/O AT) MicroLP Adapter Matrix (Networking options) Input / Output (per node) SATA 6x SATA3 (6Gbps) ports LAN 2x RJ45 Gigabit Ethernet LAN ports IPMI via shared LAN port USB 2x USB 2.0 ports and 1x USB 3.0 Type A port DOM SATA DOM (Disk on Module) power connector support VGA 1x VGA port System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features DMI 2.3 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 Front Window (each node) Switch Power / UID Chassis Form Factor 3U Model CSE-939HS-R2K04B Dimensions and Weight Height 5.21" (132.5 mm) Width 17.5" (444.5 mm) Depth 29.5" (749.3 mm) Package 16.1" (H) x 28.35" (W) x 42.36" (D) Weight Net Weight: 132 lbs (59.87 kg) Net Weight w/ 2.5" HDDs: 115 lbs (52.16 kg) Net Weight w/ 3.5" HDDs: 132 lbs (59.87 kg) Gross Weight: 125 lbs (56.70 kg) Color Black Drive Bays (per node) Internal 2x 3.5"/2.5" SATA3 HDDs per node; up to 24x 3.5"/2.5" drives total OR 2x 2.5" NVMe + 2x 2.5" SATA3 drives per node; up to 48x 2.5" drives total Enterprise SATA HDD only recommended System Cooling Fans 4x 9cm Heavy duty fans with optimal cooling zone Power Supply with Digital Switching Control 2000W Titanium Level (96%) High-efficiency Redundant Power Supplies Total Output Power 1000W/1800W/1980W/2000W AC Input 100-127 V, 50-60 Hz 200-220 V, 50-60 Hz 220-230 V, 50-60 Hz 230-240 V, 50-60 Hz +12V Max: 83.3A & Min: 0A (100Vac-127Vac) Max: 150A & Min: 0A (200Vac-220Vac) Max: 165A & Min: 0A (220Vac-230Vac) Max: 166.7A & Min: 0A (230Vac-240Vac) 5V SB Max: 1A / Min: 0A Certification Titanium Level96% Titanium Level [ Test Report ] PC Health Monitoring CPU Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V FAN Cooling zone Temperature Monitoring for CPU and chassis environment Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
