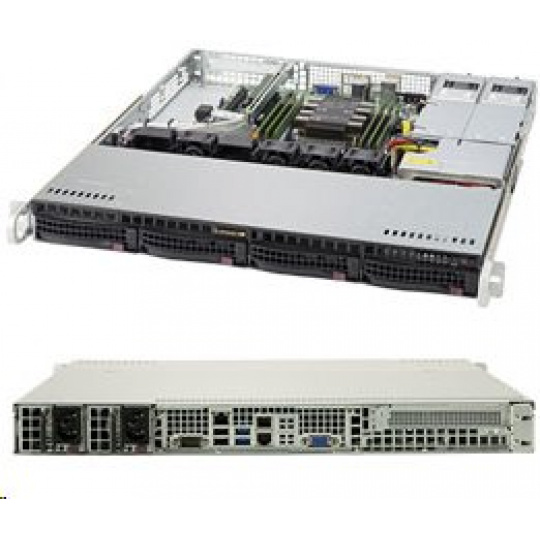

Key Features • Web Hosting, VM • Compact Network Appliance 1. Single socket P (LGA 3647) supports Intel® Xeon® Scalable Processors 2. Intel® C621 chipset 3. 4 Hot-swap 3.5" SATA3 bays w/ RAID 4. Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6 DIMM slots 5. 1 PCI-E 3.0 x16 slot (FH, HL) 6. 2x 1GbE with Marvell® 88E1512 7. Integrated IPMI 2.0 and KVM with Dedicated LAN 8. 1 VGA, 2 COM, 5 USB 3.0, 6 USB 2.0 9. 400W Redundant Platinum Power Supplies w/ BBP® option Drivers & Utilities BIOS IPMI Tested Memory OS Certification Matrix Drive Options Product SKUs SYS-5019P-MR SuperServer 5019P-MR (Black) Motherboard Super X11SPM-F Processor/Cache CPU Single Socket P (LGA 3647) Intel® Xeon® Scalable Processors Support CPU TDP 70-165W with IVR Cores Up to 28 Cores with Intel® HT Technology System Memory Memory Capacity 6 DIMM slots Up to 768GB ECC 3DS LRDIMM, 192GB ECC RDIMM, DDR4 up to 2666MHz Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM On-Board Devices Chipset Intel® C621 chipset SATA SATA3 (6Gbps) via C621 controller RAID 0, 1, 5, 10 support Network Controllers Dual Gigabit Ethernet LAN with Marvell® 88E1512 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Video ASPEED AST2500 BMC Input / Output SATA 4 SATA3 (6Gbps) ports LAN 2 RJ45 1GbE LAN ports 1 RJ45 Dedicated IPMI LAN port USB 4 USB 3.0 ports (2 front, 2 rear) 2 USB 2.0 ports (rear) Video 1 VGA port Serial Port / Header 2 COM ports (1 rear, 1 header) SuperDOM 2 SuperDOM (Disk on Module) ports with built-in power System BIOS BIOS Type AMI UEFI Management Software Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SPM, SUM SuperDoctor® 5 Watch Dog Power Configurations ACPI Power Management PC Health Monitoring CPU Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator FAN Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment Thermal Control for fan connectors Chassis Form Factor 1U Rackmount Model CSE-813MFTQC-R407CB Dimensions and Weight Height 1.7" (43mm) Width 17.2" (437mm) Depth 19.8" (503mm) Package 8.5" (H) x 24" (W) x 29.5" (D) Weight Gross Weight: 30.4 lbs (13.8 kg) Net Weight: 17.6 lbs (8 kg) Available Colors Black Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED Network activity LEDs System Overheat LED Expansion Slots PCI-Express 1 PCI-E 3.0 x16 slot (FH, HL) Drive Bays Hot-swap 4 Hot-swap 3.5" SATA3 drive bays M.2 Interface: PCIe 3.0 x4 Form Factor: 2242, 2280 Peripheral Drives Optional 1 Slim DVD-ROM drive 1 USB + COM port tray System Cooling Fans 4x 40x28mm PWM fans; 2x fans for AOC cooling Optional 2 fans for AOC cooling AC/DC240V Input Redundant Power Supplies 400W 1U Redundant Power Supplies with PMbus Total Output Power 400W Dimension (W x H x L) 54.5 x 40 x 220 mm Input 100 - 240Vac / 6.0 - 3.0A / 50-60Hz 200 - 240Vdc / 3.4 - 3.2A (CCC Only) +12V Max: 33A / Min: 0.5A +5V sb Max: 3A / Min: 0A Output Type Gold Finger Connector Mating with Molex 45984-4343 Certification Platinum Level Certified UL/cUL/CB/CE/BSMI/CCC Platinum Level Certified [ Test Report ] Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
