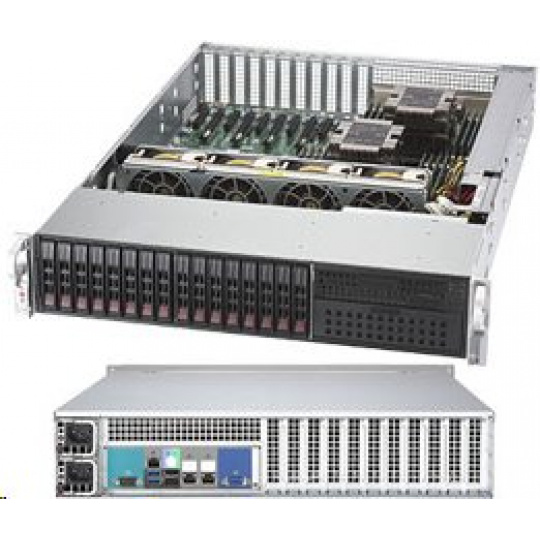

Key Features • Industrial Server Solutions • Networking Telephony • Surveillance DCR • GPU Pass-through VM server • Flash Array Server • Head-node Controller 1. Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡ 2. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM†† 3. 2 PCI-E 3.0 x16 slots, 2 PCI-E 3.0 x16 slots (or 4 PCI-E 3.0 x8), 4 PCI-E 3.0 x8 slots, 1 PCI-E 3.0 x4 (in x8 slot) 4. 16 Hot-swap 2.5" SAS/SATA drive bays, 1 slim DVD-ROM drive bay 5. 2x 10GBase-T ports via Intel X550-AT2 6. Integrated IPMI 2.0 with KVM and Dedicated LAN 7. 1 PCI-E 3.0 x4 M.2 2280 slot from PCH 8. 4 middle fans 9. 1000W Redundant Power Supplies Titanium Level (96%) Product SKUs SYS-2029P-TXRT SuperServer 2029P-TXRT (Black) Motherboard Super X11DPX-T Processor/Cache CPU Dual Socket P (LGA 3647) 2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)‡, 3 UPI up to 10.4GT/s Support CPU TDP 205W Cores Up to 28 Cores Note ‡ BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors System Memory Memory Capacity 16 DIMM slots Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM†† Memory Type 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. On-Board Devices Chipset Intel® C621 chipset SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10 Network Controllers Intel® X550-AT2 Dual Port 10GBase-T IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Graphics ASPEED AST2500 BMC Input / Output Serial ATA 8 SATA3 (6Gbps) ports LAN 2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port USB 2 USB 3.0 ports (rear) 2 USB 2.0 ports (rear) Serial Port / Header 1 COM port (rear) VGA 1 VGA port DOM 2 SuperDOM (Disk on Module) ports TPM 1 TPM 2.0 Header System BIOS BIOS Type AMI UEFI Management Software Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SSM, SPM, SUM SuperDoctor® 5 Power Configurations ACPI Power Management PC Health Monitoring CPU Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator FAN Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment Thermal Control for fan connectors Chassis Form Factor 2U Rackmount Model CSE-213XAC-R1K05LP Dimensions Width 17.2" (437mm) Height 3.5" (89mm) Depth 25.6" (650mm) Package 14.8" (H) x 27" (W) x 37.3" (D) Weight Net Weight: 36 lbs (16.4 kg) Gross Weight: 72 lbs (32.7 kg) Available Colors Black Front Panel Buttons Power On/Off button System Reset button LEDs Power status LED Hard drive activity LED Network activity LEDs System information (overheat/UID) LED Power fail LED Expansion Slots PCI-Express 2 PCI-E 3.0 x16 slots 2 PCI-E 3.0 x16 slots (or 4 PCI-E 3.0 x8 by MUX) 4 PCI-E 3.0 x8 slots 1 PCI-E 3.0 x4 (in x8 slot) Drive Bays Hot-swap 16 Hot-swap 2.5" drive bays 10 SATA3 ports by default Optional drive support: 16 SAS3 Note: optional storage card is required to support more than 10 drives Peripheral Bay Peripheral 1 slim DVD-ROM drive Backplane 1 SAS/SATA backplane System Cooling Fans 4 Middle fans PowerStick Power Supply 1000W 1U Redundant Power Supplies with PMBus Total Output Power 800W/1000W Dimension (W x H x L) 38 x 40 x 360 mm Input 100-127Vac / 9-7.5A / 50-60Hz 200-240Vac / 6-5A / 50-60Hz +12V Max: 66.7A / Min: 0A (100-127Vac) Max: 83A / Min: 0A (200-240Vac) +5Vsb Max: 4A / Min: 0A Output Type Gold Finger Connector (16 Power Pin, 14 Signal Pin) Certification Titanium Level Certified96% Titanium Level [ Test Report ] Operating Environment RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
