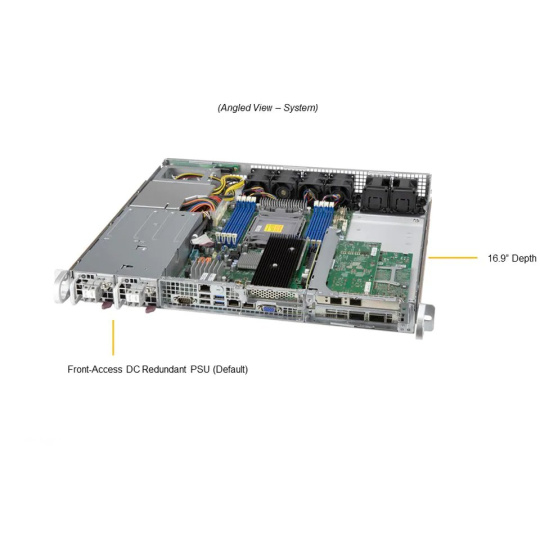

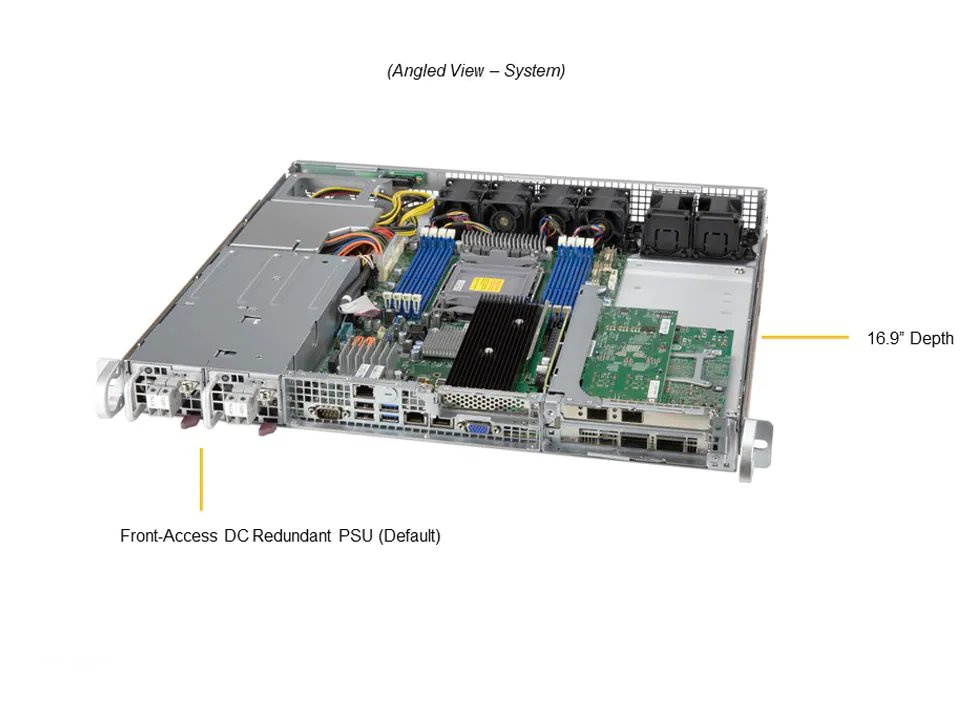

Key Applications Multi-Access Edge ComputingOutdoor DU of 5G ApplicationFlex-RAN, Open-RAN vBBU Key Features Socket P+ (LGA-4189) support 3rd Gen Intel® Xeon® Scalable processors 8 DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM 2x 2.5" drive bays; 1 M.2 NVMe OR 1 M.2 SATA3 6 heavy duty fans with optimal fan speed control; 1 Air Shroud(s) 600W Redundant Power Supplies Level (92%+) Product SKUs SuperServer SYS-110P-FDWTR (Silver) Motherboard Super X12SPW-TF Processor CPU Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Core Count Up to 32C/64T; Up to 48MB Cache per CPU Note Supports 85W - 205W TDP CPUs (Air Cooled) System Memory Memory Memory Capacity: 8 DIMM slots Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM Memory Voltage 1.2 V Error Detection ECC On-Board Devices SATA SATA3 (6Gbps); RAID 0/1 support Chipset Intel® C621A Network Connectivity 2x 10GbE BaseT port(s) IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Input / Output USB 2 USB 2.0 port(s) (2 front) 2 USB 3.2 port(s) (2 front) Video 1 VGA port(s) Management Software IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API Power Configurations ACPI Power Management Power-on mode for AC power recovery Security Hardware Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant Features Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown PC Health Monitoring CPU Monitors for CPU Cores, Chipset Voltages, Memory FAN Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature CPU thermal trip support, PEPI Monitoring for CPU and chassis environment Chassis Form Factor 1U Rackmount Model CSE-515B-R601W Dimensions and Weight Height 1.7" (44.5mm) Width 17.2" (436.88mm) Depth 16.9" (429.3mm) Package 8" (H) x 27" (W) x 24" (D) Weight Net Weight: 10 lbs (4.54 kg) Gross Weight: 15 lbs (6.8 kg) Available Color Silver Front Panel Buttons Power On/Off LEDs LAN1 activity LAN2 activity Power status Expansion Slots PCI-Express (PCIe) 1 PCIe 4.0 x16LP slot(s) 2 PCIe 4.0 x16 FHFL slot(s) Drive Bays / Storage Drive Bays 2x 2.5" SATA drive bays M.2 1 M.2 NVMe OR 1 M.2 SATA3 M-Key, 2280/22110 System Cooling Fans 6 heavy duty fans with optimal fan speed control Air Shroud 1 Air Shroud(s) Power Supply 600W Redundant Typical 90%+ Level power supplies Dimension (W x H x L) 54.5 x 40 x 220 mm 5V SB Max: 3A / Min: 0A Output Type Backplanes (gold finger) Certification Typical 90%+ Level [ Test Report ] Operating Environment Environmental Spec. Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
