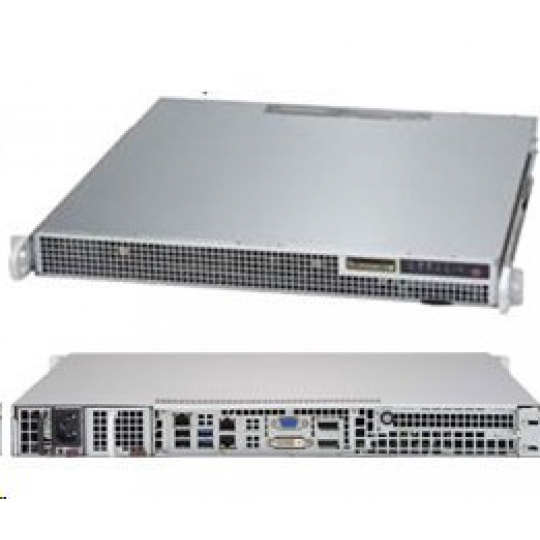

Key Features • Embedded, 7-year life cycle • Industrial Automation & Control • Military Compact Server • VOIP and Network Appliances • Medical Applications 1. Single socket H4 (LGA 1151) supports Intel® 6th Gen. Core i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® processors 2. Intel® Q170 Express chipset 3. 2x 2.5" Fixed drive bays 4. Up to 64GB Unbuffered Non-ECC UDIMM DDR4 2133MHz; 4 DIMM slots 5. 1x PCI-E 3.0 x16 (in x16) slot 6. 1x GbE LAN w/ Intel® i210-AT, 1x GbE LAN w/ Intel® PHY i219LM 7. Integrated IPMI 2.0 and KVM with Dedicated LAN, vPro supported 8. 2x DP, 1 DVI-I, Intel HD Graphics, with 3x independent displays, VGA for BMC AST2400 9. 400W Platinum Level Power Supply + Optional 2nd redundant 400W Power supply or Battery Backup Unit Product SKUs SYS-1019S-M2 SuperServer 1019S-M2 (Black) Motherboard Super X11SSZ-QF Processor/Cache CPU Intel® 6th Gen Core i7/i5/i3 series, Intel® Celeron®, Intel® Pentium® processors; CPU TDP support up to 80W TDP Single Socket H4 (LGA 1151) System Memory Memory Capacity 4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 Non-ECC UDIMM Memory Type 2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes 16GB, 8GB, 4GB Memory Voltage 1.2 V On-Board Devices Chipset Intel® Q170 Express chipset SATA SATA3 (6Gbps) via Intel® Q170 Express controller RAID 0, 1 support IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Audio RealTek ALC 888S High Definition Audio Video ASPEED AST2400 BMC and Intel HD Graphics 530 Input / Output SATA 2x SATA3 (6Gbps) ports; RAID 0, 1 LAN 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 2x USB 3.0 ports (2 rear) 3x USB 2.0 ports (2 rear + 1 Type A) Video/Display 2x DP (Display Port), 1x DVI-I from Intel® HD Graphics, 1x VGA from AST2400 3x Independent Displays from Processor Graphics, VGA is from AST2400 for BMC KVM Serial Port / Header 2x serial headers SuperDOM 1x SuperDOM (Disk on Module) ports with built-in power System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) DMI 2.3 PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 3.0 UEFI 2.3.1 RTC (Real Time Clock) Wakeup Management Software AMT IPMI 2.0 with KVM support NMI vPro Watch Dog SuperDoctor® 5 Power Configurations ACPI Power Management Keyboard Wakeup from Soft-Off CPU Fan auto-off in sleep mode Power-on mode for AC power recovery Chassis Form Factor 1U Rackmount Model CSE-514-407C-1P Dimensions and Weight Height 1.7" (43mm) Width 17.2" (437mm) Depth 16.9" (429mm) Package 8" (H) x 24" (W) x 24" (D) Weight Gross Weight: 30.4 lbs (13.8 kg) Net Weight: 17.6 lbs (8 kg) Available Colors Black Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Expansion Slots PCI-Express 1x PCI-E 3.0 x16 (in x16) slot Drive Bays Internal 2x 2.5" Fixed SATA3 drive bays System Cooling Fans 4x 40x56mm PWM fan; 2x fans for AOC cooling Power Supply 400W Platinum level power supply with PMBus and I2C AC Input 400W: 100-240 V, 50-60 Hz DC Output +5V standby 3 Amp DC Output +12V 33 Amp Certification Platinum Level Certified Platinum Level PC Health Monitoring Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. FAN Total of 6 fan headers supporting up to 6 fans 6 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI LED CPU / System Overheat LED Suspend static indicator LED UID/Remote UID Other Features Chassis intrusion detection Chassis intrusion header RoHS, Halogen Free Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 0°C to 35°C (32°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
