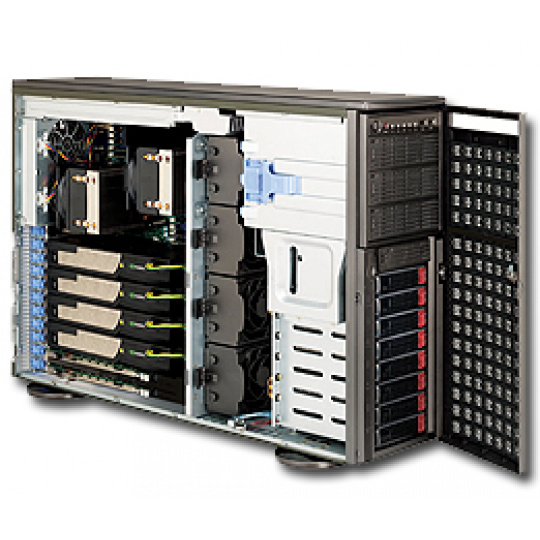

Key Features • Supports up to 4 Double-Width GPU 1. Dual Intel® 5500 series Xeon® Quad/ Dual-Core, with QPI up to 6.4 GT/s 2. Up to 96GB DDR3 1333/ 1066/ 800MHz ECC Registered DIMM / 24GB Unbuffered DIMM 3. 4 (x16) PCI-E 2.0, 2 (x4) PCI-E 2.0 (in x16 slots), 1 (x4) PCI-E (in x8 slot), 2x PCI 33MHz slots 4. Intel® Dual 82574L Gigabit Ethernet 5. 8 x 3.5" Hot-swap Drives Trays Supports up to 6 SATA Drives 6. 1400W Gold Level Redundant Power Supply 7. Tower or Rackmount 8. 4x Nvidia Tesla C1060 GPU Cards Product SKUs SYS-7046GT-TRF-TC4 SuperServer 7046GT-TRF-TC4 (Black) Motherboard Super X8DTG-QF Processor/Cache CPU Dual 1366-pin LGA Sockets Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: Quad-Core Intel® Xeon®Processor 5500 sequence (Nehalem-EP processor) QPI up to 6.4 GT/s System Memory Memory Capacity 12x 240-pin DIMM sockets Supports up to 96 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory Supports up to 24 GB 1333 / 1066 / 800MHz DDR3 ECC Unbuffered memory Memory Mirroring supported Memory Type 1333 / 1066 / 800MHz ECC Registered / ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes 1GB, 2GB, 4GB, 8GB Memory Voltage 1.5 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 and x8 Single Device Data Correction (SDDC) On-Board Devices GPU 4x Nvidia Tesla C1060 GPU Cards Chipset Dual Intel® 5520 (Tylersburg) chipset ICH10R SATA Intel ICH10R SATA 3.0Gbps Controller RAID 0, 1, 5, 10 support Network Controllers Intel® Dual 82574L Gigabit Ethernet Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Intel® I/OAT 3 support for fast, scaleable, and reliable networking VMDq support for better performance of virtualization Graphics Matrox G200eW Super I/O Winbond 83827HF chip Expansion Slots PCI-Express 4 (x16) PCI-E 2.0 slots 2 (x4) PCI-E 2.0 (in x16 slots) 1 (x4) PCI-E (in x8 slot) PCI 2x 33MHz PCI slots Input / Output Serial ATA Six Serial ATA ports Six SATA hard drives supported LAN 2x RJ45 LAN ports USB 4x USB rear ports 2x USB on-board 1x USB internal header - 2 ports Total 8 USB 2.0 Compliant VGA 1x VGA Port Keyboard / Mouse PS/2 keyboard and mouse ports Serial Port / Header 1 Fast UART 16550 serial port 1 Fast UART 16550 serial header (Option) System BIOS BIOS Type 32Mb SPI Flash EEPROM with AMI® BIOS BIOS Features Plug and Play (PnP) PCI 2.2 ACPI up to 3.0 USB Keyboard support Chassis Form Factor 4U Rackmountable / Tower Optional Rackmount Kit Model CSE-747TQ-R1400B Dimensions Height 7" (178mm) Width 17.8" (452mm) Depth 26.5" (673mm) Gross Weight 72 lbs (32.7kg) Package 38.6" x 26.6" x 17.4" Available Color Dark Gray Front Panel Buttons LED Power On/Off button System Reset button LEDs Hard drive activity LED 2x Network activity LEDs System Overheat LED Power Fail LED Ports 2x Front side USB Ports Drive Bays Hot-swap 8x 3.5" Hot-swap SAS/SATA Drive Bays Supports up to 6 SATA Drives Peripheral Bay(s) 3x 5.25" drive bays in storage module - rotates 90° for Rackmount 1x 3.5" fixed drive bay SAS / SATA Backplane SAS / SATA Hard Drive Backplane with SES2 System Cooling Fans 4x 5000 RPM Hot-swap Cooling Fans 2x 5000 RPM Hot-swap Rear Exhaust Fan Power Supply 1400W high-efficiency power supply with PMBus AC Input 1100W: 100 - 140V, 50 - 60Hz, 9.5 - 13.5 Amp 1400W: 180 - 240V, 50 - 60Hz, 7.0 - 9.5 Amp DC Output +5V standby 4 Amp DC Output +12V 92 Amp @ 100-140V 116 Amp @ 180-240V With Distributor +5V: 30 Amp +3.3V: 24 Amp -12V: 0.6 Amp Certification 80 PLUS Gold Certified [ Test Report ] PC Health Monitoring CPU Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages. 6-Phase-switching voltage regulator FAN Total of eight fan headers supporting up to 8 fans Eight 4-pin fan headers 8x fans with tachometer status monitoring Support 3-pin fans (w/o speed control) Low noise fan speed control Temperature Monitoring for CPU and chassis environment Thermal Control for 8x fan connectors PECI Other Features Chassis intrusion detection Chassis intrusion header Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10°to 35°C (50°to 95°F) Non-operating Temperature: -40°to 70°C (-40°to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5 to 95% (non-condensing) Parts List - (Items Included) Part Number Qty Description Motherboard / Chassis MBD-X8DTG-QF CSE-747TQ-R1400B 1 1 Super X8DTG-QF Motherboard 4U Chassis Add-On Card AOC-GPU-NVC1060 4 NVIDIA C1060 TESLA GPU/ACTIVE HEATSINK Backplane BPN-SAS-747TQ 1 Sup 8x SAS/SATA hdd; SATA con Cable 1 CBL-0061L 6 35CM, SATA CABL
