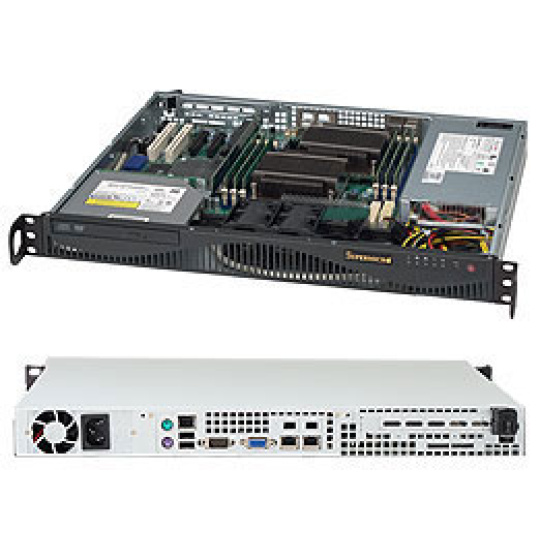

Key Features 1. 350W High-efficiency Power Supply 80 PLUS, Gold Level Certified 2. 2x 3.5" Internal Drive Bays 3. 1x Slim DVD-ROM Drive (optional) 4. 2x Counter-rotating Fans 5. 1x I/O Expansion Slot 6. Power Switch, Reset, and 5x LED Indicators Product SKUs CSE-512F-350B SuperChassis 512F-350B (Black) Form Factor 14.5" Mini 1U chassis support for max. motherboard size - 12" x 10" ATX Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 1.7" (43mm) Width 17.2" (437mm) Depth 14.5" (369mm) Packaging 22" (W) x 6.3" (H) x 20" (L) Gross Weight 14 lbs (6.4kg) Available Colors Black Expansion Slot 1x full-height half-length expansion slot (Riser Card Required) Drive Bays Internal Bay 2x 3.5" internal drive bays SAS or enterprise SATA HDD only recommended Peripheral Drives DVD-ROM Slim DVD-ROM Drive (optional) Front Panel Buttons Power On/Off button Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED System Cooling Fans 2x 4cm 4-pin PWM Fans Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 350W AC power supply w/ PFC AC Voltage 100-240 V, 50-60 Hz, 4.2-1.8 Amp +5V 18 Amp +5V standby 3 Amp +12V 29 Amp +3.3V 15 Amp Certification 80 PLUS Gold Certified [ Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant Standard Parts List Part Number Qty Description Chassis CSE-512F-350B 1 14" Mini 1U Chassis (Black) Power Supply PWS-351-1H 1 1U 350W MULTI OUTPUT 80PLUS GOLD PWS Cable 1 CBL-0156L 1 Front ctrl cable Round 16pin to 16pin, 40cm, PBF Cable 2 CBL-0260L 1 US power cord 18AWG 6ft, PBF (default for low watt) Cable 3 CBL-0261L 1 40CM 7PIN SATA CABLE S-RA for SC512,512L, PBF Cable 4 CBL-0262L 1 4PIN TO 1xSATA(RA)+1x4PIN(RA)+1xFPD PWS EXT. CBL Peripheral Drive MCP-290-00006-01 1 Black DVD dummy cover for SC512, RoHS Fan FAN-0087L4 2 40x56,4 Pin PWM Fan Front Panel MCP-280-51201-0N 1 Front control board (FP512) for SC512 (surface-mounted LED) Fan Holder MCP-320-00003-01 1 Fan holder of two 40x40x56mm fans for SC512F-280 Part(s) MCP-260-00024-0N 1 1U I/O shield for X8 server MB (3rd LAN + 4xLAN) Part(s) MCP-290-00005-01 2 Black chassis handle for SC512F-520 Optional Parts List Part Number Qty Description Cable CBL-0084L - Front control cable 16-pin split convertor 6", PBF Hard Drive Bracket MCP-220-00051-0N MCP-220-00044-0N - - Single 2.5" fixed HDD mounting bracket Dual 2.5" fixed HDD mounting bracket (only w/o DVD) Mounting Rails MCP-290-00004-03 - 25.6" to 33.05" chassis rail set for SC512F Quick Release Rails MCP-290-00055-0N MCP-290-00056-0N - - 25.6" to 33.05" chassis rail set, screw/quick, for SC512F 19" to 26.4" outer rail, /quick, for 1U 17.2" W chassis Peripheral Drives DVM-TEAC-824B DVM-PNSC-824B DVM-TEAC-DVD-SBT1 DVM-PNSC-DVD-SBT1 - - - - Black slim IDE DVD (8x DVD, 24x CDR), TEAC Black slim IDE DVD (8x DVD, 24x CDR), Panasonic Black slim SATA DVD (8x DVD, 24x CDR), TEAC Black slim SATA DVD (8x DVD, 24x CDR), Panasonic Heatsink / Retention - - Please refer to our Thermal Components Matrix Terms & Conditions | Privacy | Investor Relations | Jobs | Site Map
