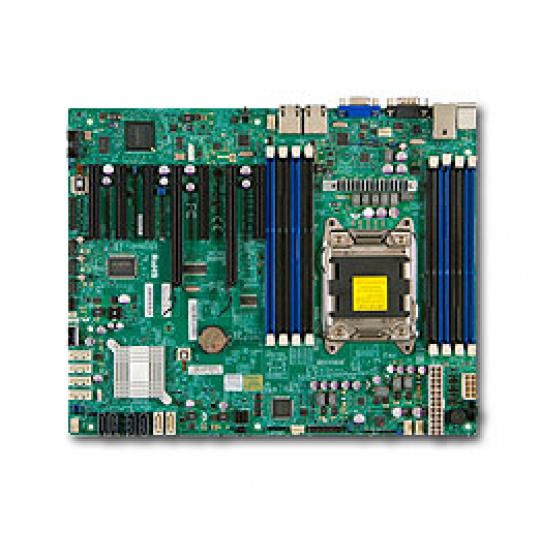

Supermicro Motherboard Xeon X10SRLF Single socket R (LGA 2011-R3) Intel® Dual Port Gigabit Ethernet

Key Features 1. Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 and E5-1600 v3 family 2. Intel® C612 chipset 3. Up to 512GB ECC DDR4 2133MHz LRDIMM; 8x DIMM slots 4. 7x PCI-E slots total: 2 PCI-E 3.0 x8, 2 PCI-E 3.0 x8 (in x16), 2 PCI-E 3.0 x4 (in x8) or 1 x8 + 1 x0 (auto... viac
284.38 € bez DPH
Na dotaz
341.26 €
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Kód: i286_S9X10SRLF
EAN: 672042156115
Záruka: 24 mes.
Výrobca: Supermicro
Popis a parametre

Supermicro Motherboard Xeon X10SRLF Single socket R (LGA 2011-R3) Intel® Dual Port Gigabit Ethernet

Key Features 1. Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 and E5-1600 v3 family 2. Intel® C612 chipset 3. Up to 512GB ECC DDR4 2133MHz LRDIMM; 8x DIMM slots 4. 7x PCI-E slots total: 2 PCI-E 3.0 x8, 2 PCI-E 3.0 x8 (in x16), 2 PCI-E 3.0 x4 (in x8) or 1 x8 + 1 x0 (auto-switch), & 1 PCI-E 2.0 x4 (in x8) 5. Intel® i210 Dual port GbE LAN 6. 10x SATA3 (6Gbps) via C612 7. 1x VGA, 2x COM, 1x TPM 8. 4x USB 3.0 ports, 8x USB 2.0 ports 9. 2x SuperDOM with built-in power Links & Resources Tested Memory List Motherboard Manual Update Your BIOS IPMI Firmware Download the Latest Drivers and Utilities Download Driver CD Heat Sink Compatibility OS Compatibility RoHS 6/6 Product SKUs MBD-X10SRL-F -B X10SRL-F (Bulk Pack) Physical Stats Form Factor ATX Dimensions 12" x 9.6", (30.5cm x 24.4cm) Processor CPU Intel® Xeon® processor E5-2600/1600 v3 family (up to 145W TDP **) Single Socket R3 (LGA 2011) Core / Cache Up to 18 Cores / Up to 45MB Cache Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support System Memory Memory Capacity 8x 288-pin DDR4 DIMM slots Up to 512GB DDR4 ECC LRDIMM Up to 256GB DDR4 ECC RDIMM Memory Type 2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM/LRDIMM) / 284-pin gold-plated DIMMs DIMM Sizes RDIMM: 32GB, 16GB, 8GB, 4GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel C612 Express chipset SATA SATA3 (6Gbps) via C612 controller RAID 0, 1, 5, 10 support IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers Intel® i210 Dual Port Gigabit Ethernet Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Graphics ASPEED AST2400 BMC Input / Output SATA 10x SATA3 (6Gbps) ports LAN 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 4x USB 3.0 ports (2 rear + 1 via header + 1 Type A) 8x USB 2.0 ports (2 rear + 6 via header) Video 1x VGA port Serial Port / Header 1x serial port, 1x header SuperDOM 2x SuperDOM (Disk on Module) ports with built-in power TPM 1x TPM 1.2 20-pin Header OS Compatibility • Please reference the OS Compatibility Chart for details Chassis (Optimized for X10SRL-F ) 1U Chassis: SC813MFTQ-441CB SC813MFTQ-R400CB SC813MFTQ-R606CB SC813MFTQ-R606CB 2U Chassis: SC213LT-600LPB SC823TQ-653LPB SC825TQ-R720LPB SC826TQ-R500LPB 3U Chassis: SC833T-653B SC836BE1C-R1K03B Mid/Mini Tower Chassis: SC732D4F-903B SC732I-500B 4U / Tower Chassis: SC743T-665B SC842i-500B SC842TQ-665B SC842TQ-865B Important Chassis Notes To support the new generation Intel® Xeon® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details. Expansion Slots PCI-Express 2x PCI-E 3.0 x8 (in x16) slots 2x PCI-E 3.0 x8 slots 2x PCI-E 3.0 x4 (in x8) slots Auto-switch to 1 x8 and 1 x0 1x PCI-E 2.0 x4 (in x8) slot System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 UEFI 2.3.1 RTC (Real Time Clock) Wakeup Management Software Intel® Node Manager IPMI 2.0 with KVM support SuperDoctor® 5 Watch Dog NMI SPM SUM Power Configurations ACPI Power Management Keyboard Wakeup from Soft-Off CPU Fan auto-off in sleep mode Power-on mode for AC power recovery PC Health Monitoring Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. FAN Total of 6 fan headers supporting up to 6 fans 6 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI LED CPU / System Overheat LED Suspend static indicator LED UID/Remote UID Other Features Chassis intrusion detection Chassis intrusion header Chipkill support RoHS, Halogen Free Parts List (Bulk Package) Part Number Qty Description Motherboard MBD-X10SRL-F 1 X10SRL-F Motherboard I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket

Supermicro Motherboard Xeon X10SRLF Single socket R (LGA 2011-R3) Intel® Dual Port Gigabit Ethernet
