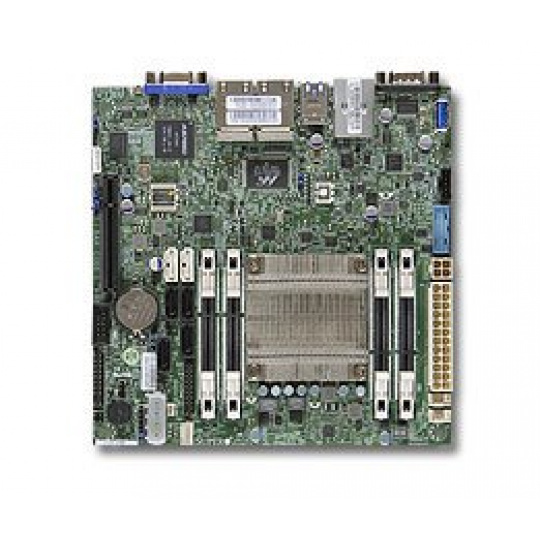

opis produktu: 1. Intel® Atom processor C2750, SoC, FCBGA 1283, 20W 8-Core 2. Up to 32GB DDR3 1600MHz ECC SO-DIMM in 4 DIMM sockets 3. Quad GbE LAN ports 4. IPMI with dedicated LAN 5. 2x SATA3 and 4x SATA2 ports 6. 1x PCI-E 2.0 x8 slot 7. 4x USB 3.0 (2 rear, 1 via header, 1 Type A), 2x USB 2.0 ports (rear) 8. 1x SATA DOM power connector, 2x fast UART 16550 serial (1 rear, 1 header), TPM 1.2 onboard Header 9. Operating Temperature: 0°C - 60°C Physical Stats Form Factor Mini-ITX Dimensions 6.75" x 6.75" (17.145cm x 17.145cm) Processor/Cache CPU Intel® Atom™ Processor C2750 CPU TDP 20W (8-Core) FCBGA 1283 System-on-Chip System Memory Memory Capacity 4x 204-pin DDR3 SO-DIMM socket Supports up to 32GB DDR3 ECC memory Memory Type 1600/1333MHz ECC DDR3 SDRAM, 204-pin gold-plated DIMMs DIMM Sizes 8GB, 4GB, 2GB Memory Voltage 1.5 V, 1.35 V On-Board Devices SATA C2000 SoC SATA3 (6Gbps), SATA2 (3Gbps) Network Controllers C2000 SoC Quad GbE controllers (MACs) Marvell® Alaska® 88E1543 Gigabit Ethernet Transceiver Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output USB 3.0 Renesas uPD720201 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST 2400 BMC Video BMC integrated Aspeed AST2400 Input / Output Serial ATA 2x SATA3 (6Gbps) ports 4x SATA2 (3Gbps) ports LAN 4x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 4x USB 3.0 ports (2 rear, 1 Type A, 1 via header) 2x USB 2.0 ports (2 rear) Serial Port 2x Fast UART 16550 Serial Port (1 rear, 1 via header) DOM 1x SATA DOM (Disk on Module) power connector VGA 1x VGA Port Others TPM 1.2 header Chassis ( Optimized for A1SAi-2750F ) 1U Chassis CSE-504-203B CSE-505-203B Mini-iTX Chassis CSE-101i Expansion Slots PCI-Express 1x PCI-E 2.0 x8 slot System BIOS BIOS Type 64Mb SPI Flash EEPROM with AMI UEFI BIOS BIOS Features Plug and Play (PnP) DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI Management Software SuperDoctor® III Watch Dog NMI Power Configurations ACPI / ACPM Power Management Main Switch Override Mechanism PC Health Monitoring Voltage Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +5V Standby, VBAT, Memory Voltages. FAN Total of 3x 4-pin fan headers 3x fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support LED System Overheat LED Other Features Chassis intrusion detection Chassis intrusion headerELD
