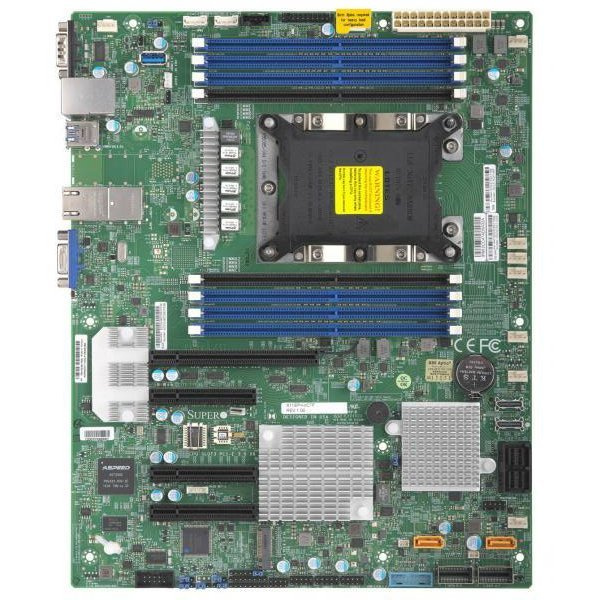

Supermicro main board server MBD-X11SPH-NCTF-O/3 years warranty, Single Socket P (LGA 3647), 8x 288-pin DDR4 DIMM slots, 2x 10GbE LAN ports, 10 SATA3 (6Gbps) via C622, 8 SAS3 (12Gbps) via Broadcom 3008; RAID 0, 1, 10 Procesor Chipset: Intel C622 CPU SECC standart: Socket 3647 Supports Central Processor Unit: Intel Xeon Scalable CPU Maximum Quantity Supports: 1 Main Board Server - Memory Typ pamäte: DDR4 SDRAM Obsahuje ECC: ECC Memory Speed: 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) Form factor paměti: DIMM 288-pin Maximální velikost systémové paměti: 2 TB Memory Slot Total Quantity: 8 Memory Features: Registered Load Reduced Controller Integrovaný: Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 SATA III-600 (10) PCIe 3.0 x4/SATA (1 x M.2) Storage Controller: PCIe NVMe 3.0 x4 (2 x OCuLink) Storage Controller: Broadcom 3008 Supports: Level 0, Level 1, Level 10 SAS 3 (8) VIDEO VÝSTUP Video Controller Integrated: Áno Video chipset: Aspeed AST2500 SIEŤOVÉ ŠPECIFIKÁCIE LAN Integrated: Áno LAN Chipset: Intel X772 + Intel X557 Data Link Protocol Supports: 10 Gbps Slot Provided PCI Express 3.0 x16: 1 PCI Express 3.0 x8: 2 PCI Express 3.0 x4: 1 Poskytnuté rozhranie USB 2.0: 2 (USB 2.0 (type A)) USB 3.0: 2 (USB 3.0 (type A)) VGA: 1 (15-pin D-sub) Serial: 1 (9-pin) LAN: 2 (RJ-45) Main Board Server - Mainboard Features BIOS Type: AMI BIOS Features: SMBIOS 3.0 Support UEFI RTC Wakeup ACPI 6.0 Support Hardware Monitoring: System Temperature System Voltage Main Board Server - Software Software Included: Watch Dog NMI IPMI 2.0 Supermicro Super Doctor 5 Intel Node Manager Supermicro Power Manager (SPM) Supermicro Update Manager (SUM) Main Board Server - Environment Maximální provozní teplota okolí: 50 °C Minimální provozní teplota okolí: 0 °C Maximální provozní vlhkost: 90 % Minimální provozní vlhkost: 8 % Main Board Server - Dimensions&Weight Forma: ATX Vyska (mm): 243.8 mm Šírka (mm): 304.8 mm Rôzne Vrátane kábla: 2 x SATA Data Cables Dodávané príslušenstvo: I/O Shield
