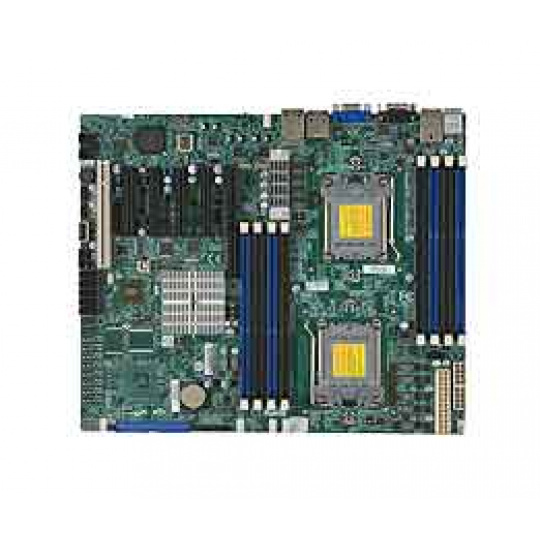

Key Features 1. Dual AMD Opteron™ 4100 Series processors (Socket C32) 6/4-Core ready; HT3.0 Link support 2. AMD SR5690 + SP5100 Chipset 3. Up to 128GB of DDR3 Registered ECC 1333/1066/800 or 32GB of DDR3 Unbuffered ECC/non-ECC SDRAM in 8 DIMMs 4. Dual Intel® 82574 Gigabit Ethernet Controller 5. 6x SATA (3.0 Gb/s) ports via AMD SP5100 controller, RAID 0, 1, 10 6. 1/3/1/1 PCI-E 2.0 x8 in x16/x8/x4 in x8/PCI expansion slot 7. Integrated Matrox G200eW Graphics 8. Integrated IPMI 2.0 with Dedicated LAN Links & Resources Tested Memory List Tested HDD List Motherboard Manual Update Your BIOS IPMI Firmware Download the Latest Drivers and Utilities Product SKUs MBD-H8DCL-iF H8DCL-iF (Standard Retail Pack) Physical Stats Form Factor ATX Dimensions 12" x 10" Processor/Chipset CPU Dual 1207-pin Socket C32 Supports two Six/Four-Core ready AMD Opteron™ 4100 Series processors HT3.0 Link support Chipset AMD chipset SR5690 + SP5100 System Memory Memory Capacity 8 DIMM sockets Support up to 128GB of DDR3 Reg. ECC 1333/1066/800 or 32GB of DDR3 Unb. ECC/non-ECC Dual channel memory bus For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks See Detailed Memory Support Matrix Memory Type Registered ECC or unb. ECC / non-ECC DDR3 1333/1066/800 MHz SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes 16GB, 8GB, 4GB, 2GB, 1GB Memory Voltage 1.35V or 1.5V On-Board Devices SATA AMD SP5100 (RAID 0, 1, 10) IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM over LAN support Winbond® WPCM450 BMC Network Controllers 2 Intel® 82574L single-port Gigabit Ethernet Controllers 10/100/1000BASE-T support VGA Matrox G200eW 16MB DDR2 Super I/O Winbond® W83527 chip Input / Output SATA 6x SATA (3Gb/s) ports LAN 2 RJ45 LAN ports 1 RJ45 Dedicated LAN supports IPMI USB 7x USB 2.0 ports 2 rear, 1 Type-A, 2 headers for 4 ports VGA 1x VGA port Serial Ports 2x Fast UART 16550 serial port (one header & one port) Power SSI 24-pin + 8-pin + 8-pin power connectors / EPS12V Note: Two 8-pin connectors are required to support 2 CPUs due to SSI spec Expansion Slots PCI-E 1/3/1/1 PCI-E 2.0 x8 in x16/x8/x4 in x8/PCI Chassis (Optimized for H8DCL-iF ) 3U/Mid Tower CSE-835TQ-R920B CSE-936A-R900B CSE-936A-R1200B CSE-732i-500B Tower/4U Rackmount CSE-743TQ-865B CSE-743TQ-865B-SQ CSE-743TQ-R760 CSE-745TQ-800B CSE-745TQ-920B CSE-745TQ-R800B CSE-842TQ-665B CSE-846A-R1200B CSE-846E1-R900B CSE-846E16-R1200B CSE-846E2-R900 CSE-846E26-R1200B Recommendation: 1. Strongly suggest using SuperMicro recommended chassis 2. Active Heatsink SNK-P0024AP4 is recommend used on tower and 4U chassis System BIOS BIOS Type 16Mb SPI Flash ROM with AMI® BIOS BIOS Features Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 2.0 USB Keyboard Support SMBIOS 2.3 Management Software IPMI (Intelligent Platform Management Interface) 2.0 Super Doctor III Power Configurations ACPI Power Management Wake-On-LAN (WOL) header Keyboard Wakeup from Soft-Off Power-on mode control for AC power loss recovery PC Health Monitoring CPU Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, VBAT, HT, memory, chipset CPU switching voltage regulator FAN Up to 6-fan status tachometer monitoring Up to 6x 4-pin fan headers Status monitor for speed control 4-pin fan support (w/o speed control) Low noise fan speed control (4-pin fan only) Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 8x Fan connectors I2C Temperature Sensing Logic LED CPU / System Overheat LED +5V Standby Alert LED Other Features Chassis Intrusion Detection Chassis Intrusion Header Operating Environment / Compliance RoHS RoHS Compliant 5/6, Pb Free Environmental Specifications Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) OS Compatibility • Please see our OS Compatibility Chart Regulatory FCC Passed to meet FCC standard requirement Retail Pack List Part Number Qty Description H8DCL-iF MBD-H8DCL-iF -O 1 H8DCL-iF Motherboard Retention BKT-0012L 2 RETENTION MODULE FOR AMD CPU SOCKET F,ROHS I/O Cable 1 CBL-0044L 6 57.5CM SATA FLAT S-S PBF I/O Cable 2 CBL-0083L 1 15.7" USB 2.0 2-PORT W/KEY I/O Cable 3 CBL-010L 1 9 PIN SERIAL PORT DTK CABLE, LF I/O Cable 4 CBL-036L-03 1 18" ATA 133/100/66 3-DROP TPE CABLE, PBF Driver Disk CDR-APLUS2 1 DRIVER CD FOR AMD SP5100 CHIPSET MB I/O Shield MCP-260-00027-0N 1 STD I/O SHIELD FOR X8, H8, X7SB3 SERVER MB (3RD LAN + 4XLAN)
