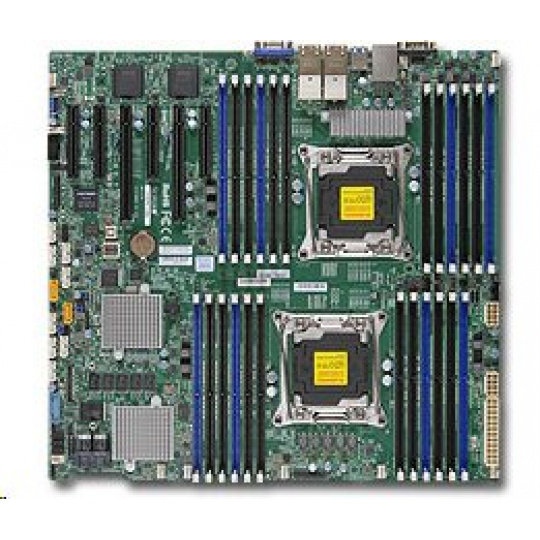

roduct SKUs MBD-X10DRi-T4+ -B X10DRi-T4+ (Bulk Pack) Physical Stats Form Factor Enhanced Extended ATX Dimensions 13.68" x 13" (34.74cm x 33cm) Processor/Cache CPU Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP **) Dual Socket R3 (LGA 2011) Cores / Cache Up to 18 Cores / Up to 45MB Cache System Bus QPI up to 9.6 GT/s Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support. System Memory Memory Capacity 24x 288-pin DDR4 DIMM sockets Up to 1.5TB ECC LRDIMM, 768GB ECC RDIMM Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C612 Express chipset SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers Intel® X540 Quad Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output Video ASPEED AST2400 BMC Input / Output SATA 10x SATA3 (6Gbps) ports LAN 4x RJ45 10GBase-T ports 1x RJ45 Dedicated IPMI LAN port USB 3x USB 3.0 ports (2 rear + 1 Type A) Video 1x VGA port Serial Port / Header 2x Fast UART 16550 serial 2x COM Ports (1 rear, 1 header) DOM 2x SuperDOM (Disk on Module) ports TPM 1x TPM 1.2 20-pin Header Expansion Slots PCI-Express 2 PCI-E 3.0 x16 3 PCI-E 3.0 x8 1 PCI-E 2.0 x4 (in x8) System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) APM 1.2 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1 Management Software Intel® Node Manager 3.0 NMI SPM SUM SuperDoctor® 5 Watch Dog Power Configurations ACPI / APM Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. 5+1 Phase-switching voltage regulator FAN 8x 4-pin fan headers (up to 8 fans) 8x fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors Thermal Monitor 2 (TM2) support PECI LED CPU / System Overheat LED Suspend static indicator LED UID/Remote UID Other Features Chassis intrusion detection Chassis intrusion header SDDC Support RoHS Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
