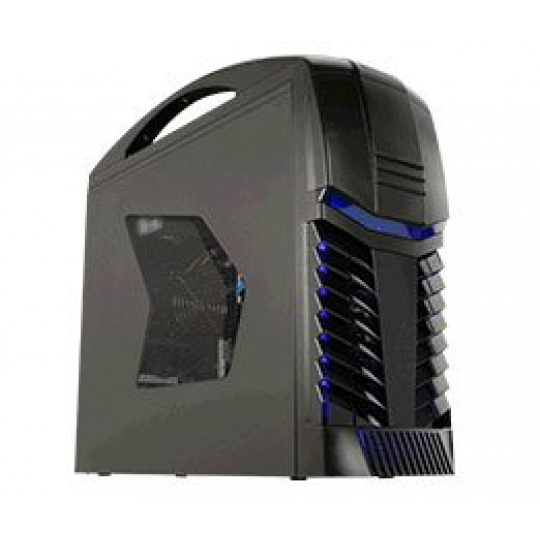

Key Features 1. 900W High Efficiency 80 PLUS GOLD Power Supply 2. 3x 3.5” Hot-swap Internal Drive Bays 2x 3.5" Hot-swap External Drive Bays Optional 4x 2.5” Hot-swap External Drive Bay Cage 3. 2x 5.25” Peripheral Drive Bays, 1x 3.5” Device Bay 4. 7x Full-height, Full-length expansion slots 5. 1x 12cm Rear Exhaust Fan; 1x 12cm Front Cooling Fan 6. Power Switch & 3 LED Indicators 7. Water Cooling Support Product SKUs CSE-732G-903B SuperChassis 732G-903B Form Factor Mid-Tower Gaming Chassis Supports Motherboard Sizes Up to E-ATX 12" x 13" , 12" x 10", 9.6" x 9.6" Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 20.08" (510mm) Width 8.66" (220mm) Depth 22.83" (580mm) Gross Weight 32.5 lbs (14.7kg) Available Colors Black Expansion Slots 7x Full-height, Full-length Expansion Slots Drive Bays Hot-swap 3x 3.5" Hot-swap Internal Drive Bays 2x 3.5" Hot-swap External Drive Bays Peripheral Bay(s) 2x 5.25" Peripheral Drive Bays 1x 3.5” Device Bay Front Panel Buttons • Power On/Off button LEDs • Power LED • Hard drive activity LED • Network activity LEDs • System Information LED Ports • 2x front USB 3.0 Ports • 2x front USB 2.0 Ports • 2x front HD/AC97 Audio Ports • 1x eSATA Port System Cooling Fans • 1x 12cm Rear Exhaust Fan • 1x 12cm Front Cooling Fan • Water Cooling Support Available Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 900W AC multi output power supply AC Voltage 100-240 V, 50-60 Hz, 10-6 Amp +5V Standby 3 Amp +12V1 25 Amp +12V2 25 Amp +12V3 25 Amp +12V4 25 Amp +5V 25 Amp +3.3V 25 Amp -12V 0.5 Amp Certification Gold Level Note: • Max. continuous combined load on +3.3V and +5V output shall not exceed 155W. • Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W. Regulatory (Power Supply) Power Supply Safety / EMC • USA - UL listed, FCC • Canada - CUL listed • Germany - TUV Certified • Europe/CE Mark • EN 60950/IEC 60950-Compliant Standard Parts List Part Number Qty Description SC732G-903B Chassis CSE-732G-903B 1 3U Chassis (Black) Power Supply PWS-903-PQ 1 PS2 900W Multi-Output Power Supply 80Plus Gold Cable 1 CBL-0071L 1 ROUND 16 pin TO 16 PIN RIBBON FP CABLE 30 Cable 2 CBL-0084L 1 Front control cable 16 pin split, 6 Cable 3 CBL-CDAT-0560 1 Audio Cable HD / AC97 -80cm, 28AWG,HF,RoHS/REACH,PBF Cable 4 CBL-CUSB-0558 1 SC732G USB2.0 Internal Cable 2-Ports w/ 2-Sockets-80cm,28AWG,HF,RoHS/REACH,PBF Cable 5 CBL-CUSB-0559 1 SC732G USB3.0 Internal Cable 2-Ports w/ 2-Sockets-60cm,28/24AWG,HF,RoHS/REACH,PBF Cable 6 CBL-PWEX-0561 1 SC732G 4 pin LED Power Cable with adapter for Blue,30cm,22AWG,HF,RoHS/REACH,PBF Cable 7 CBL-PWEX-0562 1 SC732G 4 pin LED Power Cable with adapter for Orange,30cm,22AWG,HF,RoHS/REACH,PBF Cable 8 CBL-PWEX-0563 1 SC732G 4 pin LED Color Adapter Power Cable-To Light Purple Color,30cm,22AWG,HF,RoHS/REACH,PBF Cable 9 CBL-SAST-0557 1 SC732G eSATA Internal Cable 1-Port w/ 1-Socket-60cm,26AWG,HF,RoHS/REACH,PBF Fan 1 FAN-0124L4 2 12 CM x12 CM fan Optional Parts List Part Number Qty Description Cable CBL-0179L - SATA CABLE 70CM FLAT S-S PBF Heatsink SNK-P0051AP4 - 4U Active CPU Heat Sink for Gaming and Socket H UP Systems,RoHS/REACH,PBF 2.5" HDD Cage MCP-220-73202-0N - SC732G HDD Cage (4x External 2.5” HDD) HDD Cooling Fan MCP-320-73201-0N - SC732G HDD Cooling Fan w/ Installation Bracket - Single Pack DVD-ROM DVM-LITE-DVDRW24-HBT - BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
