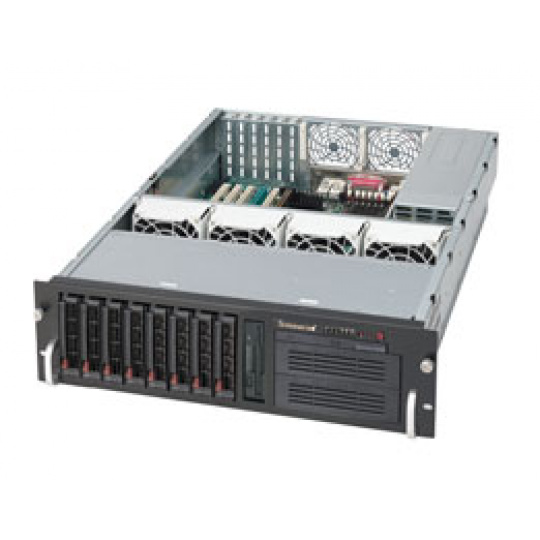

Key Features • High Efficiency Power Cost Effective 3U Chassis Optimized for Dual- Processor Motherboards 1. 650W High-efficiency Power Supply Gold Level Certified 2. 8x 3.5" SATA Hot-swap Drive Bays 3. 2x 5.25" Peripheral Drive Bays 4. 1x Optional Slim DVD-ROM Drive 1 x 3.5" Drive Bay 5. 6x Full-height, Full-length expansion slot 6. 100% Cooling Redundancy 7. Adjustable Air Shroud Design 8. Power Switch & 6 LED Indicator Product SKUs CSE-833T-653B SuperChassis 833T-653B (Black) Form Factor 3U chassis support for max. motherboard size - 12" x 13" E-ATX Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 5.2" (132mm) Width 17.7" (450mm) Depth 25.5" (648mm) Gross Weight 69 lbs (31.3kg) Available Colors Black Expansion Slots • 6x PCI expansion slots • SIMLC Support Only Drive Bays Hot-swap • 8x 3.5" SATA Hot-swap Drive Bay • SAS or enterpise SATA HDD only recommended Peripheral Bay(s) • 2x 5.25" Peripheral Drive Bay • 1x 3.5" Drive Bay • 1x Slim CDROM Drive Bay Peripheral Drives Floppy Sony 3.5" 1.44MB Floppy Drive (optional) DVD-ROM Slim DVD-ROM drive (optional) SATA Backplane SATA Backplane Front Panel Buttons • Power On/Off button • System Reset button • Alarm Mute Switch LEDs • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED Ports none (Optional front USB ports via 5.25" drive bay) Motherboard(s) for CSE-833T-653B X10DRL-C X10DRL-CT X10DRL-i X10DRL-iT X10SL7-F X10SLH-F X10SLL+-F X10SLL-F X10SLL-S X10SLL-SF X10SLM+-F X10SLM+-LN4F X10SLM-F X10SRH-CF X10SRH-CLN4F X10SRi-F X10SRL-F X9DBL-3 X9DBL-3F X9DBL-i X9DBL-iF X9DRL-3F X9DRL-7F X9DRL-EF X9DRL-iF X9SRH-7F X9SRH-7TF System Cooling Fans • 4 9cm 5,000 RPM Hot-swap PWM Fans • 2 8cm 5,000 RPM Rear Exhaust PWM Fans System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 650W AC-DC High Efficiency Power Supply AC Input 100 - 140V, 8-5.2A 180-240V 4.2-3.1A, 50-60Hz +5V 30 Amp +5V standby 4 Amp +12V 100-140Vac 49Amp 180-240Vac 54Amp -12V 0.5 Amp +3.3V 25 Amp Certification Gold Level Certified Gold Certified Regulatory (Power Supply) Power Supply Safety / EMC • USA - UL listed, FCC • Canada - CUL listed • Germany - TUV Certified • Europe/CE Mark • EN 60950/IEC 60950-Compliant • CCC Certification
