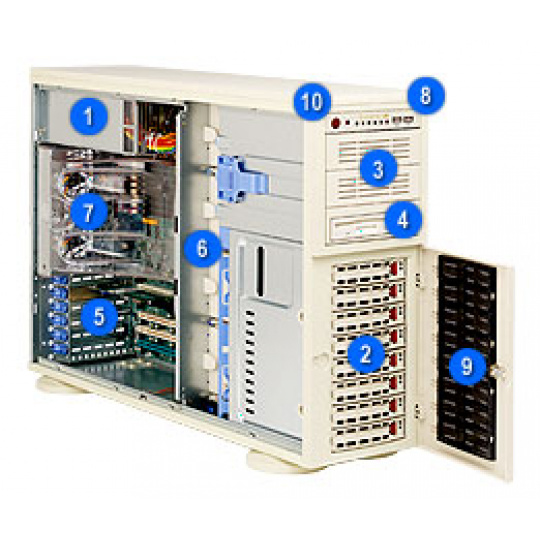

Form Factor 4U chassis support for max. motherboard size - 12" x 13" E-ATX Processor Support Dual Xeon™ Processors Dimensions Height * 7.0" (178mm) Width * 17.2" (437mm) Depth * 25.5" (648mm) Gross Weight * 65 lbs (29.5kg) Available Colors * Beige, Black Expansion Slots 7x PCI expansion slots Drive Bays Hot-swap * 8x 3.5" SAS / SATA Hot-swap Drive Bays Peripheral Bay(s) * 2x 5.25" Peripheral Drive Bay * 1x 5.25" Bay For Floppy Drive SAS / SATA Backplane SAS / SATA Hard Drive Backplane Front Panel Buttons * Power On/Off button * System Reset button LEDs * Power LED * Hard drive activity LED * 2x Network activity LEDs * System Overheat LED * Power Fail LED Ports * 2x USB Ports System Cooling Fans * 4x 5000 RPM Hot-Swappable Cooling Fans * 2x 5000 RPM Hot-Swappable Rear Exhaust Fan System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range * 10 - 35°C (50° to 95° F) Non-Operating Temperature Range * -40 - +70°C (-40° to 158° F) Humidity Range * 8 - 90% non-condensing Non-Operating Humidity Range * 5 - 95% non-condensing Power Supply 760W Triple-Redundant AC to DC power supply with PFC [ 24-pin, (8-pin, 4-pin)=12V ] AC Voltage * 100 - 240V, 50-60Hz, 14 - 8 Amp DC Output * 5V + 3.3V ? 200W +5V * 36.0 Amp +5V standby * 3.5 Amp +12V * 50.0 Amp (combined) -12V * 1.0 AAmp +3.3V * 36.0 Amp Regulatory (Power Supply) Power Supply Safety / EMC * USA - UL listed, FCC * Canada - CUL listed * Germany - TUV Certified * Europe/CE Mark * EN 60950/IEC 60950-Compliant Standard Parts List Part Number Qty Description SC743TQ-R760 Chassis CSE-743TQ-R760 CSE-743TQ-R760B 1 1 4U Chassis (beige) 4U Chassis (black) Bezel Filter - 1 Front Bezel Filter Cable(s) CBL-0044 CBL-0062 CBL-0084 CBL-0087 CBL-0209L 1 1 1 1 4 SATA Cable (2 Ft, Amphenol) 8-pin to 8-pin 12V Power Connector Extension Cable 6" Split Converter Cable Front Panel Ribbon Cable 210mm 4-pin to 3-pin Fan Power Cable Fan(s) FAN-0072 FAN-0081 4 2 5000 RPM Hot-Swappable Cooling Fan 5,000 RPM Rear Hot-swap Fan with Housing Power Supply PWS-0050 1 SP762-TS 760W Power Supply (with 3 PWS-0050M power modules) Hard Drive CSE-PT17(B) CSE-SAS-743TQ 8 1 1" SCA drive tray (B = Black) SAS / SATA Hard Drive Backplane with AMI MG9072 Chip [ Manual ] Air Shroud CSE-PT0123 1 Air Shroud Optional Parts List Part Number Qty Description Cable CBL-0157L - 8-pin to 8-pin Ribbon Cable for SGPIO (For Additonal Drives) Heatsink / Retention - - Please refer to our Thermal Components Matrix Mounting Rails CSE-PT26(B) - 4U Chassis Rail Kit (Includes Side Handles) (B = Black) Peripheral Drives FPD-PNSC-02 (01) - Panasonic 3.5" 1.44MB Floppy Drive (01 = Black) Power Supply Module(s) PWS-0050M - SP382-TS Module for PWS-0050
