Supermicro® CSE513F-350B 1U chassis
Popis a parametre
Supermicro® CSE513F-350B 1U chassis

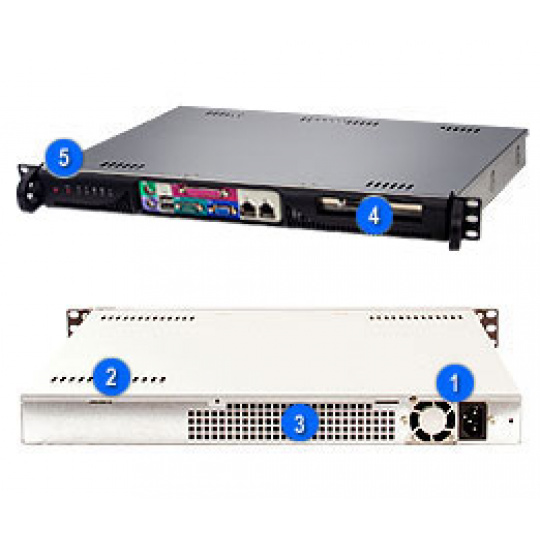

Key Features 1. 350W High-efficiency Power Supply 80 Plus Gold Level 2. 1x 3.5" Internal Drive Bay 3. 2x 12900 RPM PWM Cooling Fan 4. 1x Full-height, Half-length Front I/O Expansion Slot 5. Power Switch, Reset Button & 5 LED Indicators 6. Front Acess I/O Available Colors Black Product SKUs CSE-513F-350B SuperChassis 513F-350B (Black) Form Factor 14" Mini 1U chassis support for maximum motherboard size - 12" x 9.5" ATX Processor Support Supports single Intel® / AMD processor Dimensions Height 1.7" (43mm) Width 16.8" (426mm) Depth 14.0" (356mm) Packaging 19.5" (W) x 6.9" (H) x 22.4" (L) Gross Weight 14.5 lbs (6.6kg) Available Colors Black Expansion Slots • 1x full-height half-length PCI expansion slot (Riser Card Required) Drive Bays Internal Bay 1x 3.5" Internal Drive Bay (Standard) 2x 2.5" Internal Drive Support (Optional) SAS or enterprise SATA HDD only recommended Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Ports 2x USB 2x LAN COM Printer Port (Optional) System Cooling Fans 2x 4cm PWM Fans Cooling Components 1x Fan Holder 1x Air Shroud Operating Environment (System) Operating Temperature Range 10 - 35°C (50° - 95°F) Non-Operating Temperature Range -40 - 70°C (-40° - 158°F) Humidity Range 8 - 90% non-condensing Non-Operating Humidity Range 5 - 95% non-condensing Power Supply 350W AC power supply w/ PFC AC Voltage 100-240 V, 50-60 Hz, 4.2-1.8 Amp +5V 18 Amp +5V standby 3 Amp +12V 29 Amp +3.3V 15 Amp Certification 80 PLUS Gold Certified [ Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant
Supermicro® CSE513F-350B 1U chassis
