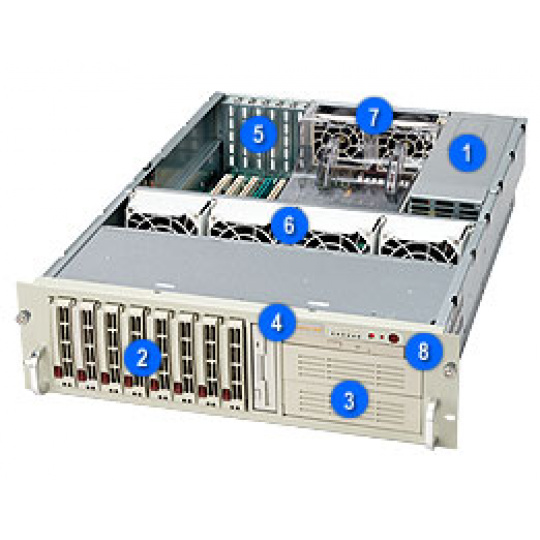

Key Features 1. 760W Triple-Redundant Power Supply 2. 8 x 3.5" SAS / SATA Hot-swappable Drive Bays 3. 2 x 5.25" Peripheral Drive Bays 4. 1 x Optional Slim CDROM Drive 1 x Floppy Drive 5. 6x Full-height, Full-length Expansion Slot 6. 4 x 9cm Hot-swappable Fan 7. 2 x 8cm Rear-exhaust Fan 8. Power Switch & 6 LED Indicators Links & Resources Recommended Boards Chassis Manual Product SKUs CSE-833T-R760 SuperChassis 833T-R760 (Beige) CSE-833T-R760B SuperChassis 833T-R760B (Black) Form Factor 3U chassis support for max. motherboard size - 12" x 13" E-ATX Processor Support Dual Xeon® Processors, or Single Pentium® 4 Processor Dimensions Height 5.2" (132mm) Width 17.7" (450mm) Depth 25.5" (648mm) Gross Weight 72 lbs (32.7 kg) Available Colors Beige, Black Expansion Slots • 6x PCI expansion slots (7th slot not supported) • SIMLC Support Only Drive Bays Hot-swap • 8x 3.5" SAS / SATA Hot-swap Drive Bay Peripheral Bay(s) • 2x 5.25" Peripheral Drive Bay • 1x Floppy Drive Bay • 1x Slim CDROM Drive Bay Peripheral Drives Floppy TEAC 3.5" 1.44MB Floppy Drive (beige / black) CD-ROM TEAC Slim 24x CD-ROM drive (optional) SATA Backplane SATA Backplane Peripheral Drives Floppy TEAC 3.5" 1.44MB Floppy Drive Front Panel Buttons • Power On/Off button • System Reset button • Alarm Mute Switch LEDs • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power Fail LED Ports none (Optional front USB ports via 5.25" drive bay) System Cooling Fans • 4x 9cm 5,000 RPM Hot-swappable Fans • 2x 8cm 5,000 RPM Rear Exhaust Fans System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 10 - 35°C (50° to 95° F) Non-Operating Temperature Range -40 - +70°C (-40° to 158° F) Humidity Range 8 - 90% non-condensing Non-Operating Humidity Range 5 - 95% non-condensing Power Supply 3U 760W Triple-Redundant AC power supply with PFC [ 24-pin, (8-pin, 4-pin)=12V) ] AC Voltage • 100 - 240V, 50-60Hz, 14/7 Amp DC Output • 12V + 5V + 3.3V ? 550W +5V 36.0 amp +5V standby 3.5 amp -5V n/a +12V 50.0 amp (combined) -12V 1.0 amp +3.3V 36.0 amp Regulatory (Power Supply) Power Supply Safety / EMC • USA - UL listed, FCC • Canada - CUL listed • Germany - TUV Certified • Europe/CE Mark • EN 60950/IEC 60950-Compliant Standard Parts List Part Number Qty Description SC833T-R760 Chassis CSE-833T-R760 CSE-833T-R760B 1 1 3U Chassis (Beige) 3U Chassis (Black) Power Supply PWS-0050M 3 SP382-TS 380W Power Modules for a total of 760W Fan(s) FAN-0062 FAN-0064 2 4 8cm Rear Exhaust Fan 9cm Hot-swappable Cooling Fan SCA CSE-PT39(B) CSE-SATA-833 8 1 1" SCA drive tray (B = Black) SATA Backplane without SAF-TE Cables CBL-0044 4 2' SATA Cable Shroud CSE-PT44 CSE-PT45 1 1 3U Chassis Air Shroud 3U Chassis Side-Piece Air Shroud Peripheral Drive(s) FPD-TEAC(B) 1 TEAC 3.5" 1.44MB Floppy Drive (B = Black) Mounting Rails CSE-PT50 1 3U Chassis Mounting Rails
