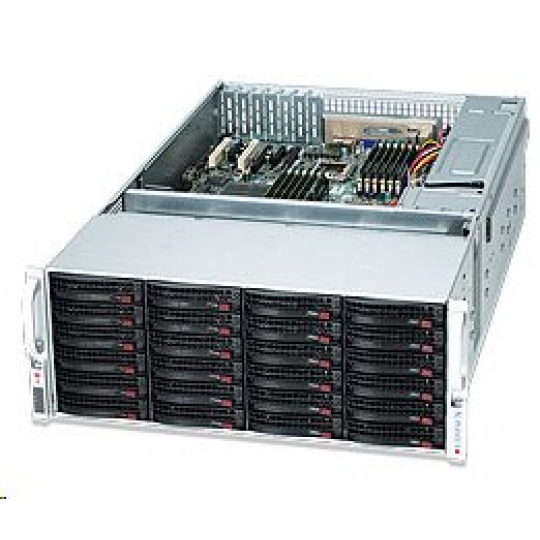

Key Features • High Efficiency Power & High Storage Capacity 1. Extra High-Density 4U Storage Chassis 2. High-Availability Features: Redundant, Hot-pluggable cooling system, Power Supplies, Hot-swap drives 3. 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus Platinum Level (95%) 4. Maximum 3.5" hot-swap drives density 36x (24 front + 12 rear) HDD bays E16: Expander supports SAS2 (6Gb/s) 5. 7x Low-profile expansion slots 6. 7x 8cm (middle) Hot-swap cooling fans, redundant cooling Product SKUs CSE-847E26-R1K28LPB SuperChassis 847E26-R1K28LPB (Black) Form Factor 4U chassis support for motherboards up to size ATX, E-ATX, 13.68" x 13", UIO motherboards Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 7" (178mm) Width 17.2" (437mm) Depth 27.5" (699mm) Gross Weight 80 lbs (36.3 kg) Available Colors Black Expansion Slots 7x Low-profile expansion slots Drive Bays Server Chassis 36x (24 front + 12 rear) 3.5" Hot-swap HDD bays SAS or enterprise SATA HDD only recommended Backplane HDD Backplane supports 36 SAS hard drives (24x front + 12 rear) Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power Fail LED System Cooling Fans 7x 8cm hot-swap cooling fans Redundant cooling System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2 AC Input 1000W Output @ 100-140V, 12-8A, 50-60Hz 1280W Output @ 180-240V, 8-6A, 50-60Hz DC Output 1000W: +12V/83A; +5Vsb/4A 1280W: +12V/106.7A, +5Vsb/4A With Distributor +5V: 100 Amp +3.3V: 30 Amp -12V: 0.6 Amp Certification Platinum Level Certified95%+ Platinum Certified [ Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant See Parts List Standard Parts List Part Number Qty Description Chassis CSE-847E26-R1K28LPB 1 4U Chassis (Black) - 847E26-R1K28LPB Backplane BPN-SAS2-826EL2 1 826 backplane with two LSI SAS2X28 expander chip Backplane BPN-SAS2-846EL2 1 Backplane supports upto 24 SAS/SATA Power Supply PWS-1K28P-SQ 2 1U 1280W, redundant single output power supply Power Distributor PDB-PT847-8824 1 24pin standard output with 5V high current 100Amp power distributor board for SC847 Air Shroud MCP-310-49004-0N 1 SC847/417 DP X9 universal PC air shroud 1368x13/12x13MB Cable 1 CBL-0071L 1 ROUND 16 pin TO 16 PIN RIBBON FP CABLE 30 Cable 2 CBL-0088L 7 10.5\", 4 PIN MIDDLE FAN POWER EXTENSION (PWM). 24AWG Cable 3 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) Cable 4 CBL-0217L 1 16 pin control panel converter cable for SC826,846, 22cm, PBF Fan 1 FAN-0126L4 7 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing Front Panel MCP-280-82601-0N 1 Front control board adapter (TB826) for SC216,826,936,846 Drive Tray(s) MCP-220-00075-0B 36 Black gen 5.5 hot-swap 3.5\" HDD tray Mounting Rails MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2 Rear Window MCP-240-82506-0N 1 LP Rear Window for SC825,825M,826,213,216 Optional Parts List Part Number Qty Description Heatsink / Retention - - Please refer to our Thermal Components Matrix Cable(s) CBL-0166L CBL-0168L-LP CBL-0351L-LP CBL-0352L-LP - - - - SAS 826EL2/EL1 BP External Cascading Cable SAS 826EL2 BP 2-Port Internal Cascading Cable 85CM 1-PORT EXT IPASS TO INT IPASS LP 85CM 2-PORT ETX IPASS TO INT IPASS LP Cable(s) CBL-0108L-02 CBL-0281L - - SFF 8087 to SFF 8087 Internal Backplane Cable, 39cm SFF 8087 to SFF 8087 Internal Backplane Cable, 75cm Drive Trays MCP-220-84701-0N MCP-220-00043-0N - - Internal drive bay for one 3.5" HDD or two 2.5" HDD 3.5" convert to 2.5" hot-swap HDD Tray Mounting Rails MCP-290-00058-0N MCP-290-00060-0N - - 19" to 26.6" rail set, Quick Release, Tool-less Square hole to round hole rail adaptor set Front Bezel ( Compatibility Table ) MCP-210-84601-0B - Front Bezel Cover, Black with Key Lock RAID cards AOC-USAS2LP-H8iR - 8 int ports, supports 240 HDDs SC847 JBOD SKUs List Part Number Qty Description JBOD SKUs - - Please go to SC847E16-RJBOD1 or SC847E26-RJBOD1 Hide Parts List LCD/OLED Solutions - - Please reference the LCD/OLED Display Solutions for details
