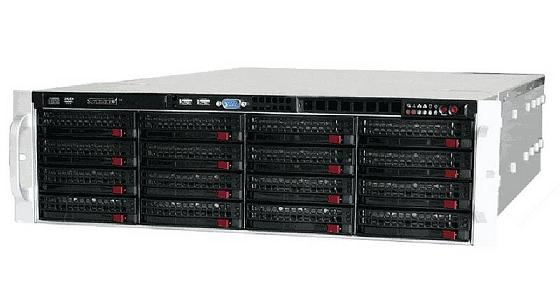

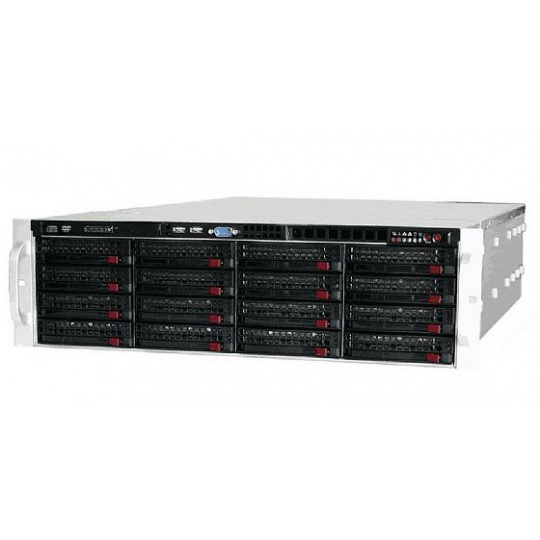

Key Features • High Performance SAS2/6GbS Expander • High Efficiency PS and Storage Capacity 1. 1200W high-efficiency (1+1) redundant power supply (Gold Level 93%) 2. 16x 3.5" Hot-swappable SAS / SATA Drive Bays 3. 1 x Slim DVD-ROM Drive (optional) 4. 6Gb/s SAS2 Expander 5. Mini-I-Pass (SFF 8087) connectivity 6. 3x 8cm Hot-swap 4-pin PWM Fans 7. 2x 8cm Rear-exhaust 4-pin PWM Fans 8. Palletized package for secure transportation 9. Optional 3x slim 2.5" Internal Fixed HDD Form Factor CSE-836E16-R1200B SuperChassis 836E16-R1200B (Black) Form Factor 3U chassis support for max. motherboard size - 13.68" x 13", E-ATX and ATX Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 5.2" (132mm) Width 17.2" (437mm) Depth 25.5" (648mm) Gross Weight 72 lbs (32.7kg) Available Color Black Expansion Slots • 7x full-height full-length expansion slots Drive Bays Hot-swap 16x 3.5" SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended Backplane SAS2 Expander Backplane, features: • Scalability through cascading • 6Gb SAS2/SATA3 HDD support • Inband SES-2 Enclosure Management • Single input/output SFF 8087 connectors Peripheral Drives DVD-ROM Slim DVD-ROM Drive (Optional) Floppy Slim 1.44MB Floppy Drive (Optional) Front Panel Buttons • Power On/Off button • System Reset button LEDs • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED Ports 2x USB Ports & DB9 COM Port System Cooling Fans • 3x 80mm Hot-swap 4-pin PWM Fans • 2x 80mm Rear-exhaust 4-pin PWM Fans System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 10 - 35°C (50° - 95°F) Non-Operating Temperature Range -40 - 70°C (-40° - 158°F) Humidity Range 8 - 90% non-condensing Non-Operating Humidity Range 5 - 95% non-condensing Power Supply Redundant 1200W high-efficiency power supply with PMBus AC Input 100 - 140V, 50 - 60Hz, 8 - 11.5 Amp 180 - 240V, 50 - 60Hz, 5.5 - 8 Amp DC Output +12V 1000W, 83 Amp @ 100-140V 1200W, 100 Amp @ 180-240V 5Vsb: 4A DC Output with PDB +5V: 50 Amp +3.3V: 30 Amp -12V: 0.6 Amp Certification 80 PLUS Gold Certified [ Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed Canada - CUL listed Germany - TUV Certified EN 60950/IEC 60950-Compliant CB Report CCC Certification Standard Parts List Part Number Qty Description Chassis CSE-836TS-R1200BP MCP-420-83601-0N 1 1 3U Chassis (Black) Chassis Accessory Box Backplane BPN-SAS2-836EL1 1 836 backplane with single LSI SAS2X28 expander chip Cable(s) CBL-0087 1 20" 16-pin to 16-pin Round Ribbon Cable Chassis Accessory Box MCP-420-83601-0N 1 Accessory Box for SC836 with two power cords, NO FDD acc. Drive Tray(s) NCP-220-00024-0B MCP-220-00007-01 16 1 Black hot-swappable 3.5" drive trays Black USB/COM port tray for SC825 & SC836 Fan(s) FAN-0062L4 FAN-0094L4 2 3 8cm 4-pin Rear PWM Fan (with Housing) 8cm 4-pin Hot-swap PWM Fan Front Panel MCP-280-00012-00 1 Front control board (FP836) for SC823M, 825, 825M, 828, 835, 836 Mounting Rails MCP-290-00053-0N 1 26.5" to 36.4" rail set, quick/quick, default for 2U, 3U 17.2" W chassis Part MCP-290-83601-0V 1 Silver chassis handle for SC836 Peripheral Drives MCP-290-00007-01 MCP-290-00015-01 1 1 Black DVD dummy cover for SC825, 836 Black FDD dummy cover for SC836 Power PWS-1K21P-1R PDB-PT825-8824 2 1 1200W Gold-Level power supply with PMBus 24-pin x8 power distributor Rail Adaptor MCP-290-00060-0N 1 Square hole to round hole rail adaptor set Air Shroud MCP-310-38001-0N 1 SC835/836/936 Intel DP X8.X7 PC Air Shroud Palletized Package MCP-430-83601-0N 1 Storage chassis palletized shipping box for SC836,936
