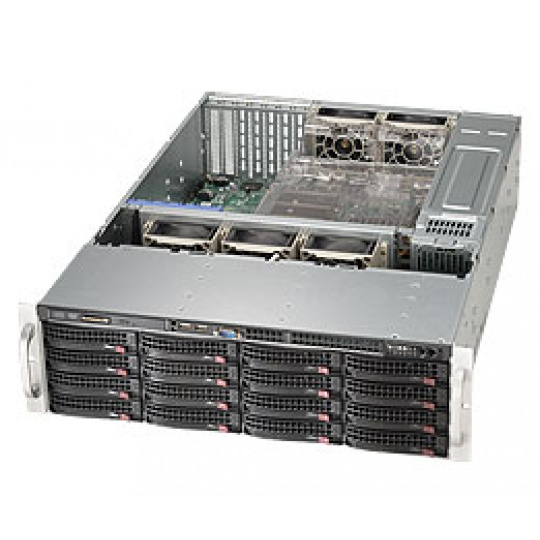

Key Features • High Performance SAS2/6GbS Expander • High Efficiency PS and Storage Capacity 1. 920W Redundant Power Supplies Platinum Level (94%) 2. 16x 3.5" Hot-swap SAS Drive Bays w/ SES2 (dual-channel) and optional 2x 2.5" Hot-swap SAS Drive Bays on rear side of Chassis 3. 1x Slim DVD-ROM Drive (optional) 4. 6Gb/s SAS2 Expander 5. Mini-I-Pass (SFF 8087) connectivity 6. 3x 8cm Hot-swap 4-pin PWM Fans 7. 2x 8cm Rear-exhaust 4-pin PWM Fans 8. Optional 3x slim 2.5" Internal Fixed HDD Product SKUs CSE-836BE16-R920B SuperChassis 836BE16-R920B (Black) Form Factor 3U chassis support for max. motherboard size - 13.68" x 13", E-ATX and ATX Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 5.2" (132mm) Width 17.2" (437mm) Depth 25.5" (648mm) Gross Weight 72 lbs (32.7kg) Available Color Black Expansion Slots • 7x full-height full-length expansion slots Drive Bays Hot-swap 16x 3.5" Hot-swap SAS Drive Bays with SES2 (dual-channel) and optional 2x 2.5" Hot-swap SAS Drive Bays on rear side of Chassis SAS or enterprise SATA HDD only recommended Backplane SAS2 Expander Backplane, features: • Scalability through cascading • 6Gb SAS2/SATA3 HDD support • Inband SES-2 Enclosure Management • Single input/output SFF 8087 connectors Peripheral Drives DVD-ROM Slim DVD-ROM Drive (Optional) Floppy Slim 1.44MB Floppy Drive (Optional) Front Panel Buttons • Power On/Off button • System Reset button LEDs • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED Ports 2x USB Ports & DB9 COM Port System Cooling Fans • 3x 80mm Hot-swap 4-pin PWM Fans • 2x 80mm Rear-exhaust 4-pin PWM Fans System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply with Power Distributor 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C AC Input 100-240 V, 50-60 Hz, 11-4.5 Amp DC Output 4 Amp @ +5V standby 75 Amp @ +12V Certification Platinum Certified [ Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed Canada - CUL listed Germany - TUV Certified EN 60950/IEC 60950-Compliant CB Report CCC Certification See Parts List Standard Parts List Part Number Qty Description Chassis CSE-836BE16-R920B MCP-420-83601-0N 1 1 3U Chassis (Black) Chassis Accessory Box Backplane BPN-SAS2-836EL1 1 836 backplane with single LSI SAS2X28 expander chip Power Supply PWS-920P-SQ 2 920W 1U Redundant PWS W/ Quiet Mode Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B Air Shroud MCP-310-39001-0N 1 SC835/836/936 Intel DP X9, X8 PC air shroud 1368x13/12x13MB Accessory ACC836-00-2B 1 Accessories Box for SC836 with two power cords and FDD acc. Cable 1 CBL-0071L 1 ROUND 16 pin TO 16 PIN RIBBON FP CABLE 30 Peripheral Drive 1 MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836 Fan 1 FAN-0125L4 2 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing Fan 2 FAN-0126L4 3 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing Drive Tray(s) MCP-220-00007-01 1 Black USB/COM port tray for SC825, 836 Drive Tray(s) MCP-220-00075-0B 16 Black gen 5.5 hot-swap 3.5\" HDD tray Drive Tray(s) MCP-290-83605-0N 1 836B rear dummy cover for 2 X 2.5\" HDD cage Part(s) MCP-290-83601-0V 1 set Silver chassis handle for SC836 Mounting Rails MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2"W Mounting Rails MCP-410-00007-0N 1 Rail screw bag Rear Window MCP-240-83605-0N 1 836B rear window which support 2 X 2.5\" HDD module Optional Parts List Part Number Qty Description Cable CBL-0084 CBL-0157L - - Split Front Panel Cable 8-pin to 8-pin Ribbon Cable for SGPIO (For Additonal Drives) Cable (2.5" OS drive) CBL-0044L CBL-0082L CBL-0296L - - - 61cm, SATA S-S Y Split SATA Power Adapter 4-pin fan extension cord, 9" length Cable(s) CBL-0108L-02 CBL-0281L - - SFF 8087 to SFF 8087 Internal Backplane Cable, 39cm SFF 8087 to SFF 8087 Internal Backplane Cable, 75cm Cable Management Arm MCP-290-00073-0N - Supermicro Cable Management Arm for 2U, 3U and 4U chassis (Extendable Length: 70mm to 830mm) Heatsink / Retention - - Please refer to our Thermal Components Matrix Mounting Rails MCP-290-00058-0N - 19" to 26.6" rail set, quick/quick, optional for 2U, 3U 17.2" W chassis Peripheral Drives FPD-TEAC-SB CSE-PT91L MCP-220-81502-0N MCP-290-00015-01 MCP-290-00007-01 MCP-220-00043-0N MCP-220-83605-0N - - - - - - - Black slim TEAC floppy drive Slim Floppy Drive Kit Slim SATA DVD kit (including cable, backplane) Black FDD dummy cover Black DVD-ROM drive dummy cover 3.5" convert to 2.5" HDD Tray Rear window 2x 2.5" HDD module for 836B series chassis Peripheral Drives DVM-TEAC-824B DVM-PNSC-824B DVM-TEAC-DVD-SBT2 DVM-PNSC-DVD-SBT2 CSE-PT92L MCP-220-81502-ON - - - - - - Black slim IDE DVD (8x DVD, 24x CDR), TEAC Black slim IDE DVD (8x DVD, 24x CDR), Panasonic Black slim SATA DVD (8x DVD, 24x CDR), TEAC Black slim SATA DVD (8x DVD, 24x CDR), Panasonic Slim IDE DVD kit (include backplane, cable) Slim SATA DVD kit (include backplane, cable) Trays MCP-220-83601-0B MCP-290-00036-0B MCP-220-00023-01 - - - Black FDD dummy tray, supports 1x 2.5" slim HDD (9.6mm thick) Black DVD dummy tray, supports 1x 2.5" slim HDD (9.6mm thick) Black USB dummy tray, supports 1x 2.5" slim HDD (9.6mm thick) JBOD Kit - Used for cascading purposes CSE-PTJBOD-CB2 CBL-0166L CBL-0102L CBL-0351L CBL-0352L MCP-260-00011-0N - - - - - Power Control Card for JBOD SAS BP External Cascading Cable I2C CABLE FOR SATA LED, 51CM, LF Full Height Bracket. 85CM 1-PORT EXT IPASS TO INT IPASS 85CM 2-PORT ETX IPASS TO INT IPASS FH I/O shield without any opening RAID cards AOC-SAS2LP-H4iR AOC-SAS2LP-H8iR AOC-USAS2LP-H8iR - - - 4 int/4 ext ports, supports 240 HDDs 8 int ports, supports 240 HDDs 8 int ports, supports 240 HDDs HBA cards AOC-USAS2-L8i AOC-USAS2-L8e - - 8 int ports, supports 122 HDDs 4 int/4 ext ports, supports 63 HDDs Front Bezel ( Compatibility Table ) MCP-210-83601-0B - Front Bezel Cover, Black (optional) LCD/OLED Solutions - - Please reference the LCD/OLED Display Solutions for details Adaptor HDD carrier MCP-220-00043-0N - Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray Hide Parts List
