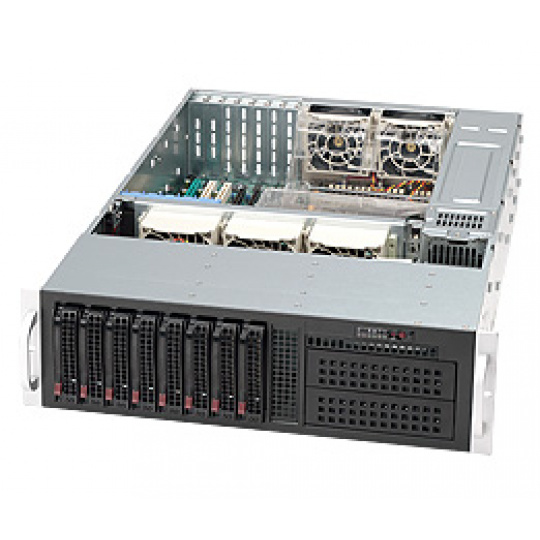

Key Features 1. 650W Redundant Cooling, High Efficiency Power Supply 2. 8x 3.5" SAS / SATA Hot-swap Drive Bays 3. 2x 5.25" Peripheral Drive Bays 4. 1x Slim CDROM Drive (Optional) 5. 6x Full-height, Full-length expansion slot 6. 4x 9cm Hot-swap PWM Fans Low Noise 7. Power Switch & 5 LED Indicators • High Efficiency Power Cost Effective 3U Chassis • Supermicro patented REDUNDANT COOLING power supply improves reliability for high availability Available Colors Black Downloads Chassis Manual Product SKUs CSE-832T-650B SuperChassis 832T-650B (Black) Form Factor 3U chassis support for max. motherboard size - 12" x 13" E-ATX and 12" x 10" ATX Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 5.2" (132mm) Width 17.7" (450mm) Depth 25.5" (648mm) Gross Weight 67 lbs (30.4kg) Available Colors Black Expansion Slots 6x PCI expansion slots Drive Bays Hot-swap • 8x 3.5" SAS / SATA Hot-swap Drive Bay • SAS or enterprise SATA HDD only recommended Peripheral Bay(s) • 2x 5.25" Peripheral Drive Bay • 1x 3.5" Drive Bay • 1x Slim CD-ROM Drive Bay Peripheral Drives DVD-ROM Slim DVD-ROM drive (optional) Backplane SAS / SATA Backplane Front Panel Buttons • Power On/Off button • System Reset button • NMI Switch LEDs • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power Fail LED Ports none System Cooling Fans • 4x 9cm 4,300 RPM Hot-swap PWM Fans System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 650W AC-DC high-efficiency power supply w/ PFC Redundant Cooling AC Voltage 100 - 240V, 60-50Hz, 8.3 - 3.5 Amp +5V 30 Amp +5V standby 4 Amp +12V 54 Amp -12V 0.5 Amp +3.3V 25 Amp Certification Certified Regulatory (Power Supply) Power Supply Safety / EMC • USA - UL listed, FCC • Canada - CUL listed • Germany - TUV Certified • Europe/CE Mark • EN 60950/IEC 60950-Compliant • CCC Certification Standard Parts List Part Number Qty Description SC832T-650B Chassis CSE-832T-650B 1 3U Chassis (Black) Power Supply PWS-652-2H 1 2U 650W Redundant Cooling Power Supply Fan(s) FAN-0063L4 4 9cm Hot-swap PWM Cooling Fan SCA CSE-PT39-B0 CSE-SATA-833 8 1 1" SCA Assy. (w/o Logo, Black) Drive Tray SAS / SATA Backplane w/o SAF-TE Cables CBL-0044 CBL-0216L 1 4 2' SATA Cable 4 to 4-pin middle fan power extension cable, 200mm (PWM) Peripheral Drives MCP-290-83301-0B 1 Black DVD Dummy Cover Mounting Rails CSE-PT50 1 3U Chassis Mounting Rails Optional Parts List Part Number Qty Description Fan(s) FAN-0062L4 - 80x32mm 4-pin PWM fan assembly Front USB Kit CSE-PT29(B) - 2 Ports Front USB Kit (B = Black) Heatsink / Retention - - Please refer to our Thermal Components Matrix Peripheral Drives FPD-TEAC (B) MCP-220-83301-0N MCP-290-83301-0B MCP-290-83301-0W - - - - TEAC 3.5" 1.44MB Floppy Drive 3.5" FDD kit DVD Dummy Cover (0B = black) DVD Dummy Cover (0W = beige) Peripheral Drives DVM-TEAC-DVD-SBT2 DVM-PNSC-DVD-SBT2 MCP-220-81502-ON - - - Black slim SATA DVD (8x DVD, 24x CDR), TEAC Black slim SATA DVD (8x DVD, 24x CDR), Panasonic Slim SATA DVD kit (include backplane, cable) Rear I/O - - Other I/O Shield for 4U / Tower Chassis Adaptor HDD carrier MCP-220-00043-0N - Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray
