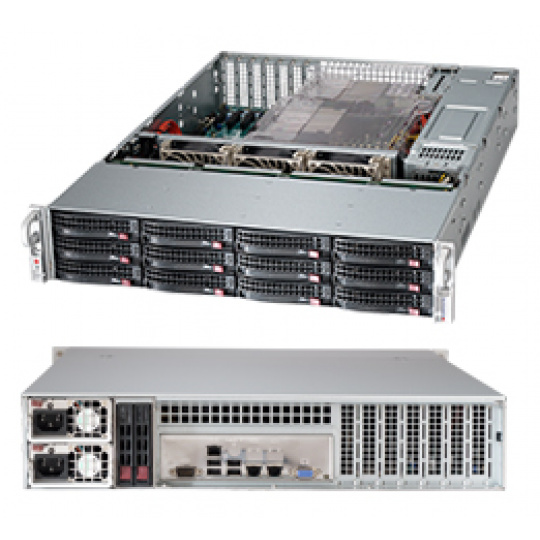

Key Features 1. 1280W high-efficiency (1+1) redundant power supply (Platinum Level 95%) 2. 12x 3.5" Hot-swap SAS / SATA Drive Bays and optional 2x 2.5" Hot-swap SAS/SATA Drive Bays on rear side of Chassis 3. 3x 80mm PWM Cooling Fans 4. 7x Low-profile PCI expansion support 5. Mini-i-pass (SFF 8087) connectivity (multi lane) 6. Palletized package for secure transportations Available Color Black Downloads Chassis Manual Product SKUs CSE-826BE16-R1K28LPB SuperChassis 826BE16-R1K28LPB (Black) Form Factor 2U chassis supports up to motherboard sizes - 13.68" x 13" * Support up to E-ATX 12"x13" MB with rear 2.5" HDD option installed Processor Support Supports dual, single Intel® / AMD processors Dimensions Width 17.2" (437mm) Height 3.5" (89mm) Depth 25.5" (648mm) Gross Weight 52 lbs (23.6kg) Packaging 26.7" (W) x 11.4" (H) x 34.5" (L) Palletized Packing 37.3" (W) x 27" (H) x 14.8" (L) Available Color Black Expansion Slots • 7x low-profile full-length expansion slots Drive Bays Hot-swap 12 x 3.5" SAS / SATA Hot-swap drive trays and optional 2x 2.5" Hot-swap SAS/SATA Drive Bays on rear side of Chassis *SAS or enterprise SATA HDD only recommended Backplane 2U Expander Backplane, features: • Up to 6Gb support • SES-2 Enclosure Management Support • SAS/SATA support • Two SFF 8087 connectors Front Panel Buttons • Power On/Off button • System Reset button System Cooling Fans 3x 80mm 4-pin 7000 RPM PWM fans System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 10 - 35°C (50° - 95°F) Non-Operating Temperature Range -40 - 60°C (-40° - 140°F) Humidity Range 8 - 90% non-condensing Non-Operating Humidity Range 5 - 95% non-condensing Power Supply 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2 AC Input 1000W Output @ 100-140V, 12-8A, 50-60Hz 1280W Output @ 180-240V, 8-6A, 50-60Hz DC Output 1000W: +12V/83A; +5Vsb/4A 1280W: +12V/106.7A, +5Vsb/4A Certification Platinum Certified [ Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed Canada - CUL listed Germany - TUV Certified EN 60950/IEC 60950-Compliant CB Report CCC Certification
