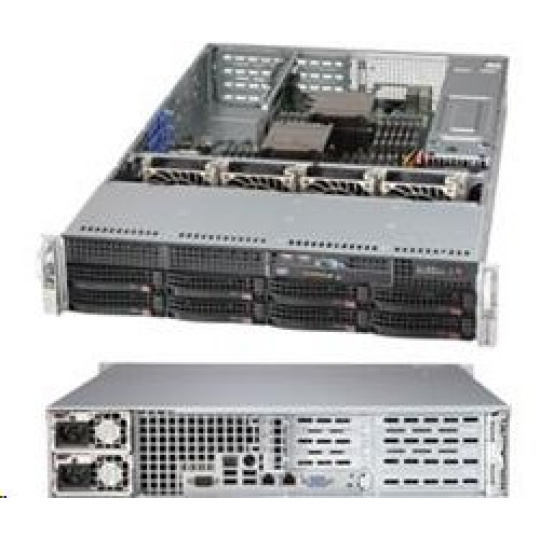

Popis produktu: 1. 500W Redundant Power Supplies 80 PLUS, Platinum Level (94%) 2. 8x 3.5" Hot-swap SAS / SATA Drive Bays 3. 2x Fixed 3.5" Drive Bays 4. Adjustable Air Shroud 5. 4x Full-height, Full-length I/O 3x Low-Profile Expansion Slots 6. Power Switch & 6 LED Indicators 7. Full SES2 support is available with SAS motherboards and other compatible components. Form Factor 2U chassis supports Supermicro Proprietary WIO motherboards: 12" x 13", 13.68" x 16.5" E-ATX Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 3.5" (89mm) Width 17.2" (437mm) Depth 25.5" (648mm) Gross Weight 52 lbs (23.6 kg) Available Color Black Expansion Slots • 4x Full-height Full-length I/O and 3x Low-Profile Expansion Slots (Standard add-on cards) Drive Bays Hot-swap 8x 3.5" SAS / SATA Hot-swap drive bays SAS or enterprise SATA HDD only recommended SAS Backplane 1x 2U SAS backplane w/ Enclosure Management Peripheral Drives DVD-ROM Slim DVD-ROM drive (Optional) Front Panel Buttons • Power On/Off button • System Reset button LEDs • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED Ports 2x USB Ports + DB9 COM Port (optional) System Cooling Fans 3x 80x38mm 4-pin PWM Fans System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply with Power Distributor 500W high-efficiency redundant power supplies with PMBus AC Input 100-240 V, 50-60 Hz, 6.1-2.6 Amp DC Output 4 Amp @ +5V standby 41.7 Amp @ +12V With Power Distributor +5V: 30 Amp +3.3V: 24 Amp -12V: 0.6 Amp Certification Platinum Level [ Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed Canada - CUL listed Germany - TUV Certified EN 60950/IEC 60950-Compliant CB Report CCC Certification
