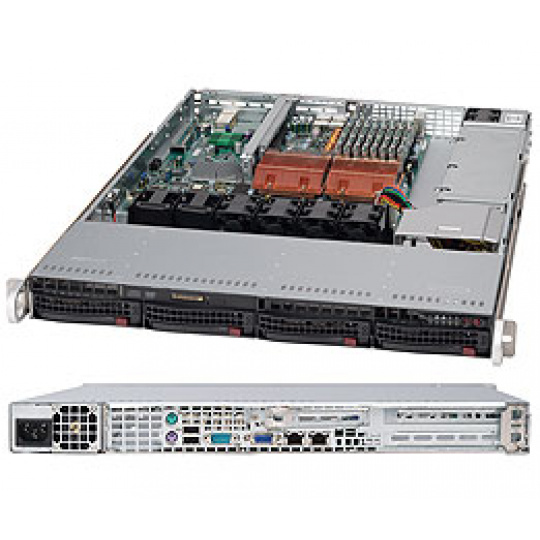

Key Features 1. 700W High efficiency Redundant Power Supply 2. 4x 3.5" Hot-swap SAS / SATA Drive Bays 3. 1x Slim DVD-ROM Drive (optional) 4. 4x 4cm Counter-rotating PWM Fans 5. 1x Full-height Universal I/O (UIO Expansion Slot) 6. 1x Full-height, Full-length I/O Expansion Slot 7. 1x Low-profile I/O Expansion Slot 8. Power Switch, Reset, UID Button & 5 LED Indicators 9. Full SES2 support is available with SAS motherboards and other compatible components. Product SKUs CSE-815TQ-R700UB SuperChassis 815TQ-R700UB (Black) Form Factor 1U chassis support for max. motherboard size - 12" x 13" E-ATX • Optimized for Universal I/O (UIO) motherboards Processor Support Supports single, dual Intel® Xeon® processor 5500 Series (Tylersburg/Nehalem) / AMD Opteron™ processors Dimensions Height 1.7" (43mm) Width 17.2" (437mm) Depth 25.6" (650mm) Gross Weight 36 lbs (18.1kg) Package 23.5" x 8.5" x 33.7" Available Colors Black Expansion Slots 1x Full-height Universal I/O Expansion Slot (Riser Card Required) 1x Full-height, Full-length PCI Expansion Slot (Riser Card Required) 1x Low-profile PCI Expansion Slot (Riser Card Required) Drive Bays Hot-swap 4x 3.5" SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended SAS / SATA Backplane 1x 1U SAS / SATA backplane Peripheral Drives DVD-ROM Slim DVD-ROM drive (optional) Front Panel Buttons Power On/Off Button System Reset Button UID Button LEDs Power LED Hard drive activity LED 2x Network activity LEDs Universal Information (UID) LED Ports 2x USB & DB9 COM port tray (Optional - in place of floppy drive) System Cooling Fans 4x 4cm Counter-rotating PWM fans Operating Environment (System) Operating Temperature Range 10 - 35°C (50° to 95° F) Non-Operating Temperature Range -40 - +70°C (-40° to 158° F) Humidity Range 8 - 90% non-condensing Non-Operating Humidity Range 5 - 95% non-condensing Power Supply 700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C AC Voltage 700W: 100 - 140 V, 50-60 Hz, 8.5-6 Amp 750W: 180 - 240V, 60-50 Hz, 5-3.8 Amp DC Output +5V standby 3 Amp DC Output +12V 700W: 58 Amp @ 100-140V 750W: 62 Amp @ 180-240V With Power Distributor +5V: 25 Amp +3.3V: 25 Amp -12V: 0.6 Amp Certification 80PLUS Gold Certified Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed China - CCC Mark Europe/CE Mark EN 60950/IEC 60950-Compliant Germany - TUV Certified Standard Parts List Part Number Qty Description Chassis CSE-815TQ-R700UB 1 1U Chassis (Black) Backplane BPN-SAS-815TQ-O-P 1 BPN-SAS-815TQ-O-P Cable 1 CBL-0180L-01 1 SATA SET OF 4-70/59/48/38CM ROUND S-RA, PBF Cable 2 CBL-0157L 1 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF Power Supply PWS-704P-1R 2 1U REDUNDANT PWS PMBUS GOLD EFFICIENCY 54.5MM Power Distributor PDB-PT112-2420 1 SC112 20PIN REDUNDANT POWER DISTRIBUTOR Air Shroud MCP-310-18002-0N 1 SC815/113 Intel DP X8.X7 PC air shroud 12x13MB Accessory ACC815-00-2B 1 Accessories Box for SC815 with two power cords and FDD acc. Cable 3 CBL-0191L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE, 20", 50CM,PBF Peripheral Drive 1 CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS Fan 1 CSE-PT0100 2 CSE-PT0100 Dummy fan for 40x56 counter-rotating fan Fan 2 FAN-0086L4 4 40x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M Front Panel MCP-280-81501-0N 1 Front control board (FP815U) for SC815U Fan Holder CSE-PT0135 1 FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS Drive Tray(s) MCP-220-00024-0B 4 Black gen 5 hot-swap 3.5" HDD tray (w/ plastic rails) Mounting Rails CSE-PT51L 1 Silver chassis rail set for SC813,814,815,816,819 Rear Window MCP-240-00084-0N 1 UIO rear window for SC113 redundant PWS Optional Parts List Part Number Qty Description Front Tray CSE-PT40(B) - Front USB and COM tray (Occupies Slim Floppy Drive Location) Heatsink / Retention - - Please refer to our Thermal Components Matrix Mounting Rails MCP-290-00056-0N MCP-290-00052-0N-BULK MCP-290-00054-0N - - - 19" to 26.4" outer rail, /quick, for 1U 17.2" W chassis 25.6" to 33.05" outer rail, /quick, for 1U 17.2" W chassis (10 sets/pack) 25.6" to 33.05" rail set, quick/quick, for 1U 17.2" W chassis Peripheral Drives FPD-TEAC-S(B) CSE-PT91L - - TEAC 3.5" 1.44MB Slim Floppy Drive (B = black) Slim FDD kit Peripheral Drives DVM-PNSC-824B CSE-PT92L - - Black slim IDE DVD (8x DVD, 24x CDR), Panasonic Slim IDE DVD kit (include backplane, cable) Peripheral Drives DVM-TEAC-824B DVM-TEAC-DVD-SBT1 DVM-PNSC-DVD-SBT1 MCP-220-81502-0N - - - - Black slim IDE DVD (8x DVD, 24x CDR), TEAC Black slim SATA DVD (8x DVD, 24x CDR), TEAC Black slim SATA DVD (8x DVD, 24x CDR), Panasonic Slim SATA DVD kit (include backplane, cable) Trays MCP-220-83601-0B MCP-290-00036-0B - - Black FDD dummy tray, supports 1x 2.5" slim HDD (9.6mm thick) Black DVD dummy tray, supports 1x 2.5" slim HDD (9.6mm thick)
