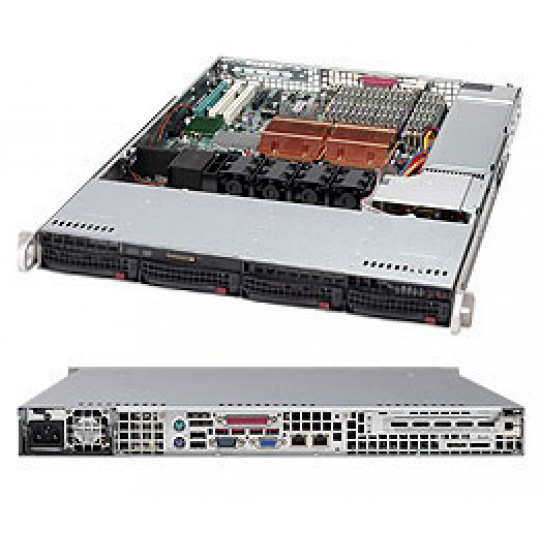

1U chassis support for max. motherboard size - 12" x 10" ATX podpora Supermicro Motherboard PDSML-LN2+ Dimensions Height * 1.7" (43mm) Width * 16.8" (426mm) Depth * 22.6" (574mm) Gross Weight * 27 lbs (12.3kg) Available Colors * Beige, Black Expansion Slots 1x full-size full-length PCI, PCI-X, or PCI-Express expansion slot (via riser card - not included) Drive Bays Hot-swap * 2 x 3.5" SAS / SATA Hot-swap drive bays SATA Backplane 1x 1U Serial ATA backplane Peripheral Drives Floppy * Panasonic 3.5" 1.44MB Floppy Drive (Optional) CD-ROM * TEAC Slim 24x CD-ROM drive (Optional) Front Panel Buttons * Power On/Off button * System Reset button LEDs * Power LED * Hard drive activity LED * 2x Network activity LEDs * System Overheat LED Ports * none System Cooling Fans * 3x 3-pin Counter-rotating Cooling Fans Operating Environment (System) Operating Temperature Range * 10 - 35°C (50° to 95° F) Non-Operating Temperature Range * -40 - +60°C (-40° to 158° F) Humidity Range * 8 - 90% non-condensing Non-Operating Humidity Range * 5 - 95% non-condensing Power Supply Fixed 300W AC power supply module with PFC [ 24-pin, (4-pin=12V), 4-pin HDD ] AC Voltage * 100 - 240V, 60-50Hz, 5 Amp DC Output * 5V + 3.3V ? 100W +5V * 25 Amp +5V standby * 2.0 Amp +12V * 24.0 Amp (Max) -12V * 1.0 Amp +3.3V * 15.0 Amp Regulatory (Power Supply) Power Supply Safety / EMC * USA - UL listed, FCC * Canada - CUL listed * Germany - TUV Certified * Europe/CE Mark * EN 60950/IEC 60950-Compliant Standard Parts List Part Number Qty Description Chassis CSE-811T-300 CSE-811T-300B 1 1 1U Chassis (beige) 1U Chassis (black) Backplane CSE-SATA-810 1 2-Port SATA Backplane Cable(s) CBL-0044 CBL-0051 CBL-0052 CBL-0099 2 1 1 1 24" SATA Cable 23.6" Floppy Round Cable 23.6" IDE Round Cable Extended Power Cable from HDD to 2HDD+2FDD Fan(s) FAN-0087 CSE-PT97 3 1 1U, 3-pin Counter-rotating Cooling Fan Fan Air Shroud Hard Drive Carrier(s) CSE-PT10(B)-OEM 2 Hard Drive Carrier (B = Black) Mounting Rail(s) CSE-PT08 1 1U Chassis Mounting Rails and Kit Power Supply PWS-0054 1 SP302-1S Cold-swappable 300W 1U power supply Optional Parts List Part Number Qty Description Heatsink / Retention - - Please refer to our Thermal Components Matrix Peripheral Drives FPD-PNSC-02(01) CDM-TEAC-24(B) - - Panasonic 3.5" 1.44MB Floppy Drive (01 = Black) Slim 24x TEAC CD-ROM Drive (B = Black)
