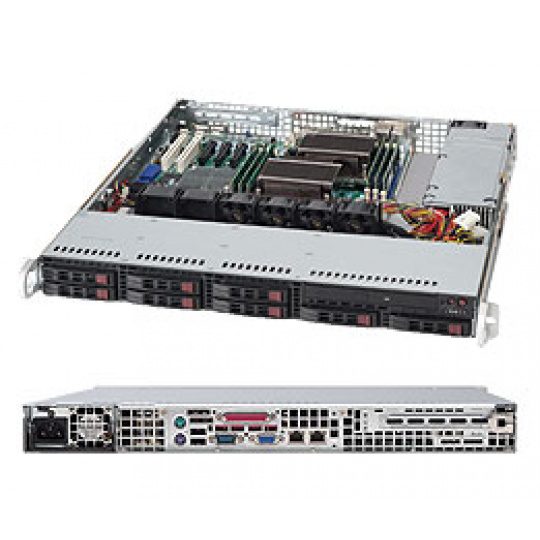

Key Features 1. 560W High-efficiency power supply, 80 PLUS Silver Level Certified 2. 8x Hot-swap 2.5" SAS/SATA HDD trays 3. 1x Full-height AOC expansion slot 4. 4x 40x28mm high-efficiency fans (6x fans maximum) 5. Supports motherboard size up to: 13.68" (347mm) x 10.5" (267mm) 6. Optimized for DP (low power) and UP motherboards Available Color Black Downloads Chassis Manual Product SKUs CSE-113MTQ-560CB SuperChassis 113MTQ-560CB (Black) Form Factor 19.98" Depth 1U Rackmount Chassis - support M-ATX (9.6" x 9.6") and ATX (12" x 10") motherboard (max MB size support: 13.68" x 10.5") Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 1.7" (43mm) Width 17.2" (437mm) Depth 19.98" (508mm) Packaging 24" (W) x 8.5" (H) x 30" (L) Weight Net Weight: 18.5 lbs (8.4kg) Gross Weight: 29.5 lbs (13.4kg) Available Color Black Expansion Slots • 1x Full-height AOC expansion slot Drive Bays Internal Bay 8x Hot-swap 2.5" SAS/SATA HDD trays SAS or enterprise SATA HDD only recommended SAS / SATA Backplane 1x 1U SAS / SATA backplane with SES2 Peripheral Drives DVD-ROM Slim DVD-ROM drive Front Panel Buttons Power On/Off button System Reset button UID button LEDs Power status LED HDD activity LED 2x Network activity LEDs Universal Information (UID) LED System Cooling Fans 4x 40x28mm high-efficiency PWM fans 6x fans maximum Operating Environment (System) Operating Temperature Range 10 - 35°C (50° - 95°F) Non-Operating Temperature Range -40 - 70°C (-40° - 158°F) Humidity Range 8 - 90% non-condensing Non-Operating Humidity Range 5 - 95% non-condensing Power Supply 560W AC to DC power supply w/ PFC AC Voltage 100-240 V, 50-60 Hz, 6.5-2.6 Amp +5V 15 Amp +5V standby 2 Amp +12V 46.5 Amp -12V 0.5 Amp +3.3V 15 Amp Certification 80 PLUS Silver Certified [ Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed CCC Certification EN 60950/IEC 60950-Compliant Europe/CE Mark Germany - TUV Certified Standard Parts List Part Number Qty Description Chassis CSE-113MTQ-560CB 1 1U Chassis (Black) Backplane BPN-SAS-113TQ 1 Sup 8x2.5" Hot-swap SAS/SATA hdd; SATA con Power Supply PWS-562-1H 1 560W MULTIPLE OUTPUT W/HARNESS STD 24PIN Accessory MCP-420-11301-0N 1 Accessory Box For SC113 Chassis With One Power Cord Cable 1 CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF Peripheral Drive DVM-TEAC-DVD-SBT 1 Black slim SATA DVD, TEAC Fan FAN-0065L4 4 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M Front Panel MCP-280-00017-0N 1 FRONT PANEL CONTROL BOARD FOR SC113 Fan Holder MCP-320-00024-0N 1 Fan Holder for six 40X28 fan Drive Trays MCP-220-00047-0B 8 Black gen 3 hot swap 2.5" HDD tray Part(s) MCP-290-00037-0N 1 SC113 Control panel module (w/o DVD) Part(s) MCP-340-00001-01 2 Dummy fan 40x28mm Mounting Rails CSE-PT52L 1 Sliver chassis rail set for SC813M,515,113M Optional Parts List Part Number Qty Description Air Shroud MCP-310-00026-01 MCP-310-00033-01 MCP-310-18003-0N - - - Air shroud for H8 DP motherboards Air shroud for X7, H8 UP motherboards Air shroud for X8 DP ATX motherboards Mounting Rails MCP-290-00056-0N MCP-290-00052-0N-BULK - - 19" to 26.4" outer rail, /quick, for 1U 17.2" W chassis 25.6" to 33.05" outer rail, /quick, for 1U 17.2" W chassis (10 sets/pack) Tray MCP-290-00036-0B - Black DVD dummy tray, supports 1x 2.5" slim HDD Tray MCP-220-00087-0B - USB tray for 113 chassis
