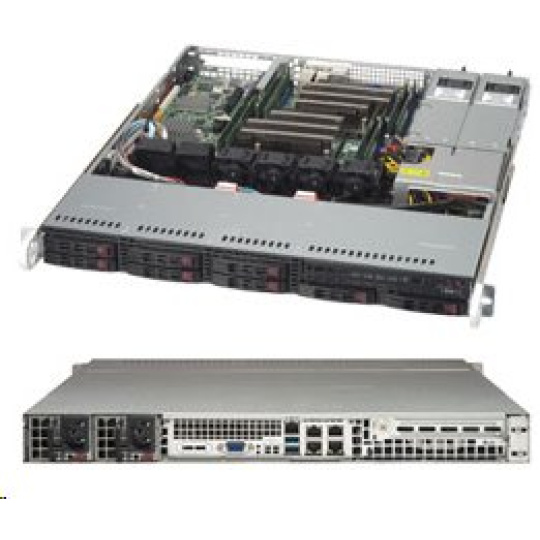

Key Features 1U Chassis, support motherboard size: ATX 12" x 10" 8 x 2.5" hot-swap SAS/SATA drive bay 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices 1U 600W Redundant Single Output Power Supply w/PMBus, short depth, W54.5xL220xH40 1 full height expansion slot(s) 4 x 40x28mm PWM fan(s) Optional 2 x fans for AOC cooling roduct SKUs CSE-113MFAC2-R606CB SuperChassis 113MFAC2-R606CB Form Factor 1U Chassis, support motherboard size: ATX 12" x 10" Processor Support Dual and Single Intel® and AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 19.98" (507 mm) Gross Weight 30 lbs (13.61 kg) Packaging (W x H x L) 24" (610 mm) x 8.3" (211 mm) x 30" (762 mm) Available Color Black Expansion Slots 1 full height expansion slot(s) Drive Bays 8 x 2.5" hot-swap SAS/SATA drive bay Backplane 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices Peripheral Drives Optional 1 x slim DVD-ROM drive bay Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs HDD activity LED Power Status LED Unit Identification (UID) LED Motherboard (for CSE- 113MFAC2-R606CB) X10SRH-CF X10SRH-CLN4F X10DRL-CT X10DRL-iT X10DRL-C X11SSH-F X11SSH-LN4F X11SSi-LN4F X11SSL-F X11SSL-CF X11SSL-nF X11SSL X11SSM-F X11SSM X11SSH-CTF X11SSH-TF X10SRM-TF X10SRM-F X11SSH-GTF-1585 X11SSH-GF-1585 X11SSH-GTF-1585L X11SSH-GF-1585L Servers (for CSE- 113MFAC2-R606CB) 1028R-MCTR Systems Cooling Fans 4 x 40x28mm PWM fan(s) Optional 2 x fans for AOC cooling System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 600W Redundant Single Output Power Supply w/PMBus, short depth, W54.5xL220xH40 Power Efficiency 94% Total Output Power and Input 600W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 220 x 54.5 x 40 mm Output Type Backplanes (gold finger) +12V Max: 50A / Min: 0.5A (100Vac - 240Vac) +5Vsb Max: 3A / Min: 0A Power Distributor PDB-PT813M-2424 O/P: 120/62 +5V Max: 25 +3.3V Max: 25 -12V Max: 0.6 Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A TUV/CB UL/CUL
