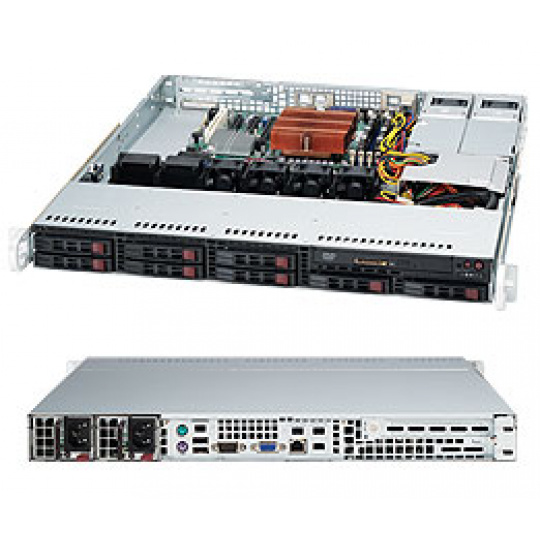

Key Features 1. 400W Redundant power supplies 2. 8x 2.5" Hot-swap SAS2 (6Gb/s) / SATA Drive Bays 3. 1x Full-height AOC expansion slot 4. 4x 40x28mm high-efficiency fans (2 more optional; 6x fans maximum) 5. Slim DVD/CD-ROM Drive (opt.) 6. Applications: data center, appliance server, space critical application, industrial PC Product SKUs CSE-113MTQ-R40CB SuperChassis 113MTQ-R400CB (Black) Form Factor 19.98" Depth 1U Rackmount Chassis - support M-ATX (9.6" x 9.6") and ATX (12" x 10") motherboard Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 1.7" (43mm) Width 17.2" (437mm) Depth 19.98" (508mm) Packaging 24" (W) x 8.5" (H) x 30" (L) Weight Net Weight: 21 lbs (9.5kg) Gross Weight: 33 lbs (15kg) Available Color Black Expansion Slots • 1x Full-height AOC expansion slot Drive Bays Hot-swap 8x 2.5" Hot-swap SAS2 (6Gb/s) / SATA HDD trays SAS or enterprise SATA HDD only recommended SAS / SATA Backplane 1x 1U SAS / SATA backplane Peripheral Drives DVD-ROM Slim DVD-ROM drive or Front USB Front Panel Buttons Power On/Off button System Reset button UID button LEDs Power status LED HDD activity LED 2x Network activity LEDs Universal Information (UID) LED System Cooling Fans 4x 40x28mm high-efficiency PWM fans 2x additional fans optional; 6x fans total maximum Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 400W (1+1) Redundant SuperCompact Short-depth AC-DC high-efficiency power supply with PMBus and I2C AC Input 400W: 100-240 V, 50-60 Hz, 6-3 Amp DC Output +5V standby 3 Amp DC Output +12V 33 Amp With Power Distributor +5V: 25 Amp +3.3V: 25 Amp -12V: 0.6 Amp Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed EN 60950/IEC 60950-Compliant Europe/CE Mark Taiwan - BSMI Standard Parts List Part Number Qty Description Chassis CSE-113MTQ-R400CB 1 Black 1U standard SC113MTQ chassis w/ Redundant 400W Backplane BPN-SAS-113TQ 1 Sup 8x2.5" Hot-swap SAS/SATA hdd; SATA con Cable 1 CBL-0227L 2 48CM SATA ROUND S-RA PBF Cable 2 CBL-0206L 2 48CM SATA ROUND S-S PBF Cable 3 CBL-0157L 2 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF Power Supply PWS-406P-1R 2 1U 400W Redundant Short Depth Power Supply Power Distributor PDB-PT813M-2424 1 Power Distributor With 24pin for SC813M Accessory MCP-420-11305-0N 1 Accessory Box For SC113M Chassis With Two Power Cord Cable 4 CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF Peripheral Drive 1 MCP-290-00036-0B 1 Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836 Fan 1 FAN-0065L4 4 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M Front Panel FP112 1 Front control board for SC113,113M (U/C share Fan Holder MCP-320-00031-0B 1 Fan tray for six 40x28 fans(SC813M/113M) Drive Tray(s) MCP-220-00047-0B 8 Black gen 3rd hot-swap 2.5inch HDD tray Part(s) MCP-290-00037-0N 1 SC113 Control panel module (w/o DVD) Part(s) MCP-340-00001-01 2 Dummy fan 40x28mm Part(s) MCP-260-00024-0N 1 1U I/O shield for X8 server MB (3rd LAN + 4xLAN) Mounting Rails MCP-290-00102-0N 1 Outer rail, quick-release type, 25.6 Mounting Rails MCP-290-00107-0N 1 Inner rail, front, short, screw type Mounting Rails MCP-290-00109-0N 1 Inner rail, extension (screw) for 1U 17.2 Rear Window MCP-240-00086-0N 1 STD rear window for SC113 redundant PWS
