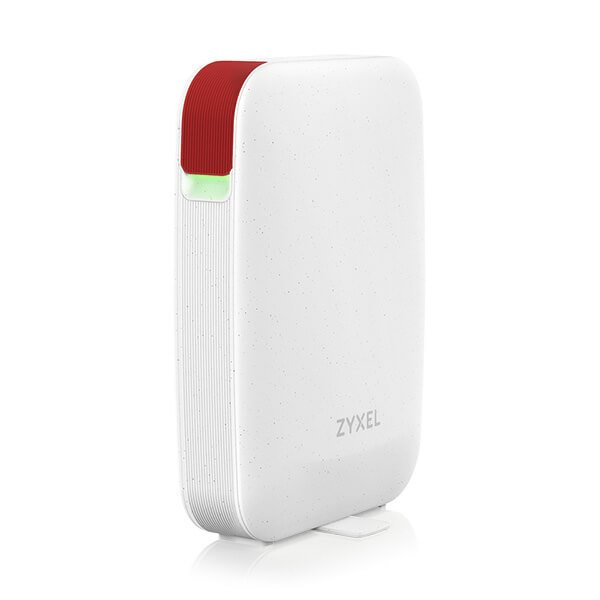

Zoznámte sa s USG LITE 60AX, inovatívnym vysokovýkonným zariadením s duálnymi 2,5GbE portami, ktoré ponúka jednoduché nastavenie a robustné zabezpečenie siete prispôsobené pre malé/domáce kancelárie a pracovníkov na diaľku. USG LITE 60AX vám umožňuje rýchlo vybudovať bezpečné pripojenie (site-to-site VPN, vzdialený prístup VPN) pomocou niekoľkých jednoduchých krokov, čo firmám uľahčuje rozšíriť ich dosah na vzdialených pracovníkov, ako sú pracovníci pracujúci z domu alebo telepracovníkov, ktorí často vyžadujú bezpečný vzdialený prístup do siete (sietí) svojej centrály.

Hardware Specifications
CPU

Quad-core, 2.00GHz

RAM/FLASH

1GB/512MB

Ethernet ports

WAN: 1 x 100/1000/2500 Mbps

LAN: 1 x 100/1000/2500 Mbps

4 x 100/1000 Mbps

System Capacity & Performance
SPI firewall throughput LAN to WAN (Mbps)

2,000

Bridge mode throughput (Mbps)

2,000

DPI throughput Application on (routing mode) (Mbps)

2,000

Throughput with threat management on (Mbps)

2,000

VPN throughput TCP single session (Mbps)

100

VPN throughput UDP 1424 (Mbps)

300

Max. TCP concurrent sessions

20,000

Max. gateway-to-gateway IPsec VPN tunnels

3

Max. concurrent IPSec VPN tunnels

5

Max. remote VPN tunnels

5

Wireless Specifications
Standard

IEEE802.11 ax/ac/n/g/b/a

MIMO

MU-MIMO

Wireless speed

2.4 GHz: 1148 Mbps

5 GHz: 4804 Mbps

Frequency band

2.4 GHz:

USA (FCC): 2.412 to 2.462 GHz

Europe (ETSI): 2.412 to 2.472 GHz


5 GHz:

USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz

European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth

20-, 40- ,80-, and, 160-MHz

Conducted typical transmit output power*1

US (2.4GHz/5GHz):

29.98/29.82 dBm

EU (2.4GHz/5GHz):

19.92/29.90 dBm

Wireless security

Open, WPA2-PSK

SSID number

8

MESH Networking

Yes*1

Antenna type

4 (internal)

Antenna gain

2.4Ghz 2.0dBi 4x4: 4SS

5Ghz 3.0dBi 4x4: 4SS

Security Features
Ransomware / malware prevention

Yes

Intrusion blocker

Yes

Dark Web Blocker

Yes

Stop mail fraud & phishing

Yes

Block Ads

Yes

Block VPN proxy

Yes

Firewall

Yes

Country Restriction (GeoIP)

Yes

Exception list

Yes

Custom allowed / blocked domain

Yes

Traffic Management (applications & clients)

Yes

Security event analytics

Nebula Threat Report

Real-time threat intelligence*2

Yes

Web Filtering (Content Filter)*2

Yes

VPN Features
Site2site VPN

IPSec

Remote access VPN

Yes

Networking Features
WAN Type

DHCP/Static IP/PPPoE

Reserve IP (IP/MAC binding)

Yes

Block clients

Yes

Virtual Server (NAT)

Yes

DHCP server and DHCP relay

Yes

Dynamic DNS

Yes

Static route

Yes

Guest Network

Yes

VLAN

4

Management
Onboarding WAN setting method

Yes

Site-wide SSID management

Yes

Multi-site management

Yes

Diagnostics

Yes

Remote support

Yes

Configuration backup and restore

Yes

Live tools

Yes

Nebula Pro Pack - Advance feature set*2

Yes

Power Requirements
Power input

12 V DC, 3.0 A

Max. power consumption (Watt Max.)

31W

Physical Specifications
Item

Dimensions (WxDxH)(mm/in.)
161.7 x 65 x 229 mm (6.37” x 2.56” x 9.02”)

Weight (g/lb.)
707/1.56

Environmental Specifications
Operating

Temperature
0°C to 40°C (32°F to 104°F)

Humidity
5% to 95% (Non-condensing)

Storage

Temperature
-30°C to 70°C (-22°F to 158°F)

Humidity
5% to 95% (Non-condensing)

Certifications
CE

Yes

FCC

Yes
