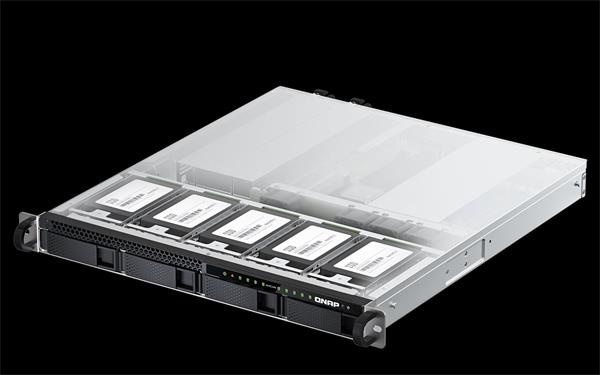

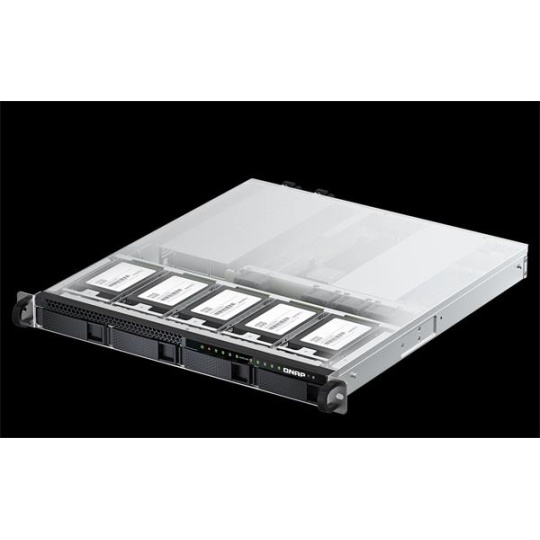

TS-h987XU-RP-E2334-16G CPU Intel® Xeon® E-2334 4C 8T 3.4GHz, up to 4.8GHz CPU Architecture 64-bit x86 Floating Point Unit Encryption Engine (AES-NI) System Memory 16 GB ECC DDR4 (1 x 16 GB) Maximum Memory 128GB (4 x 32 GB) Memory Slot 4 x ECC UDIMM DDR4 For dual-DIMM configuration, you must use a pair of identical DDR4 modules. Flash Memory 5GB (Dual boot OS protection) Drive Bay 9 (4 x 3.5-inch SATA + 5 x 2.5-inch U.2 PCIe / SATA) 2.5-inch bays: #1: PCIe Gen3 x2 & SATA 6Gbps #2: PCIe Gen3 x2 & SATA 6Gbps #3: PCIe Gen3 x2 & SATA 6Gbps #4: PCIe Gen4 x4 & SATA 6Gbps #5: PCIe Gen4 x4 & SATA 6Gbps Drive Compatibility 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch U.2/U.3 NVMe PCIe solid state drives 2.5-inch SATA solid state drives The 2.5-inch bay only support maximum 7mm height drives. M.2 Slot Optional via a QM2 PCIe adapter SSD Cache Acceleration Support GPU pass-through 2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M) 10 Gigabit Ethernet Port 2 x 10GBASE-T (10G/5G/2,5G/1G/100M) PCIe Slot 1 x Gen4 x8 USB 3.2 Gen 2 (10Gbps) Port 4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps Form Factor 1U Rackmount LED Indicators Status (Green/Red) LAN (Green) HDD status (Green/Red) Buttons Power, Reset Dimensions (HxWxD) 43.3 × 430 × 479 mm Weight (Net) 8.43 kg Weight (Gross) 11.13 kg Operating Temperature 0 - 40 °C (32°F - 104°F) Relative Humidity 5~95% RH non-condensing, wet bulb: 27°C (80.6°F) Power Supply Unit 2 x 250W PSU Fan 4 x 40mm, 12VDC
