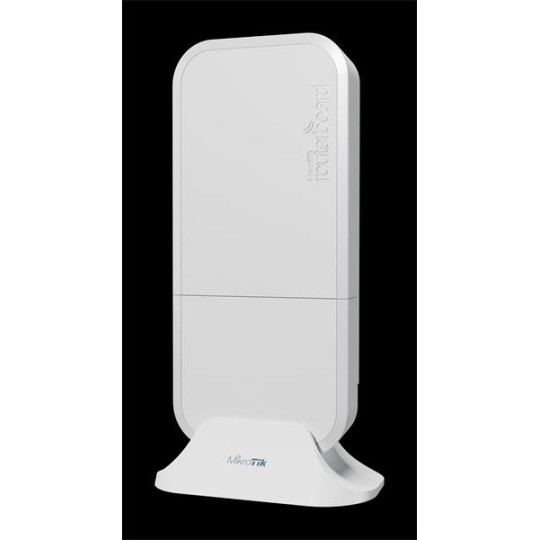

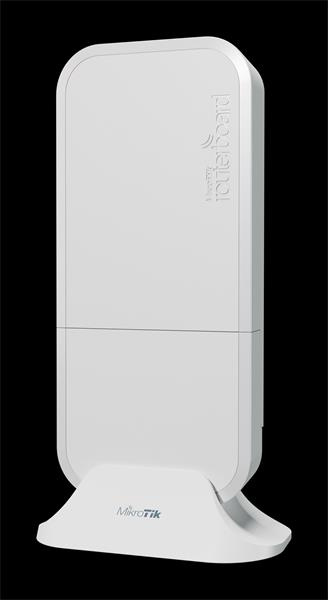

wAP ax brings fast and reliable Wi-Fi 6 to your countryside getaway or any other challenging environments – like a rural gas station or a bus stop.

Specifications
Details
Product code wAPG-5HaxD2HaxD
Architecture ARM
CPU IPQ-5010
CPU core count 2
CPU nominal frequency 800 MHz
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Wireless capabilities
Details
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model IPQ-5010
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 2400 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 7
Wireless 5 GHz chip model QCN-6102
Wireless 5 GHz generation Wi-Fi 6
WiFi speed AX3000

Ethernet
Details
10/100/1000 Ethernet ports 2

Powering
Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 9 W
Max power consumption without attachments 9 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V

Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP 54

Other
Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
