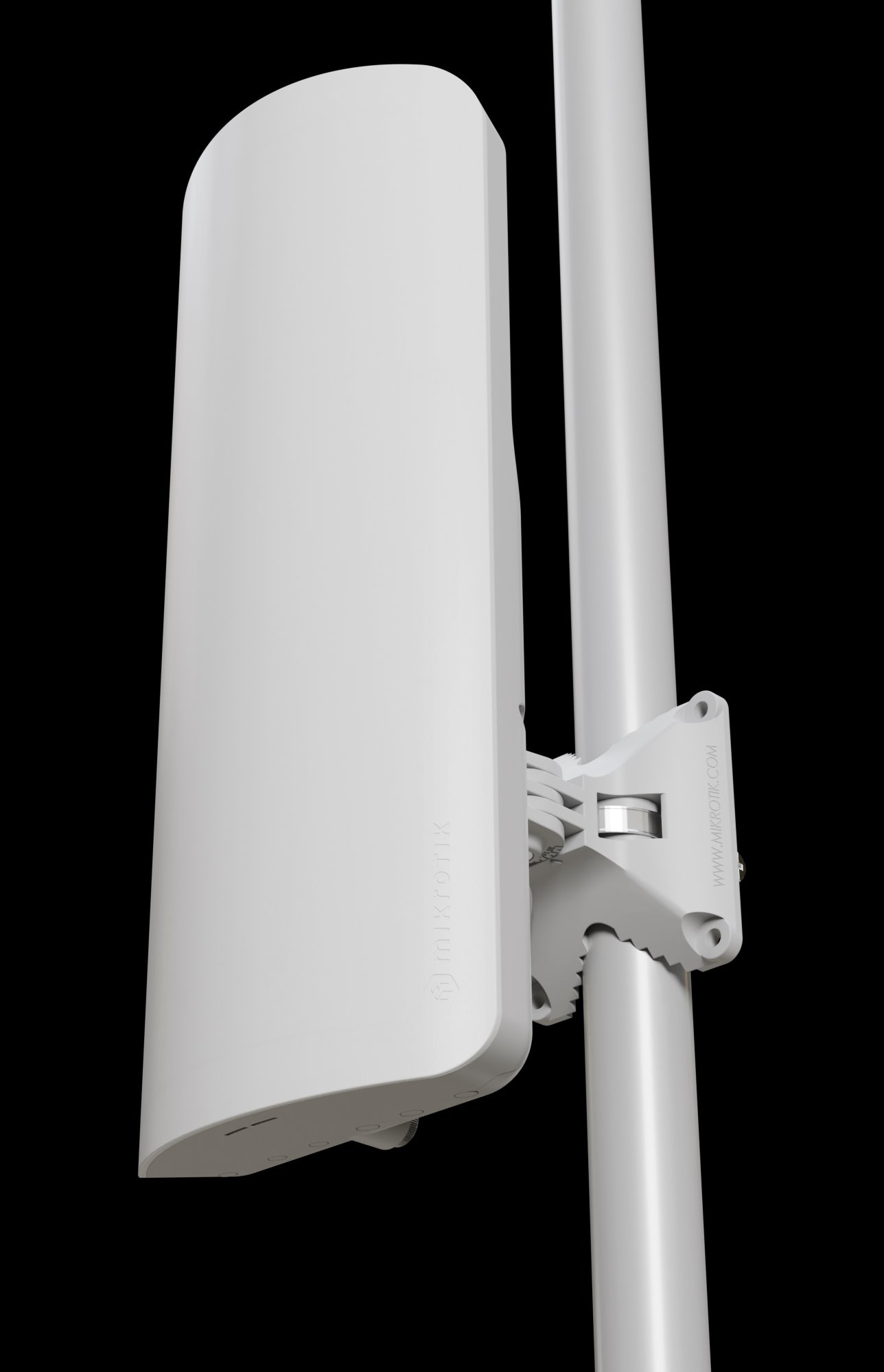

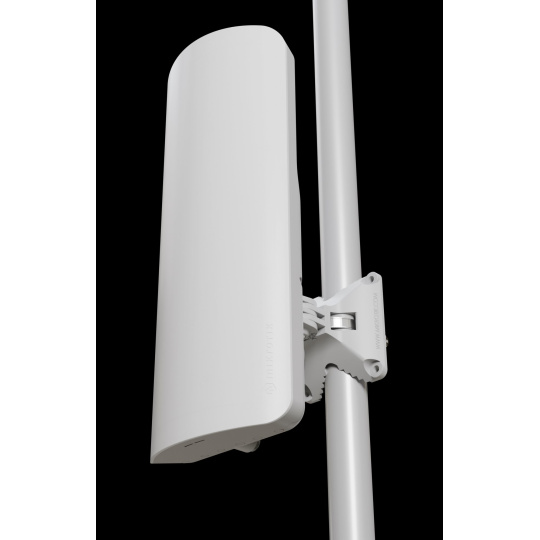

A drop-in Wi-Fi 6 upgrade for the popular mANTBox dual-band sector antenna base stations. One powerful package for all your outdoor network needs, perfect for camps, stadiums and parks.

Specifications
Details
Product code L22UGS-5HaxD2HaxD-15S
Architecture ARM
CPU IPQ-5010
CPU core count 2
CPU nominal frequency 800 MHz
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering
Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-28 V
Max power consumption 21 W
Max power consumption without attachments 11 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-28 V

Wireless specifications
Details
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 12
Wireless 2.4 GHz chip model IPQ-5010
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 2400 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 15
Wireless 5 GHz chip model QCN-6102
Wireless 5 GHz generation Wi-Fi 6

Ethernet
Details
10/100/1000 Ethernet ports 1

Fiber
Details
SFP ports 1 (2.5G supported)

Peripherals
Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1.5

Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP 55

Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 27 -100
11MBit/s 27 -94
6MBit/s 29 -96
54MBit/s 27 -80
MCS0 29 -96
MCS7 26 -75
MCS9 24 -70
MCS11 22 -67

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 28 -96
54MBit/s 26 -80
MCS0 28 -96
MCS7 25 -75
MCS9 23 -70
MCS11 20 -67
