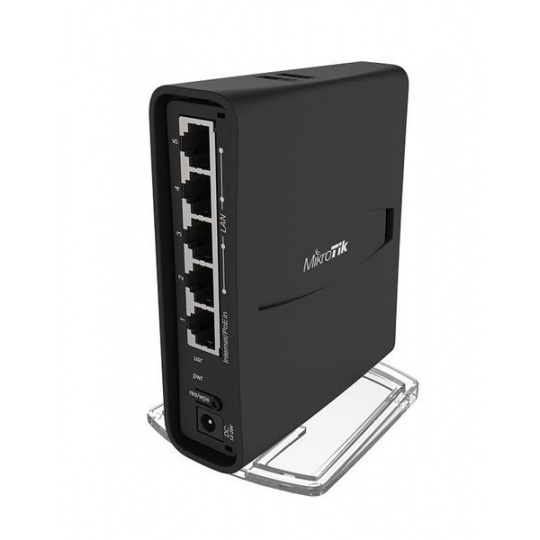

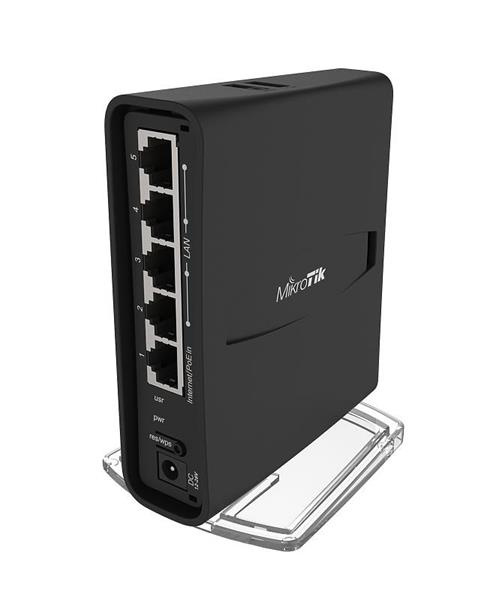

MIKROTIK RouterBOARD hAP AC2 + L4 (716MHz; 128MB RAM, 5xGLAN switch, 1x 2,4+5GHz 802.11ac plastic case, zdroj)
MIKROTIK RouterBOARD hAP AC2 + L4 (716MHz; 128MB RAM, 5xGLAN switch, 1x 2,4+5GHz 802.11ac plastic case, zdroj)
Specifications
| Details | |
| Product code | RBD52G-5HacD2HnD-TC |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Dimensions | 34 x 119 x 98mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C .. +50°C |
Powering
| Details | |
| Max Power consumption | 15W |
| PoE in | Passive PoE |
| PoE in input Voltage | 18-28 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-30 V |
Wireless
| Details | |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| Wireless 2.4 GHz chip model | IPQ-4018 |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11ac |
| Antenna gain dBi for 5 GHz | 2.5 |
| Wireless 5 GHz chip model | IPQ-4018 |
Ethernet
| Details | |
| 10/100/1000 Ethernet ports | 5 |
Peripherals
| Details | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
| 1MBit/s | 27 | -100 |
| 11MBit/s | 27 | -94 |
| 6MBit/s | 27 | -96 |
| 54MBit/s | 24 | -78 |
| MCS0 | 27 | -96 |
| MCS7 | 23 | -73 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 22 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 21 | -75 |
| MCS9 | 19 | -70 |
