Details

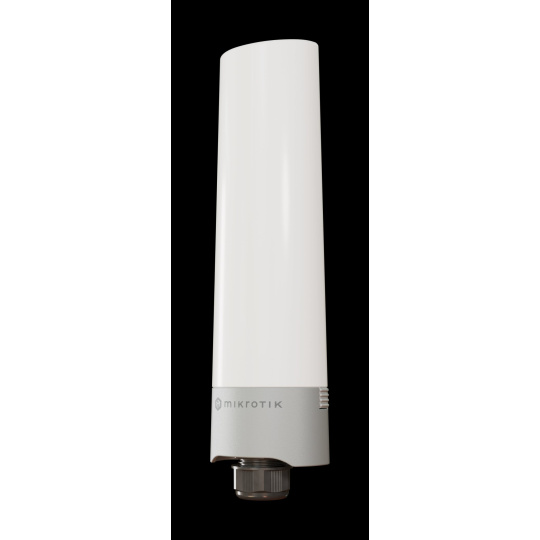

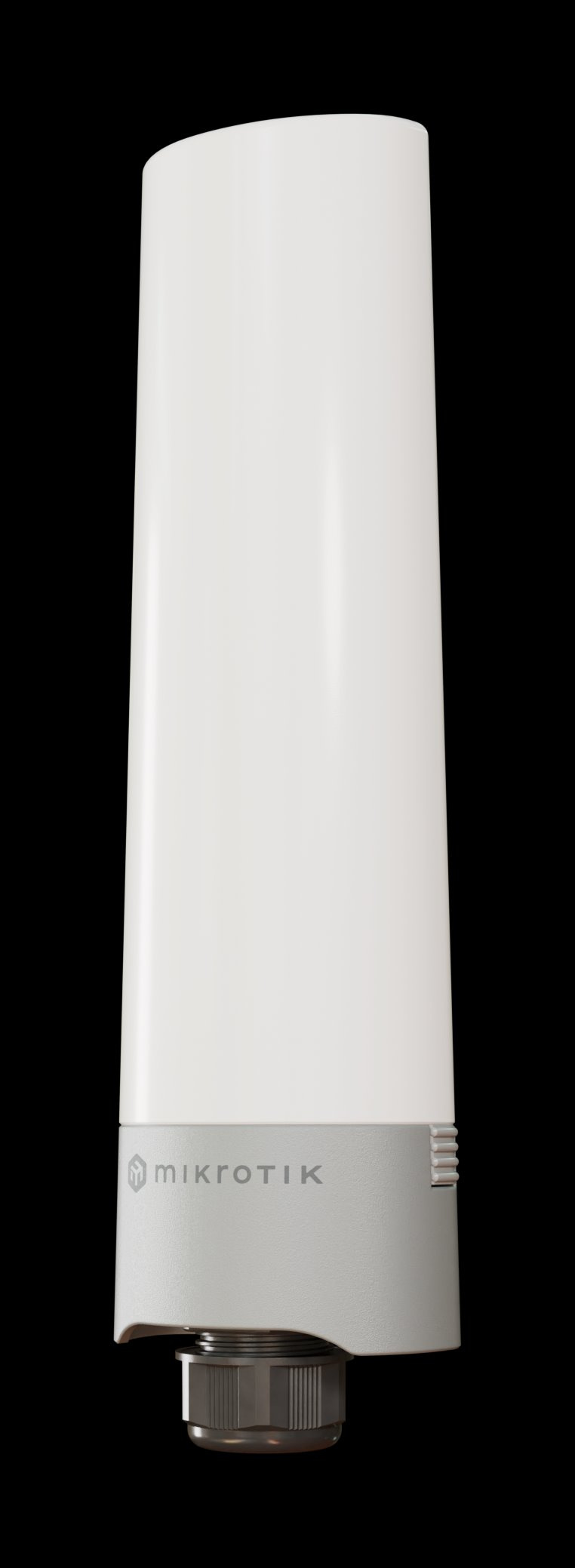

Product code GPER14i
10/100/1000 Ethernet ports 4
2-pin terminal input Voltage 24-57 V
CPU nominal frequency 200 MHz
Can be used outdoors Yes
Certification CE, EAC, ROHS
IP 68
Max out per port output (input 18-30 V) 0.7 A
Max out per port output (input 30-57 V) 0.6 A
Max power consumption 115 W
Max power consumption without attachments 4 W
Max total out (A) 2.0 A
Number of 1G Ethernet ports with PoE-out 3
Number of DC inputs 2 (PoE-IN, 2-pin terminal)
PoE in 802.3 bt
PoE in input Voltage 48-57 V
PoE out 802.3af/at
PoE-out ports Ether2-Ether4
Storage size 64 KB
Storage type FLASH
Switch chip model 88E6341
Tested ambient temperature -40°C to 70°C
