Specifications
Details

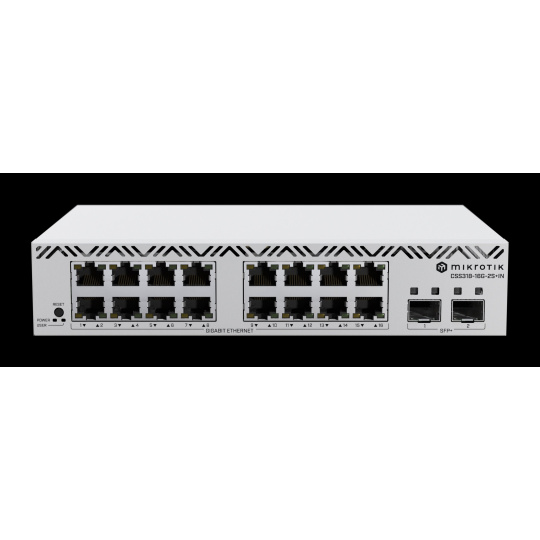

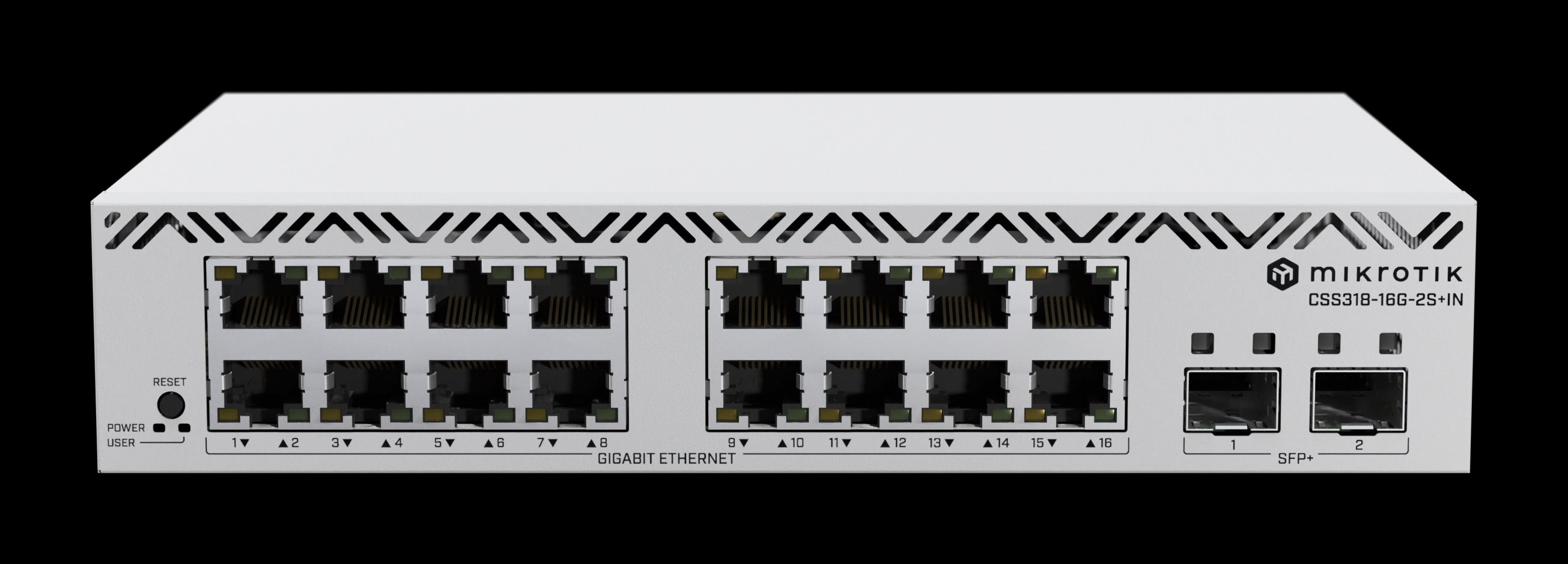

Product code CSS318-16G-2S+IN
Switch chip model 98DX2518
Operating System SwOS
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering
Details
Number of AC inputs 1
AC input range 100-240
Frequency (Hz) 50-60
Max power consumption 13 W
Max power consumption without attachments 10 W
Cooling type Passive

Ethernet
Details
10/100/1000 Ethernet ports 16

Fiber
Details
SFP+ ports 2
Other
Details
CPU temperature monitor Yes

Certification & Approvals
Details
Certification CE, EAC, ROHS
IP 20
