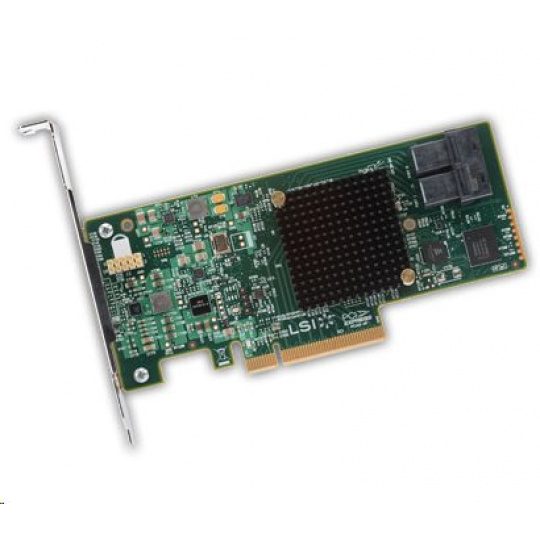

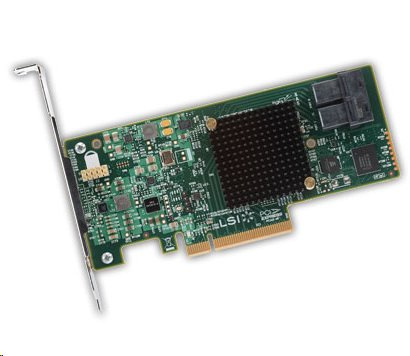

Product Ordering Part # What's in the box MegaRAID SAS 9341-8i LSI00408 MegaRAID SAS 9341-8i, Specifications Value RAID-on-Chip Controller LSISAS3008 PowerPC 476 controller @ 1.2 GHz RAID Management Software MegaRAID Storage Manager StorCLI (command-line interface) CTRL-R (BIOS configuration utility) HII (UEFI Human Interface Infrastructure) Cache Protection – Physical Dimensions 6.6" x 2.536" (Low-Profile) Host Bus Type x8 lane PCI Express® 3.0 Cache Memory – Internal Ports 8 Data Transfer Rates Up to 12Gb/s per port Devices Supported Non-RAID (JBOD Mode): 64 RAID 0: 32 per volume RAID 1: 2 per volume plus hot spare RAID 5: 32 per volume RAID 10: 32 per volume RAID 50: 32 per volume Internal Connectors Two HD Mini-SAS SFF8643 (Horizontal mount) MTBF >2,800,000 hours Operating Temperature 0°C to 70°C Operating Voltage +12V Operating Systems Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. * Visit the LSI download Center for the most complete list of supported operating systems: lsi.com/channel/support Regulatory Certifications EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950 Warranty 3 years, advanced replacement option, free technical support at lsi.com/support
