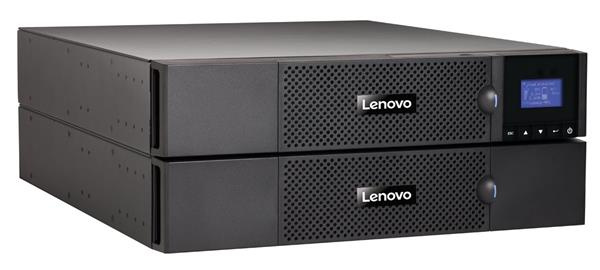

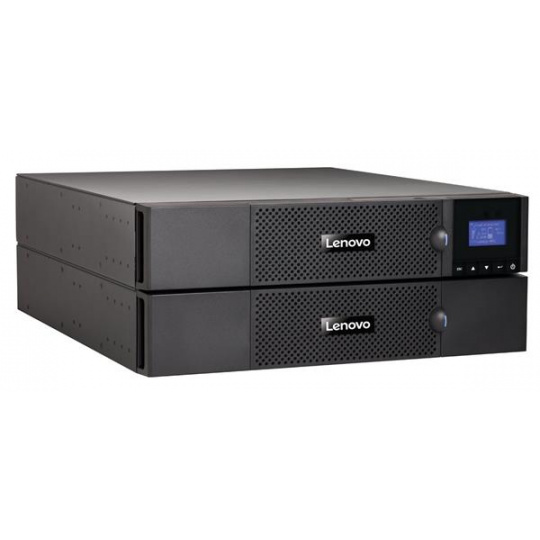

55943KX Specification RT3kVA 2U Rack or Tower UPS (200-240VAC) General Part number 55943KX Form factor 2U Rack or Tower Topology VA/Watts rating 3000 VA/2700 W Efficiency (on utility power) Up to 99% Energy Star compliant Yes Electrical input Input voltage 200 - 240 V AC Input frequency 50/60 Hz Max input amperage 16 A Input connector IEC 320 C20 (16 A) Input line cord Optional (See Table 3) Electrical output Output voltage settings 200/208/220/230/240 V AC Output frequency 50/60 Hz Output power capacity 200 V AC: 2700 VA/2430 W 208-240 V AC: 3000 VA/2700 W Output connectors 8x IEC 320 C13 (10 A) 1x IEC 320 C19 (16 A) Output load segments Master: 4x C13, 1x C19 Group 1: 2x C13 Group 2: 2x C13 Batteries Battery type Battery capacity 9 Ah Battery management Battery replacement External battery support Up to 4 (PN 55943BX) Typical backup times Communications and management USB port (Type B) Yes RS-232 serial port (RJ-45) Yes 10/100 Mbps Ethernet port (RJ-45) Yes (on the NMC) Environmental monitoring Management software Control panel LED indicators Remote On/Off and Power Off
