Power Configuration
208V, 1-Phase (L-L), 5.0kVA, 24A
Features
10kAIC Breakers;Branch Current Monitoring
Energy Metering

Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

Metering Accuracy

Class 0.5 meter

Metering per input line

Yes

Metering per Branch Circuit Breaker

Yes

Metering per Output Receptacle

Yes

Remote Outlet Switching

Yes

Power Quality Monitoring

Voltage and Current Harmonic Distortion; Distortion Power Factor; Voltage Dip and Voltage Swell; Neutral Current, Current Inrush, Crest Factor

Outlet Power Distribution

Alternating Branch

Replaceable Controller

Yes, hot-swappable

Environmental Sensor Ready

Yes

Compatible Sensors

Temperature, Humidity, Air Flow, Differential Pressure, Dust/Particle, Water Leak, Proximity/Motion, Vibration, Dry Contact, and Contact Closure.

View all sensors.

PDU Linking

Link up to 8 PDUs where the Primary PDU has knowledge and power information from the attached Expansion PDUs. Redundant power from the first expansion unit ensures uptime even if the Primary PDU loses power.

Cascading

Physically cascade 32 PDUs under one ethernet port or 16 PDUs with USB using bridging mode, or additionally, save IP addresses using a single IP address with port forwarding.

Linking

Yes, a maximum of 8 PDUs can be linked using the PDU Link Port; PDU 1 is defined as the Primary PDU and can link up to 7 additional PDUs, called Link PDUs, totaling 8 PDUs.

Networking

(10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

Remote Management

HTTP(s); SSH (CLI); Telnet; RS-232 (Serial); SNMP version v2/v3; SMTP; JSON-RPC API; MODBUS-TCP; Redfish API

Onboard Display

Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation.

Specifications
Input
Input Plug

230/32A & 240/30A IEC 60309 2P+PE 6Hr

Nominal Voltage

208V

Maximum Input Current

30A

Rated Input Current

24A

Power Capacity

5.0kVA

Cord Length

3m

Output

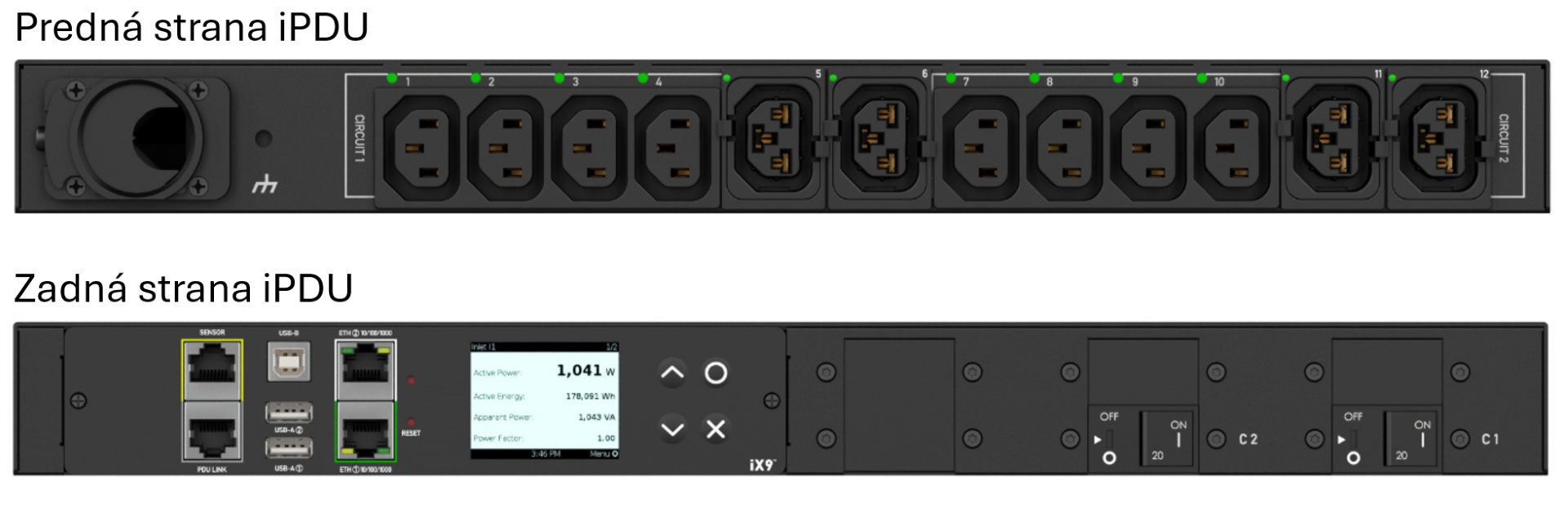

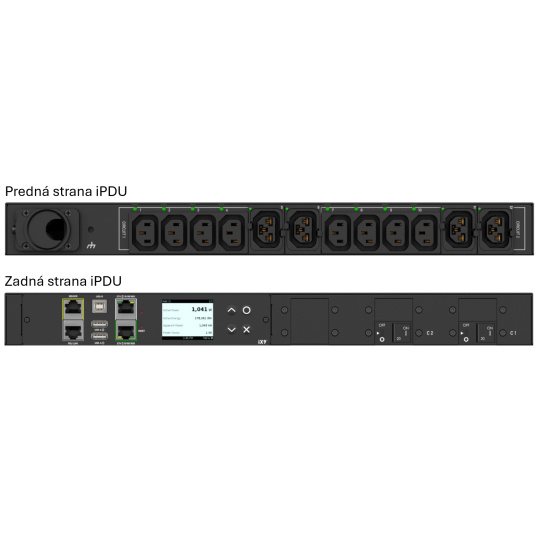

Receptacles (Output Connections)

(8) C13, (4) Cx

Overload Protection

2

Physical
Dimensions (WxDxH)

440mm x 183mm x 44mm

Unit Weight

9 lbs

Shipping Weight

14.3 lbs

Shipping Dimensions

550x372x208 mm

Mounting

RACK-KIT-DPX-1U

Environmental
Operating Temperature/Environment

60 C

Operating Relative Humidity

85%

Operating Elevation

0-10000ft

Conformance
Regulatory Approvals

UL;CE

Warranty

Standard 2 years manufacturer warranty
