Vlastnosti produktu
3-pólový 400 V~
krivka B
Nominálne hodnotenie In : 25 A
Počet modulov: 3

General characteristics

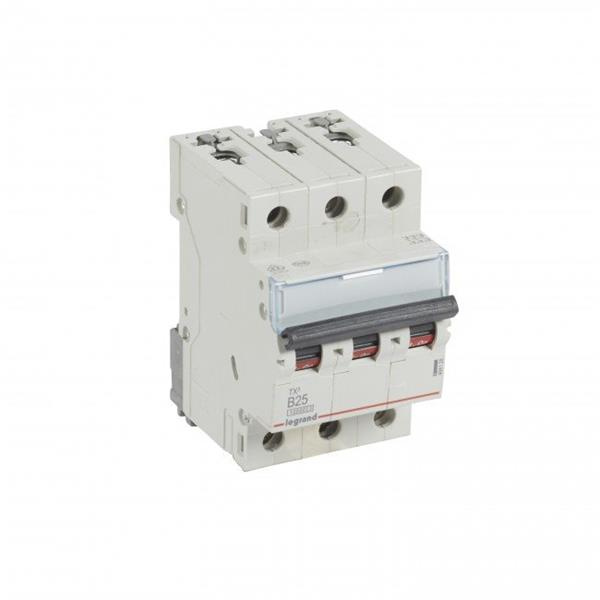

MCBs TX3 10000 - thermal magnetic MCBs from 2 A to 63 A - B & C curve
Conform to IEC 60898-1
Compatible with prong-type and fork type supply busbars
Equipped with special DIN rail clamp allowing independent MCB removal with supply busbar in place
Breaking capacity:
10000 - IEC 60898-1 - 230/400 V~
10 kA - IEC 60947-2 - 230/400 V~
Can be equipped with DX3 signalling and remote tripping auxiliaries and motorised controls
Do not accept add-on modules
