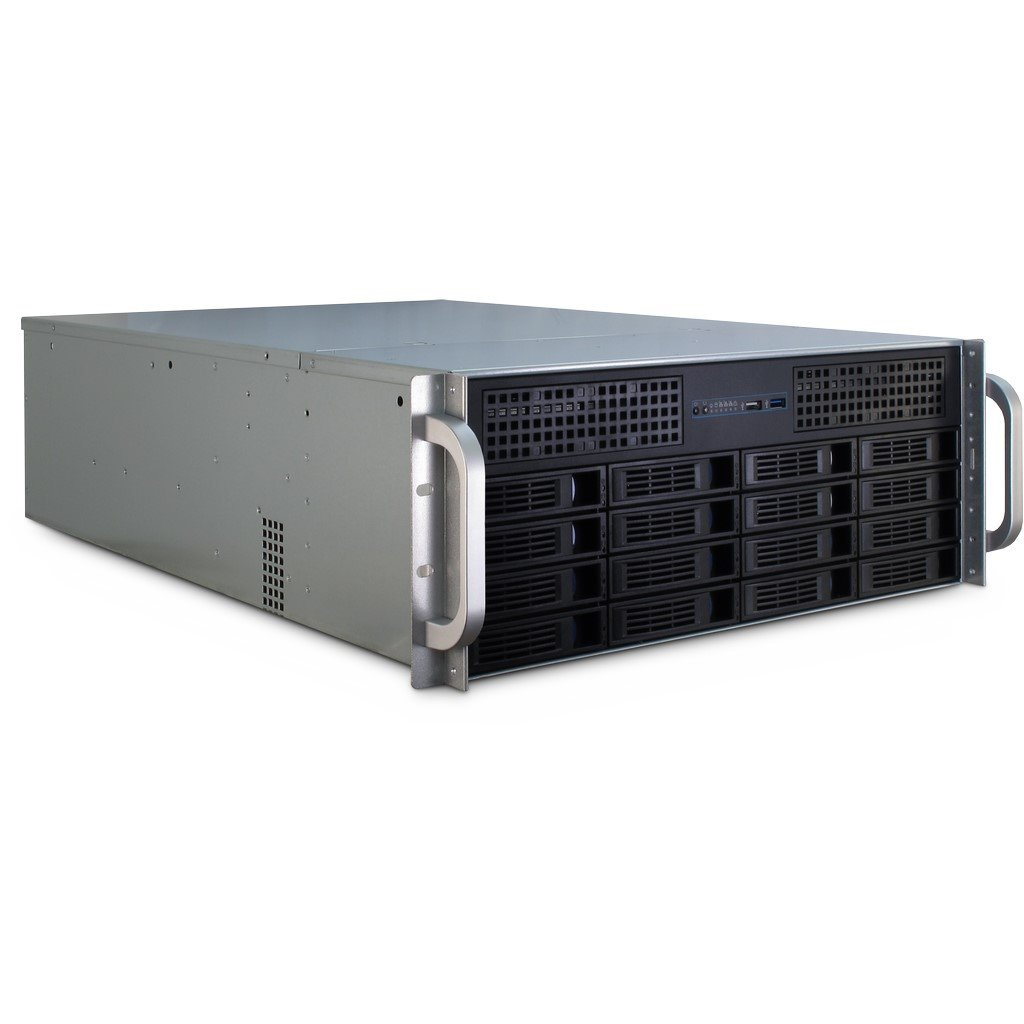

MOTHERBOARD Form factor Mini ITX, µATX, ATX, eATX, SSI EEB max. Motherboard size 305mm x 345mm (12" x 13.5") INSTALLATION DIMENSIONS Height CPU cooler (max.) 155mm Length graphics card (max.) 345mm DRIVE BAYS 5.25" external 2xą 5.25" external (slim) 3.5" or 2.5" external (Hot-Swap) 16x 3.5" internal 2xą 2.5" internal 8xą FRONT CONNECTORS USB 3.0 1x USB 2.0 1x POWER SUPPLY PS2/mini redundant PSU ATX PSU FAN MOUNTING OPTION Front 4x 40mm (optional) Inside 3x 120mm (serial, Molex connector, hot pluggable) Rear 2x 80mm (serial, Molex connector) CONTROLS & LED Controls Power-Switch Reset-Button LED Power HDD Activity 3x Network Activity Alert OTHER DATA S-ATA/SAS-Backplane + SFF-8087 (max. 12Gbit/s) Dimensions (h/w/d) 178 x 481 x 688mm Material 1.0-1.2mm Steel Warranty 24 months SCOPE OF DELIVERY & FEATURES Scope of delivery Case Retail packaging Screw set Mounting bracket for ATX (preassembled), 4HU redundant and 3HU triple redundant PSU Adapter for 2HU PSU + optional 80mm fan bracket Mounting bracket for diverse PSU Assembly tool Features 2x 80mm fan and 3x 120mm fan included (3x 120mm fan hot pluggable) Drive brackets removable USB 3.0 and USB 2.0 as block connector 4x Hot-Swap backplanes with one SFF-8087 socket each Important Note! LOGISTICAL DATA Shipping Unit 1 Pcs EU palett 14 Pcs Weight net = 15.14kgs gross = 17.73kgs Item number 88887120 EAN-Code 4260133126411
