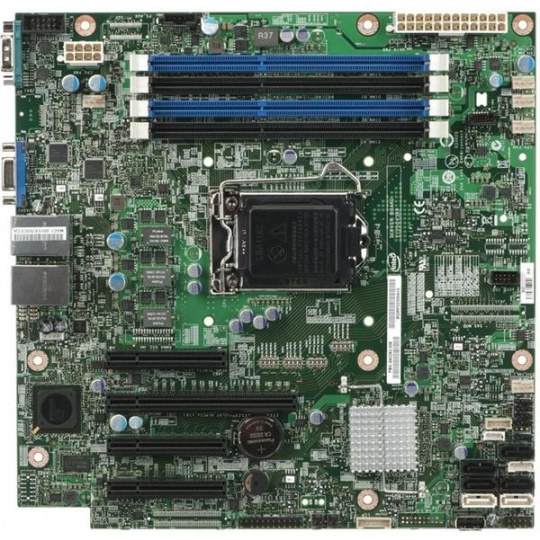

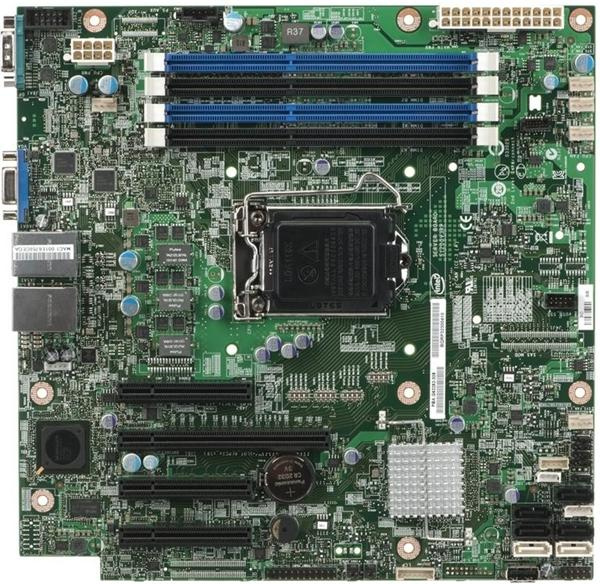

Limited 3-year Warranty Yes Extended Warranty Available for Purchase (Select Countries) Yes # of QPI Links 1 Board Form Factor uATX Chassis Form Factor Pedestal Socket LGA1150 Integrated Systems Available Yes Integrated BMC with IPMI Yes Rack-Friendly Board Yes Embedded Options Available No Max TDP 95 W Included Items Intel® Server Board S1200V3RPS with (4) SATA Cables, (1) Intel® Server Deployment & Management DVD, (1) attention document, (1) Quick Start User’s Guide Description Intel® Server Board S1200V3RPS with Intel® C222 chipset, supports 4 UDIMM sockets with two channel native 1600MHz Target Market Small Business/1st Server Additional Information URL Link Memory Specifications Max Memory Size (dependent on memory type) 32 GB Memory Types DDR3 ECC UDIMM 1333/1600 MT/s # of Memory Channels 2 Max Memory Bandwidth 25.6 GB/s # of DIMMs 4 ECC Memory Supported ‡ Yes Graphics Specifications Integrated Graphics ‡ Yes Graphics Output VGA Expansion Options PCI Express Revision 3.0 Max # of PCI Express Lanes 16 PCIe x8 Gen 3 1 PCIe x1 Gen 2.x 1 PCIe x4 Gen 2.x 1 PCIe x8 Gen 2.x 1 Connector for Intel® I/O Expansion Module 1 I/O Specifications USB Revision 3.0 & 2.0 # of USB Ports 4 Total # of SATA Ports 6 RAID Configuration Intel® RST (0, 1, 10, 5) # of Serial Ports 1 # of LAN Ports 2 Integrated LAN Dual 1GbE Embedded USB (eUSB) Solid State Drive Option Yes Package Specifications Max CPU Configuration 1 Low Halogen Options Available See MDDS Advanced Technologies Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes TPM Version TPM 1.2 Intel® Matrix Storage Technology Yes T Yes Intel® Server Customization Technology Yes Intel® Data Protection Technology AES New Instructions Yes QUICK LINKS Products formerly Rainbow Pass No Datasheet Available Additional Information Search Distributors Support Overview Search all of intel.com PCN/MDDS Information 927057: PCN All information provided is subject to change at any time, without notice. Intel may make changes to manufacturing life cy
