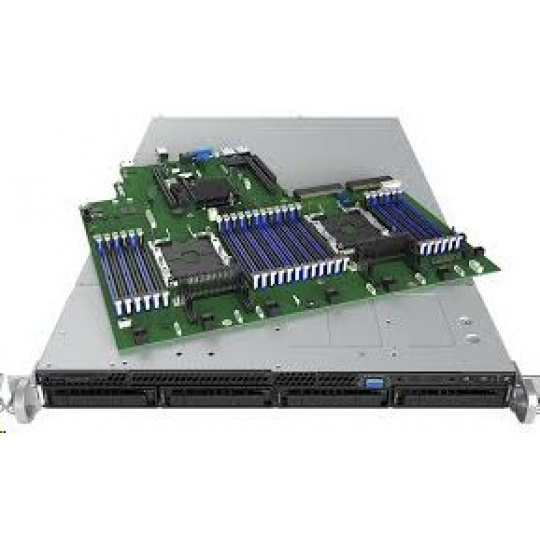

Popis produktu: Essentials Product Collection Intel® Server System R1000WF Family Code Name Products formerly Wolf Pass Launch Date Q3'17 Status Announced Expected Discontinuance 2H'20 Limited 3-year Warranty Yes Extended Warranty Available for Purchase (Select Countries) Yes Additional Extended Warranty Details Dual Processor System Extended Warranty Compatible Product Series Intel® Xeon® Scalable Processors Chassis Form Factor 1U Rack Chassis Dimensions 16.93" x 27.95" x 1.72" Board Form Factor Custom 16.7" x 17" Rack Rails Included No Socket Socket P System Board Intel® Server Board S2600WFT Board Chipset Intel® C624 Chipset Target Market Cloud/Datacenter Rack-Friendly Board Yes Power Supply 1100 W Power Supply Type AC # of Power Supply Included 1 Redundant Fans No Redundant Power Supported Supported, requires additional power supply Heat Sink (2) 1U Standard Heat Sink FXXCA78X108HS Heat Sink Included Yes Backplanes Included Included Items (1) Intel® Server Board S2600WFT (Dual 10GbE LAN) S2600WFT, (2) Riser card assembly with 1 slot PCIe x16 riser card F1UL16RISER3, (4) 3.5” Hot-swap drive bays with drive carriers and drive blanks: Includes (1) 12 Gb SAS backplane FR1304S3HSBP, (4) 3.5” hot swap drive tool less carriers FXX35HSCAR2, (1) Standard control panel assembly FXXFPANEL2, (1) Front I/O Panel assembly (VGA and 2 x USB), (1) 150mm Backplane I2C cable, (1) 850mm MiniSAS HD Cable AXXCBL850HDHRT, (1) 350mm Backplane power cable, (1) Air duct, (6) Dual rotor system fans FR1UFAN10PW, (8) DIMM slot blanks, (1) Chassis Stiffener Bar, (1) 1100W power supply module AXX1100PCRPS, (2) CPU heat sinks FXXCA78X108HS, (2) CPU heat sink “No CPU” Label inserts, (2) Standard CPU Carrier, (1) Power supply bay blank insert, (2) Chassis handle (1 set) installed A2UHANDLKIT3, (2) AC Power Cord retention strap assembly # of Front Drives Supported 4 Front Drive Form Factor Hot-swap 3.5" HDD or 2.5" SSD # of Internal Drives Supported 2 Internal Drive Form Factor M.2 SSD Recommended Customer Price N/A Supplemental Information Description Integrated 1U system featuring an Intel® Server Board S2600WFT with Dual 10GbE LAN, four 3.5 inch hot-swap drives, 24 DIMMs, one 1100W redundant-capable power supply, Intel® OCP Module for adding additional features without losing a PCIe add-in slot Additional Information URL View now Memory Specifications Memory Types Registered/Load Reduced DDR4-2133/2400/2666 MHz Max # of DIMMs 24 Expansion Options PCIe x24 Riser Super slot 2 Connector for Intel® I/O Expansion Module x8 Gen 3 1 Connector for Intel® Integrated RAID Module 1 Riser Slot 1: Included Slot Configuration(s) 1x PCIe Gen3 x16 Riser Slot 2: Included Slot Configuration(s) 1x PCIe Gen3 x16 I/O Specifications # of USB Ports 5 Total # of SATA Ports 10 RAID Configuration SW RAID 0, 1, 10, optional 5 # of Serial Ports 2 Integrated LAN 2x 10GbE # of LAN Ports 2 Package Specifications Max CPU Configuration 2 Advanced Technologies Intel® Optane™ Memory Supported ‡ Yes Intel® Remote Management Module Support Yes Integrated BMC with IPMI IPMI 2.0 with OEM extensions Intel® Node Manager Yes Intel® On-Demand Redundant Power Yes Intel® Advanced Management Technology Yes Intel® Server Customization Technology Yes Intel® Build Assurance Technology Yes Intel® Efficient Power Technology Yes Intel® Quiet Thermal Technology Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® Rapid Storage Technology enterprise Yes Intel® Quiet System Technology Yes Intel® Fast Memory Access Yes Intel® Flex Memory Access Yes Intel® Transparent Supply Chain TPM Version 2.0kych komponentov update BIOS+nastavenie RAID poli tj. finalna uprava .... 110EUR
