Part Number 02311BJJ
Model SFP-10G-iLR

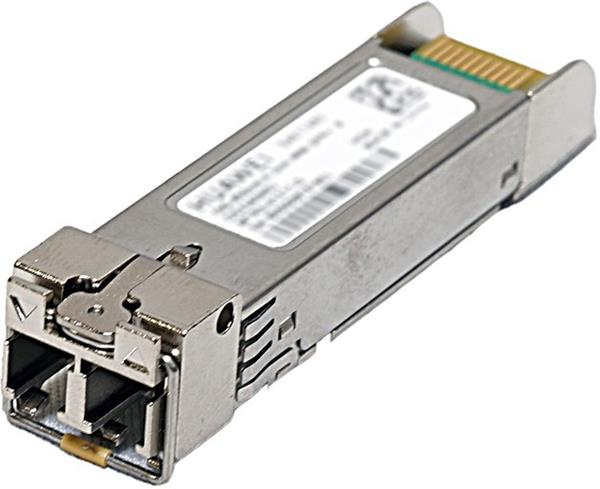

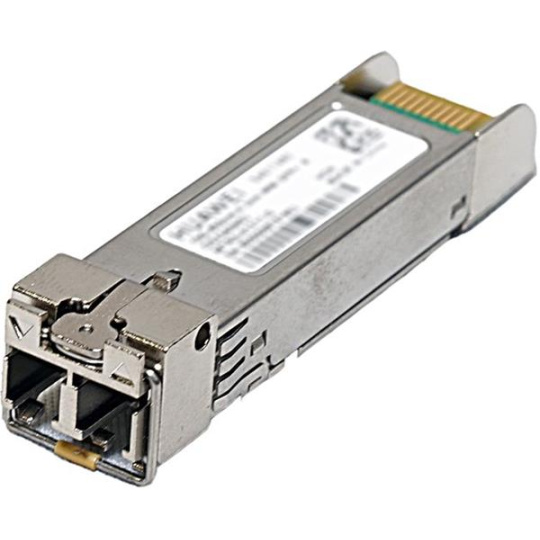

Description Optical Transceiver,SFP+,9.8G,Single-mode Module(1310nm,1.4km,LC)
Level-1 category 10GE SFP+ Optical Modules
Module name SFP-10G-iLR
Connector type LC/DLC
Optical fiber type SMF
Form factor SFP+
Transmission rate [bit/s] 10G
Target transmission distance [km] Single-mode fiber (G.652) (with diameter of 9 µm): 1.4 km
Application standard/Type 10GBASE-iLR
Working case temperature [°C(°F)] -40°C to +85°C (-40°F to +185°F)
Type of the end face of the fiber ceramic ferrule PC or UPC
DDM options Supported
Center wavelength [nm] 1310
Overload power (AVG) [dbm] 0.5
Minimum Tx optical power (AVG) [dbm] -8.2
Maximum Tx optical power (AVG) [dbm] 0.5
Minimum extinction ratio [db] 3.5
Rx sensitivity (OMA) [dbm] -14.4
