Part Number 02310CNF
Model OSX040N01

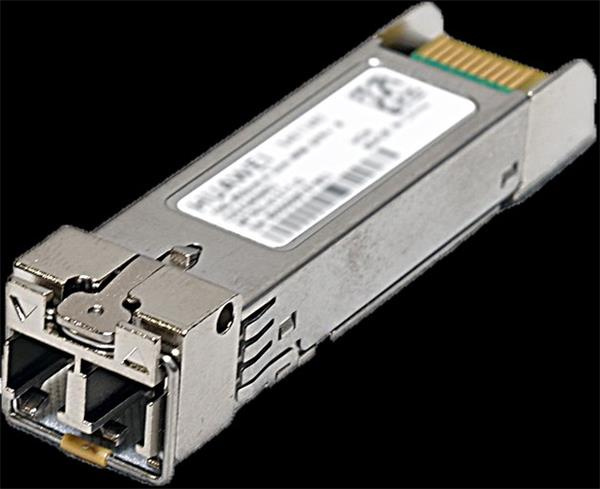

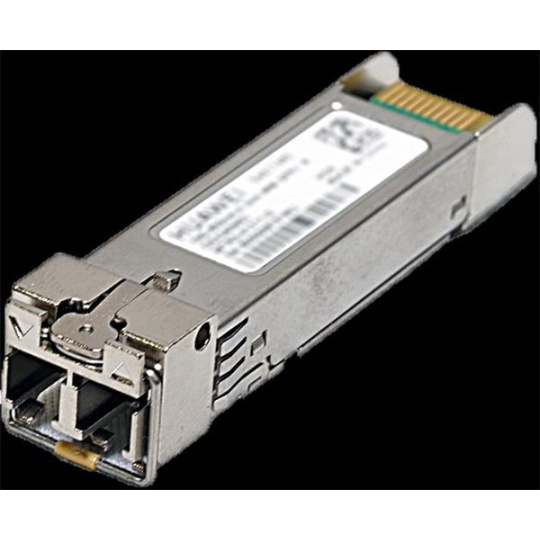

Description Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC)
Level-1 category 10GE SFP+ Optical Modules
Module name OSX040N01
Connector type LC/DLC
Optical fiber type SMF
Form factor SFP+
Transmission rate [bit/s] 10G
Target transmission distance [km] Single-mode fiber (G.652) (with diameter of 9 µm): 40 km
Application standard/Type 10GBASE-ER
Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F)
Type of the end face of the fiber ceramic ferrule PC or UPC
DDM options Supported
Center wavelength [nm] 1550
Overload power (AVG) [dbm] -1
Minimum Tx optical power (AVG) [dbm] -4.7
Maximum Tx optical power (AVG) [dbm] 4
Minimum extinction ratio [db] 3
Rx sensitivity (OMA) [dbm] -14.1
