Part Number 2318169
Model OMXD30000

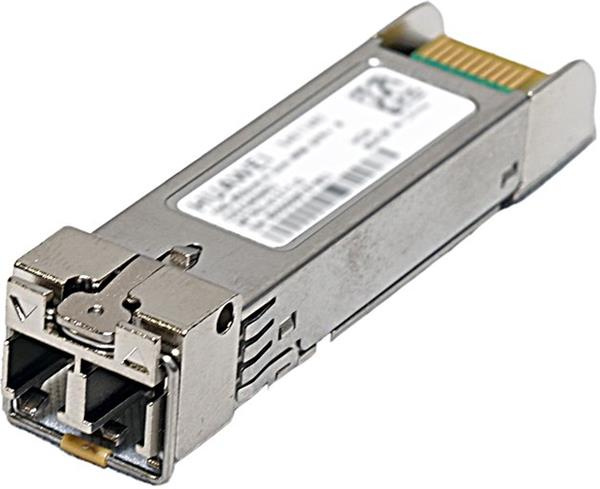

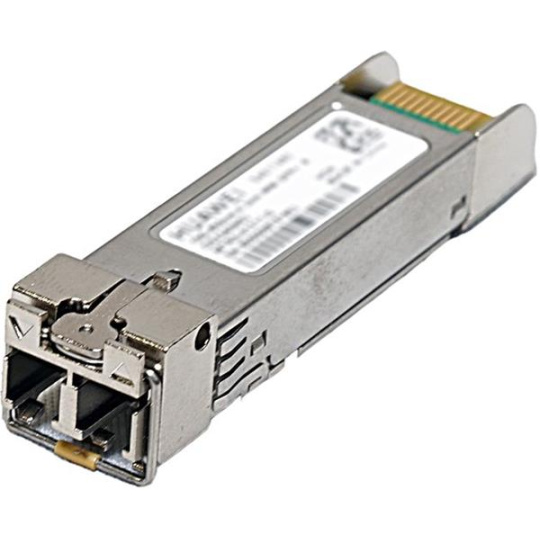

Description Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)
Level-1 category 10GE SFP+ Optical Modules
Module name OMXD30000
Connector type LC/DLC
Optical fiber type MMF
Form factor SFP+
Transmission rate [bit/s] 10G
Target transmission distance [km] Multimode fiber (with diameter of 62.5 µm): 26 m Multimode fiber (OM1) (with diameter of 62.5 µm): 33 m Multimode fiber (with diameter of 50 µm): 66 m Multimode fiber (OM2) (with diameter of 50 µm): 82 m Multimode fiber (OM3) (with diameter of 50 µm): 300 m Multimode fiber (OM4) (with diameter of 50 µm): 400 m
Application standard/Type 10GBASE-SR
Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F)
Type of the end face of the fiber ceramic ferrule PC or UPC
DDM options Supported
Modal bandwidth [MHz*km] Multimode fiber: 160 MHz*km Multimode fiber (OM1): 200 MHz*km Multimode fiber: 400 MHz*km Multimode fiber (OM2): 500 MHz*km Multimode fiber (OM3): 2000 MHz*km Multimode fiber (OM4): 4700 MHz*km
Center wavelength [nm] 850
Overload power (AVG) [dbm] -1
Minimum Tx optical power (AVG) [dbm] -7.3
Maximum Tx optical power (AVG) [dbm] -1
Minimum extinction ratio [db] 3
Rx sensitivity (OMA) [dbm] -11.1
