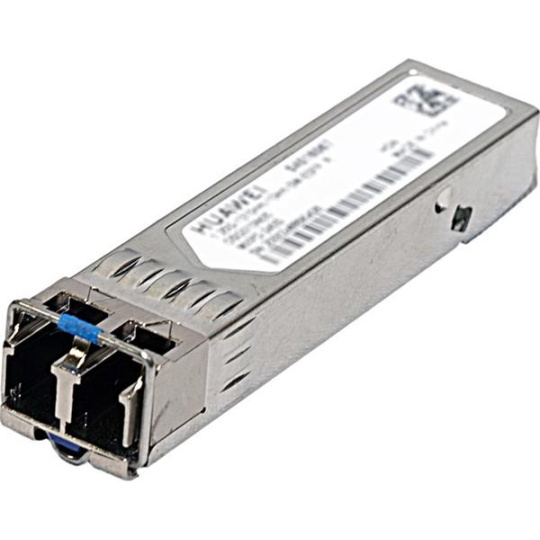

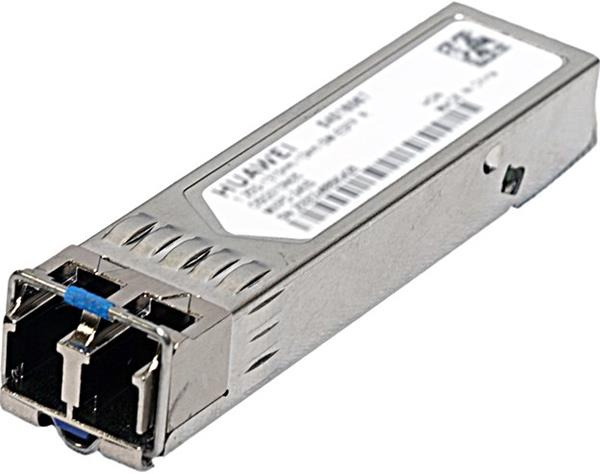

Huawei Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC)
Popis a parametre
Huawei Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC)
Part Number 2317347
Model S-SFP-GE-LH40-SM1550
Description Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC)
Level-1 category GE eSFP Optical Modules
Module name S-SFP-GE-LH40-SM1550
Connector type LC
Optical fiber type SMF
Form factor eSFP
Transmission rate [bit/s] 1 Gbit/s
Target transmission distance [km] Single-mode fiber: 40 km
Application standard Non-standard
Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F)
Center wavelength [nm] 1550
Overload power [dbm] -3
Minimum Tx optical power [dbm] -5
Maximum Tx optical power [dbm] 0
Minimum extinction ratio [db] 9
Rx sensitivity [dbm] -22
Model S-SFP-GE-LH40-SM1550
Description Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC)
Level-1 category GE eSFP Optical Modules
Module name S-SFP-GE-LH40-SM1550
Connector type LC
Optical fiber type SMF
Form factor eSFP
Transmission rate [bit/s] 1 Gbit/s
Target transmission distance [km] Single-mode fiber: 40 km
Application standard Non-standard
Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F)
Center wavelength [nm] 1550
Overload power [dbm] -3
Minimum Tx optical power [dbm] -5
Maximum Tx optical power [dbm] 0
Minimum extinction ratio [db] 9
Rx sensitivity [dbm] -22
Huawei Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC)
