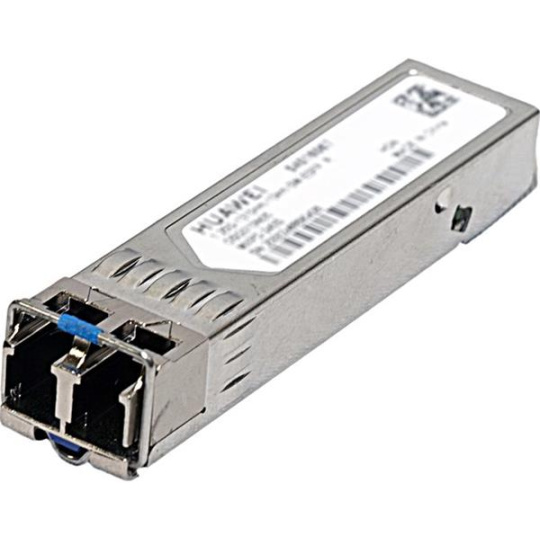

Huawei Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC)
Popis a parametre
Huawei Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC)
Part Number 2317346
Model S-SFP-GE-LH40-SM1310
Description Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC)
Level-1 category GE eSFP Optical Modules
Module name S-SFP-GE-LH40-SM1310
Connector type LC/DLC
Optical fiber type SMF
Form factor eSFP
Transmission rate [bit/s] 1G
Target transmission distance [km] Single-mode fiber (G.652) (with diameter of 9 µm): 40 km
Application standard/Type 1000BASE-EX
Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F)
Type of the end face of the fiber ceramic ferrule PC or UPC
DDM options Supported
Center wavelength [nm] 1310
Overload power (AVG) [dbm] -3
Minimum Tx optical power (AVG) [dbm] -5
Maximum Tx optical power (AVG) [dbm] 0
Minimum extinction ratio [db] 9
Rx sensitivity (OMA) [dbm] -23
Model S-SFP-GE-LH40-SM1310
Description Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC)
Level-1 category GE eSFP Optical Modules
Module name S-SFP-GE-LH40-SM1310
Connector type LC/DLC
Optical fiber type SMF
Form factor eSFP
Transmission rate [bit/s] 1G
Target transmission distance [km] Single-mode fiber (G.652) (with diameter of 9 µm): 40 km
Application standard/Type 1000BASE-EX
Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F)
Type of the end face of the fiber ceramic ferrule PC or UPC
DDM options Supported
Center wavelength [nm] 1310
Overload power (AVG) [dbm] -3
Minimum Tx optical power (AVG) [dbm] -5
Maximum Tx optical power (AVG) [dbm] 0
Minimum extinction ratio [db] 9
Rx sensitivity (OMA) [dbm] -23
Huawei Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC)
