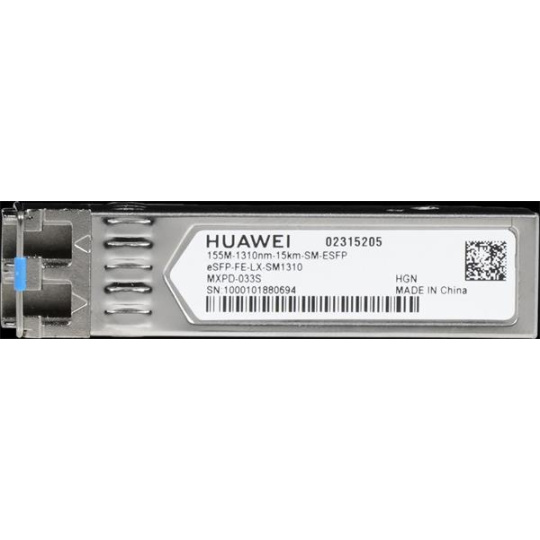

Description Optical Transceiver,eSFP,100M/155M,Single-mode Module(1310nm,15km,LC)
Part Number 2315205
Model eSFP-FE-LX-SM1310
Level-1 category FE SFP/eSFP Optical Modules
Module name eSFP-FE-LX-SM1310
Form factor eSFP
Application standard Non-standard
Connector type LC
Optical fiber type SMF
Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s] 100 Mbit/s
Target transmission distance [km] Single-mode fiber: 15 km
Center wavelength [nm] 1310
Maximum Tx optical power [dBm] -8
Minimum Tx optical power [dBm] -15
Minimum extinction ratio [dB] 8.2
Rx sensitivity (AVG) [dBm] -28
Overload power (AVG) [dBm] -8
