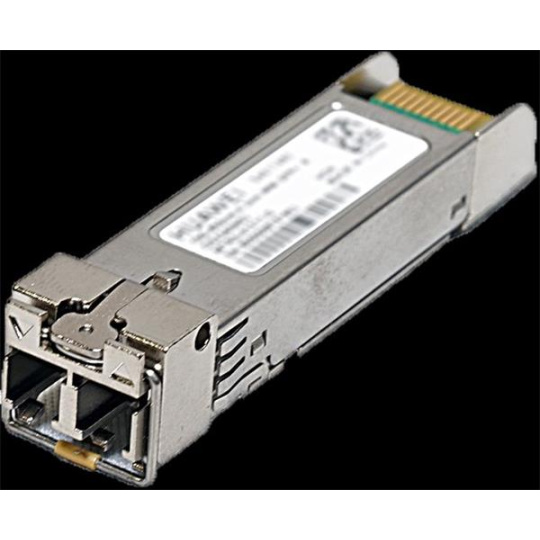

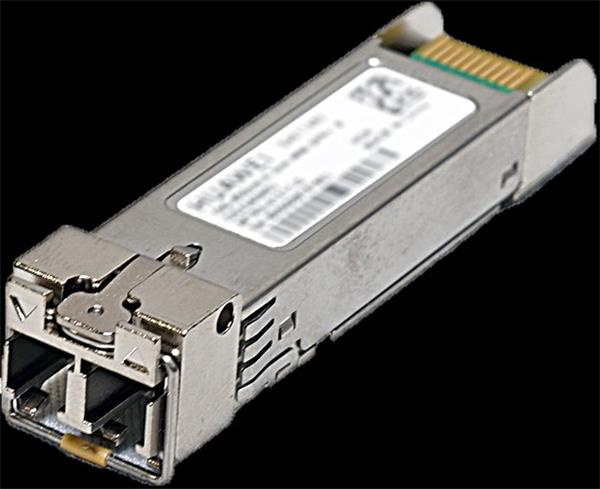

Description 10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC)
Part Number 02310MNW
Model SFP-10G-USR
Level-1 category 10GE SFP+ Optical Modules
Module name SFP-10G-USR
Form factor SFP+
Application standard 10GBASE-USR (non-standard)
Connector type LC
Optical fiber type MMF
Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s] 10 Gbit/s
Target transmission distance [km] Multimode fiber (OM3): 0.1 km
Center wavelength [nm] 850
Maximum Tx optical power [dBm] -1.0
Minimum Tx optical power [dBm] -7.3
Minimum extinction ratio [dB] 3.0
Rx sensitivity (AVG) [dBm] -10.7
Overload power (AVG) [dBm] 0.5
