CBW240AC

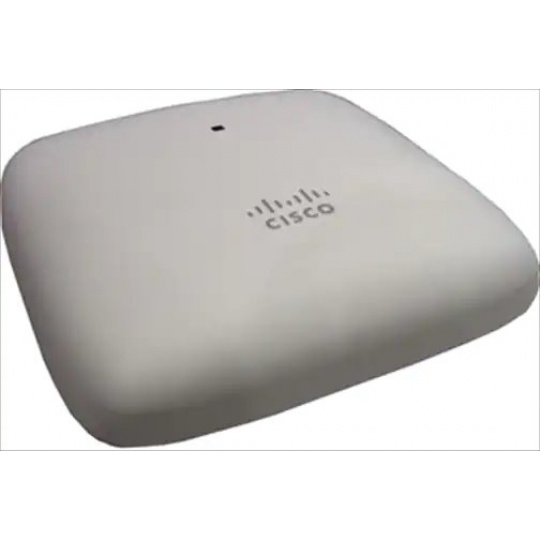

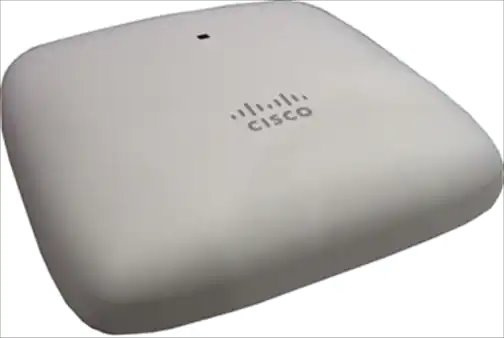

CBW240AC 802.11ac 4x4 Wave 2 Access Point Ceiling Mount


Prístupový bod Cisco® Business 240AC poskytuje ideálnu kombináciu predvídateľného výkonu v kompaktnej podobe. Táto platforma obsahuje funkcie protokolu 802.11ac Wave 2 a je ideálna pre malé a stredne veľké podnikové nasadenia.

Prístupový bod Cisco Business 240AC

Ideálny pre malé a stredné siete, prístupový bod Cisco Business 240AC poskytuje špičkový výkon v podnikovej triede 4x4 viacužívateľský viacnásobný vstup viacnásobný výstup (MU-MIMO), štyri prístupové body priestorového toku, ktoré podporujú Institute of Štandard elektrických a elektronických inžinierov (IEEE) 802.11ac Wave 2. Prístupový bod Cisco Business 240AC rozširuje podporu o novú generáciu klientov Wi-Fi, ako sú napríklad smartphony, tablety a vysokovýkonné notebooky, ktoré majú integrovanú podporu 802.11ac Wave 1 alebo Wave 2.

Item

Specification

Authentication and security

? Wi-Fi Protected Access 2 (WPA2 ); WPA3 is coming in a future release
? 802.1X, Remote Authentication Dial-In User Service (RADIUS); Authentication, Authorization, and Accounting (AAA)
? Segmentation via VLANs (up to 16)
? 802.11r and 802.11i
? Guest network can also authenticate against: Google and Facebook
Maximum clients

? Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point, or 1000 in a system
Maximum # of access points

? 50
? Recommended up to 25
Ma Max # of mesh extenders

? Maximum number of associated Cisco Business mesh extenders: 25 per access point, up to 8 hops
802.11ac

? 4x4 Downlink (DL) MU-MIMO with four spatial streams, up to 1733 Mbps
? 802.11ac beamforming
? 20, 40, 80 MHz channels
? Dynamic Frequency Selection (DFS)
Integrated antenna

? 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional
? 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional
Ethernet ports

? Authentication with 802.1X or MAC filtered
? Dynamic VLAN or per port
Interfaces

? 2 x Gigabit (10/100/1000BASE-T autosensing), Power over Ethernet (PoE)
? RJ-45 console port (not functional)
? USB 2.0 (not functional)
Indicators

? Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)

? Access point (without mounting brackets): 7 x 7 x 1.5 in
Weight

? 0.94 lb (0.43 kg)
Powering options

? 802.3af/at Ethernet switch, a Cisco Business Switch with PoE is recommended
? Optional Cisco Business Power over Ethernet injector (CB-PWRINJ-xx)
Power draw

? 13.2W
Environmental

? Nonoperating (storage) temperature: —22° to 158°F (—30° to 70°C)
? Nonoperating (storage) altitude test: 25°C, 15,000 ft
? Operating temperature: 32° to 122°F (0° to 50°C)
? Operating humidity: 10% to 90% (noncondensing)
? Operating altitude test: 40°C, 9843 ft
Note: When ambient operating temperature exceeds 40°C, then the radio transmit duty cycle may be limited to not greater than 50%.

System memory

1GB MB DRAM, 256 MB flash

Warranty

Cisco Business Limited lifetime hardware warranty

Free software updates, no service contract required

Available transmit power settings3

2.4 GHz

? Up to 20 dBm
5 GHz

? Up to 23 dBm
Frequency band and 20-MHz operating channels

A (A regulatory domain):

? 2.412 to 2.462 GHz; 11 channels
? 5.180 to 5.320 GHz; 8 channels
? 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
? 5.745 to 5.825 GHz; 5 channels
B (B regulatory domain):

? 2.412 to 2.462 GHz; 11 channels
? 5.180 to 5.320 GHz; 8 channels
? 5.500 to 5.700 GHz; 11 channels
? 5.745 to 5.865 GHz; 7 channels
C (C regulatory domain):

? 2.412 to 2.472 GHz; 13 channels
? 5.745 to 5.825 GHz; 5 channels
D (D regulatory domain):

? 2.412 to 2.462 GHz; 11 channels
? 5.180 to 5.320 GHz; 8 channels
? 5.745 to 5.825 GHz; 5 channels
E (E regulatory domain):

? 2.412 to 2.472 GHz; 13 channels
? 5.180 to 5.320 GHz; 8 channels
? 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
F (F regulatory domain):

? 2.412 to 2.472 GHz; 13 channels
? 5.745 to 5.805 GHz; 4 channels
G (G regulatory domain):

? 2.412 to 2.472 GHz; 13 channels
? 5.745 to 5.865 GHz; 7 channels
H (H regulatory domain):

? 2.412 to 2.472 GHz; 13 channels
? 5.180 to 5.320 GHz; 8 channels
? 5.745 to 5.825 GHz; 5 channels
I (I regulatory domain):

? 2.412 to 2.472 GHz; 13 channels
? 5.180 to 5.320 GHz; 8 channels
K (K regulatory domain):

? 2.412 to 2.472 GHz; 13 channels
? 5.180 to 5.320 GHz; 8 channels
? 5.500 to 5.620 GHz; 7 channels
? 5.745 to 5.805 GHz; 4 channels
N (N regulatory domain):

? 2.412 to 2.462 GHz; 11 channels
? 5.180 to 5.320 GHz; 8 channels
? 5.745 to 5.825 GHz; 5 channels
Q (Q regulatory domain):

? 2.412 to 2.472 GHz; 13 channels
? 5.180 to 5.320 GHz; 8 channels
? 5.500 to 5.700 GHz; 11 channels
R (R regulatory domain):

? 2.412 to 2.472 GHz; 13 channels
? 5.180 to 5.320 GHz; 8 channels
? 5.660 to 5,825 GHz; 8 channels (excludes 5.700 to 5.745 GHz)
S (S regulatory domain):

? 2.412 to 2.472 GHz; 13 channels
? 5.180 to 5.320 GHz; 8 channels
? 5.500 to 5.700 GHz; 11 channels
? 5.745 to 5.825 GHz; 5 channels
T (T regulatory domain):

? 2.412 to 2.462 GHz; 11 channels
? 5.180 to 5.320 GHz; 3 channels
? 5.500 to 5.700 GHz; 12 channels
? 5.745 to 5.825 GHz; 5 channels
Z (Z regulatory domain):

? 2.412 to 2.462 GHz; 11 channels
? 5.180 to 5.320 GHz; 8 channels
? 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
? 5.745 to 5.825 GHz; 5 channels
Note: Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, visit https://www.cisco.com/go/aironet/compliance.

Maximum number of nonoverlapping channels

2.4 GHz

? 802.11b/g:
? 20 MHz: 3

? 802.11n:
? 20 MHz: 3

5 GHz

? 802.11a:
? 20 MHz: 26 FCC, 16 EU

? 802.11n:
? 20 MHz: 26 FCC, 16 EU

? 40 MHz: 12 FCC, 7 EU

? 802.11ac:
? 20 MHz: 26 FCC, 16 EU

? 40 MHz: 12 FCC, 7 EU

? 80 MHz: 5 FCC, 3 EU

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.

Compliance standards

? Safety:
? IEC 60950-1

? EN 60950-1

? AS/NZS 60950.1

? UL 60950-1

? CAN/CSA-C22.2 No. 60950-1

? UL 2043

? Class III Equipment

? EMC/EMI:
Emissions:

? CISPR 32 (rev. 2015)

? EN 55032 (rev. 2012/AC:2013)

? EN 55032 (rev. 2015)

? EN61000-3-2 (rev. 2014)

? EN61000-3-3 (rev. 2013)

? KN61000-3-2

? KN61000-3-3

? AS/NZS CISPR 32 Class B (rev. 2015)

? 47 CFR FCC Part 15B

? ICES-003 (rev. 2016 Issue 6, Class B)

? VCCI (V3)

? CNS (rev. 13438)

? KN-32

? TCVN 7189 (rev. 2009)

Immunity:

? CISPR 24 (rev. 2010)

? EN 55024 / EN 55035 (rev. 2010)

Emissions and Immunity:

? EN 301 489-1 (v2.1.1 2017-02)

? EN 301 489-17 (v3.1.1 2017-02)

? QCVN (18:2014)

? KN 489-1

? KN 489-17

? EN 60601 (1-1:2015)

? Radio:
? EN 300 328 (v2.1.1)

? EN 301 893 (v2.1.1)

? AS/NZS 4268 (rev. 2017)

? 47 CFR FCC Part 15C, 15.247, 15.407

? RSP-100

? RSS-GEN

? RSS-247

? China regulations: State Radio Regulation of China (SRRC)

? LP0002 (rev 2018.1.10)

? Japan Std. 33a, Std. 66, and Std. 71

? RF Safety:
? EN 50385 (rev. Aug 2002)

? Australian Radiation Protection and Nuclear Safety Agency (ARPANSA)

? AS/NZS 2772 (rev. 2016)

? EN 62209-1 (rev. 2016)

? EN 62209-2 (rev. 2010)

? 47 CFR Part 1.1310 and 2.1091

? RSS-102

? IEEE standards:
? IEEE 802.3

? IEEE 802.3ab

? IEEE 802.3af/at

? IEEE 802.11 a/b/g/n/ac

? IEEE 802.11h, 802.11d

? Energy efficiency:
? Reg. 278/2009 EuP Lot 7, Tier 1 4/27/2010, Tier 2 4/27/2010 Level V

? Reg. 1275/2008 EuP Lot 6, Tier 1 1/7/2010, Tier 2 4/27/2013. Applies to EMC Class B products

? EISA 2007, Level V

? NRCan Level V

? AS/NZS 4665.2, MEPS Level V

? China Energy Conservation Program (CECP) Level V

? Security:
? 802.11i, Wi-Fi Protected Access 2 (WPA2), WAP3 (future), WPA

? 802.1X

? Advanced Encryption Standards (AES)

? Extensible Authentication Protocol (EAP) types:
? EAP-Transport Layer Security (TLS)

? EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)

? Protected EAP (PEAP) v0 or EAP-MSCHAPv2

? EAP-Flexible Authentication via Secure Tunneling (EAP-FAST)

? PEAP v1 or EAP-Generic Token Card (GTC)

? EAP-Subscriber Identity Module (SIM)

Data rates supported

802.11b: 1, 2, 5.5, and 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

802.11n data rates on 2.4 GHz and 5GHz: 6.5 to 600Mbps (only 20 MHz and MCS 0 to MCS 15)

802.11ac data rates (5 GHz): 6.5 to 1733Mbps (MCS0-MCS9)
